Home >> Ford >> 2004 >> Mustang V6-3.9L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> Fog/Driving Lamp Relay >> Fog Lamp Cut-Off Relay

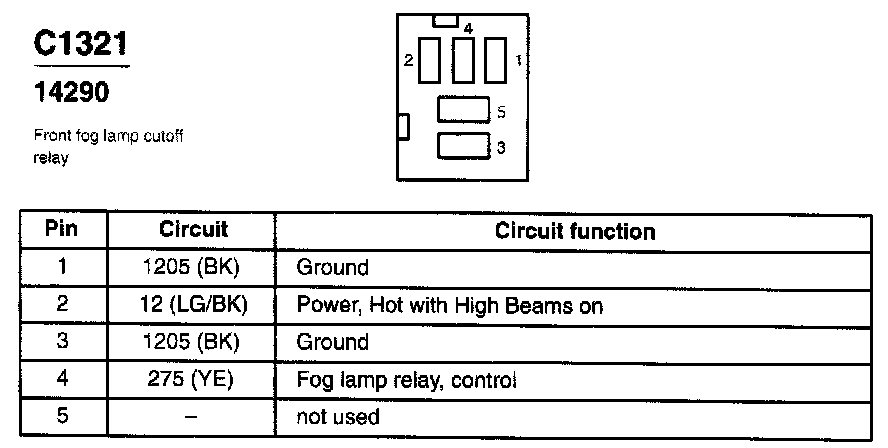

Fog Lamp Cut-Off Relay
