Home >> Ford >> 2005 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-38 (Cable Assembly, Battery to Ground)

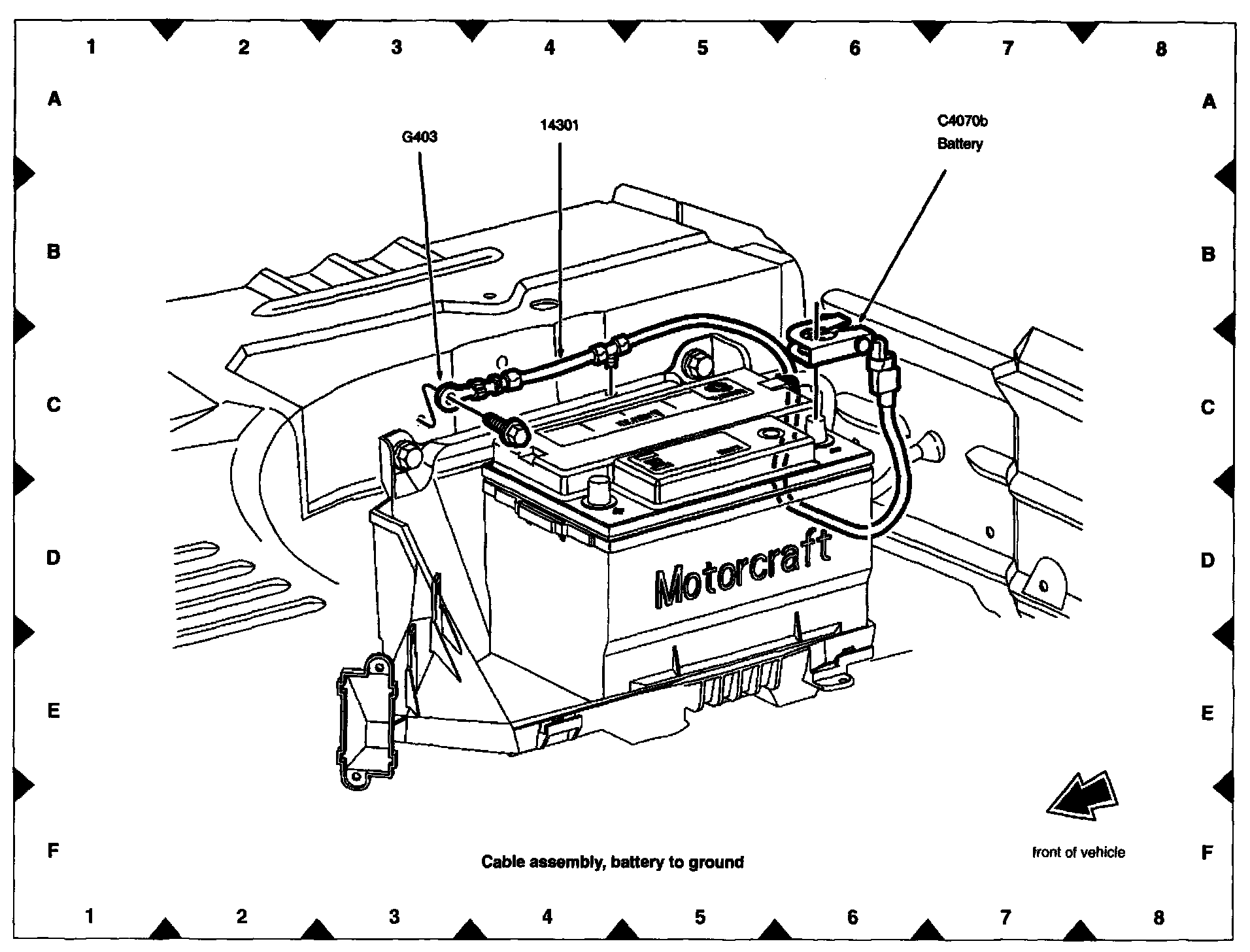

View 151-38 (Cable Assembly, Battery to Ground)

View 151-38 (Cable Assembly, Battery To Ground):
