Home >> Ford >> 2005 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Grounds >> View 151-11 (Fender, Right Front)

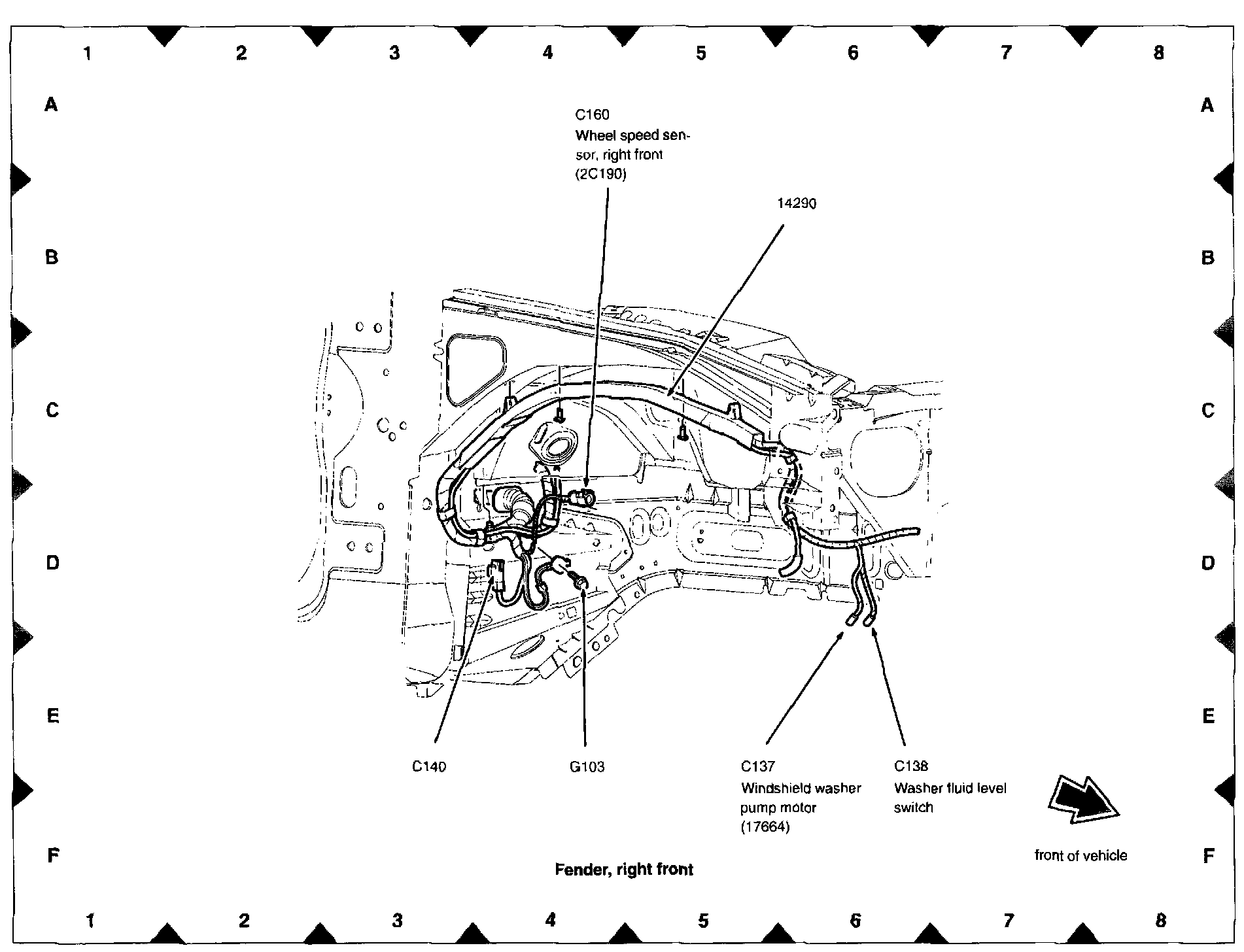

View 151-11 (Fender, Right Front)

View 151-11 (Fender, Right Front):
