Clutch Hydraulic System: Service and Repair

Clutch System Bleeding

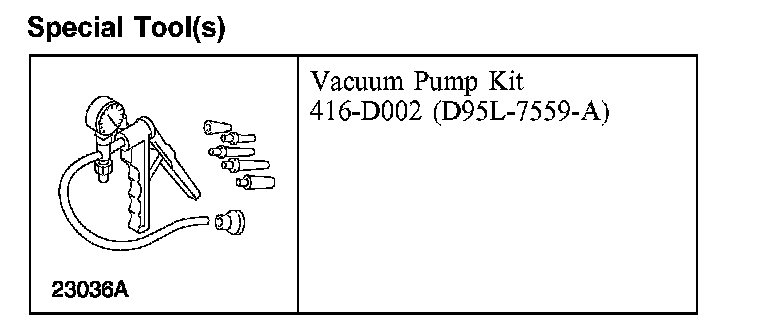

Special Tool(s):

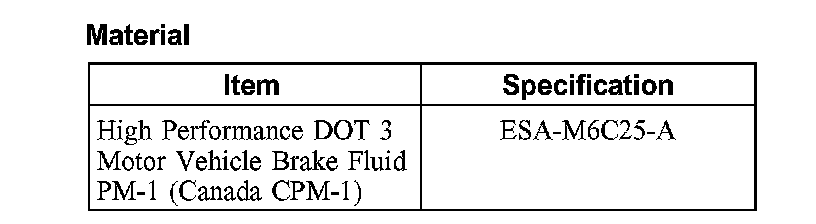

Material:

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the eyes. Wash hands thoroughly after handling. If brake fluid contacts the eyes, flush the eyes for 15 minutes with cold running water. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: If brake fluid is split on the paint work, the affected area must be immediately washed down with cold water.

NOTE: Do not reuse brake fluid.

1. Remove the brake fluid reservoir cap.

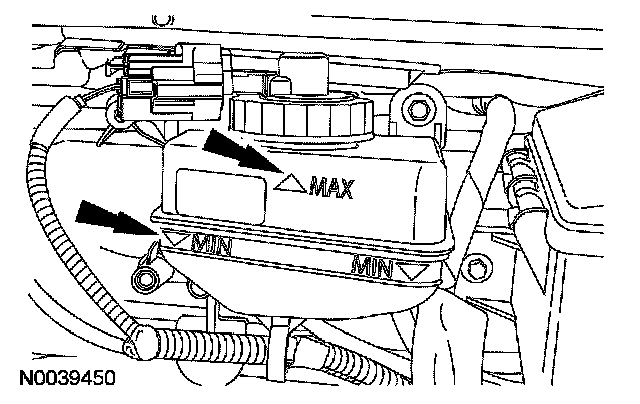

2. Drain the brake fluid reservoir to the MIN mark.
3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
4. Remove the clutch slave cylinder bleed nipple dust cap.

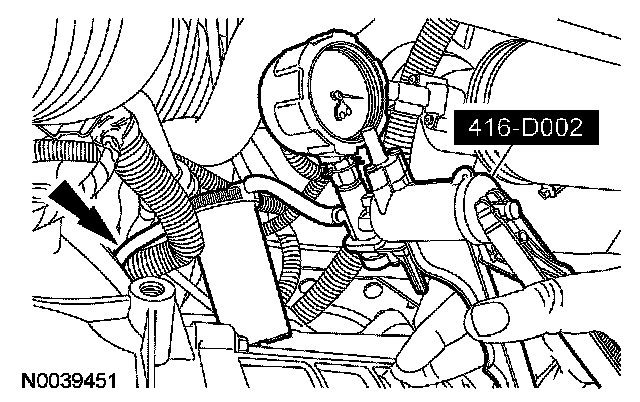

5. Using the special tool, bleed the clutch system.
1 Fill the reservoir of the special tool with approximately 120 ml of brake fluid.
2 Connect the reservoir hose to the clutch slave cylinder bleed nipple.

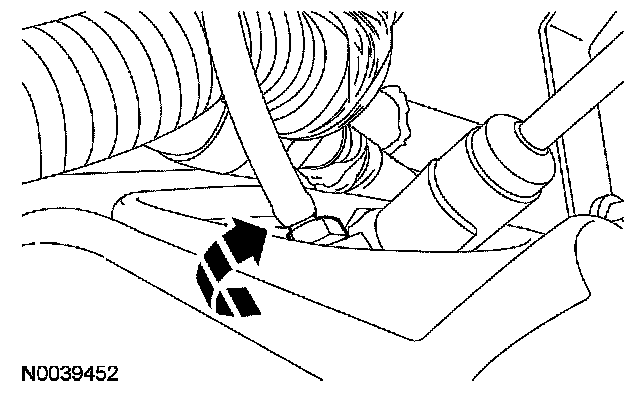

3 Loosen the clutch slave cylinder bleed nipple.
4 Pump approximately 100 ml of brake fluid into the clutch system.





6. Tighten the clutch slave cylinder bleed nipple to 21 Nm (15 ft. lbs.).





7. Remove the special tool.
8. Install the clutch slave cylinder bleed nipple dust cap.
9. Install the brake fluid reservoir cap.





10. Check the fluid level in the brake fluid reservoir and add as necessary.

11. NOTE: Engage the reverse gear carefully.

Test the functionality of the clutch control system.
^ Start the engine, after 2 seconds depress the clutch pedal, carefully engage the reverse gear. If there are abnormal noises, bleed the clutch control system automatically by depressing the clutch pedal 4 or 5 times. During bleeding, full travel of the clutch pedal must be reached.
^ Test the functionality of the clutch control system again after 30 seconds. If there are still abnormal noises carry out Steps 4 to 11 again.
