Mustang V8-4.6L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C4114-C9013
>>
C4159A
C4159A

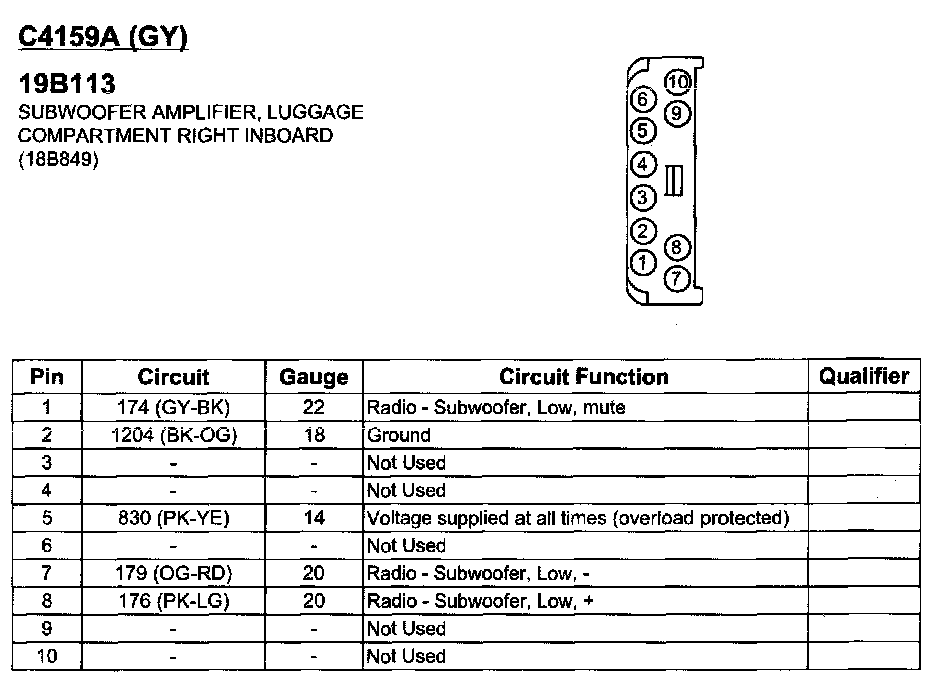

C4159A:

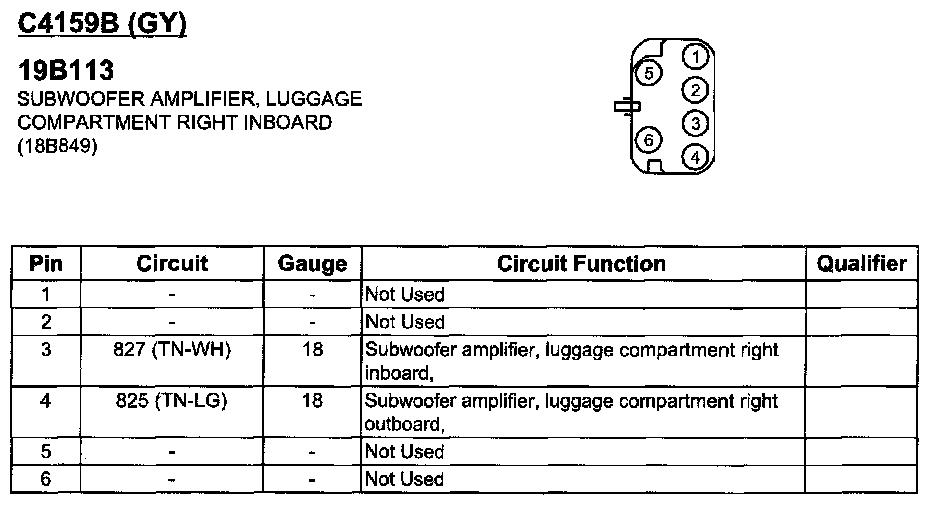

C4159B:
