Stabilizer Bushing: Service and Repair

Stabilizer Bar Bushing

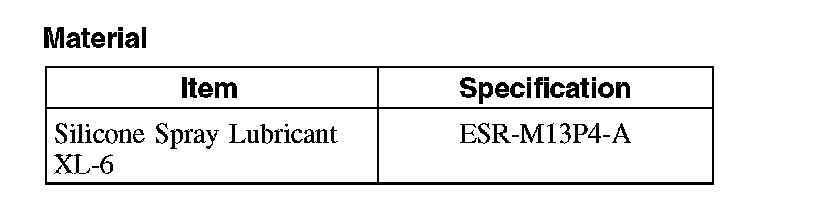

Material:

Removal and Installation
1. Remove the stabilizer bar.

2. NOTE: To aid removal, apply a light coat of lubricant to the necessary parts of the front stabilizer bar.

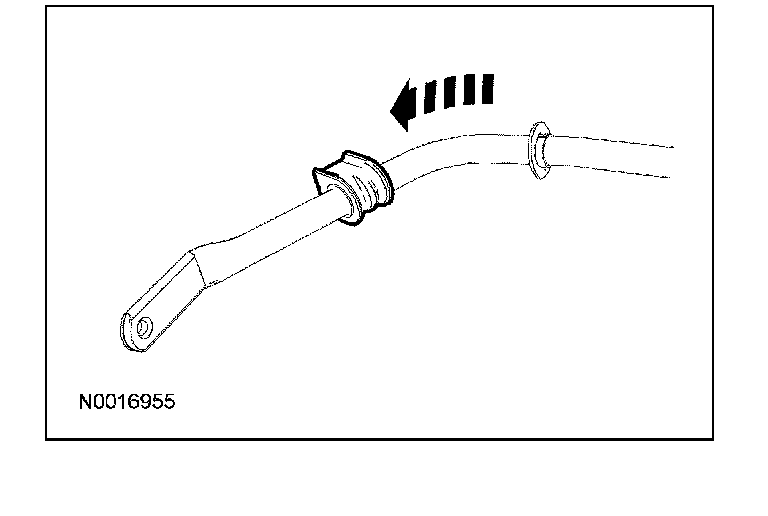

Remove the stabilizer bar bushing by sliding it off the stabilizer bar.








3. NOTE: To aid installation, apply a light coat of lubricant to the necessary parts of the front stabilizer bar and the inside diameter of the stabilizer bar bushing.

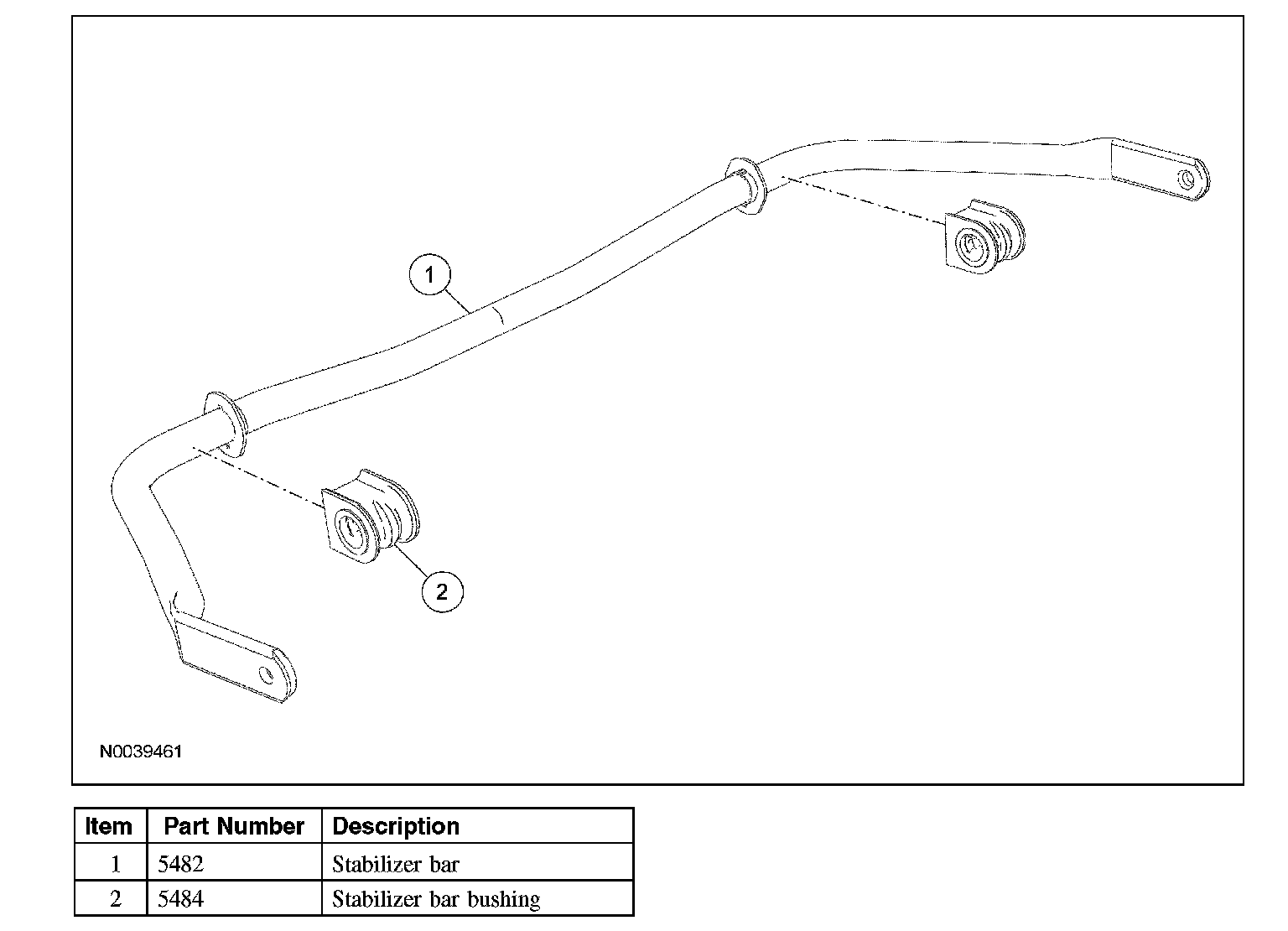

To install, reverse the removal procedure.
