Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations

Instrument Cluster / Carrier: Locations

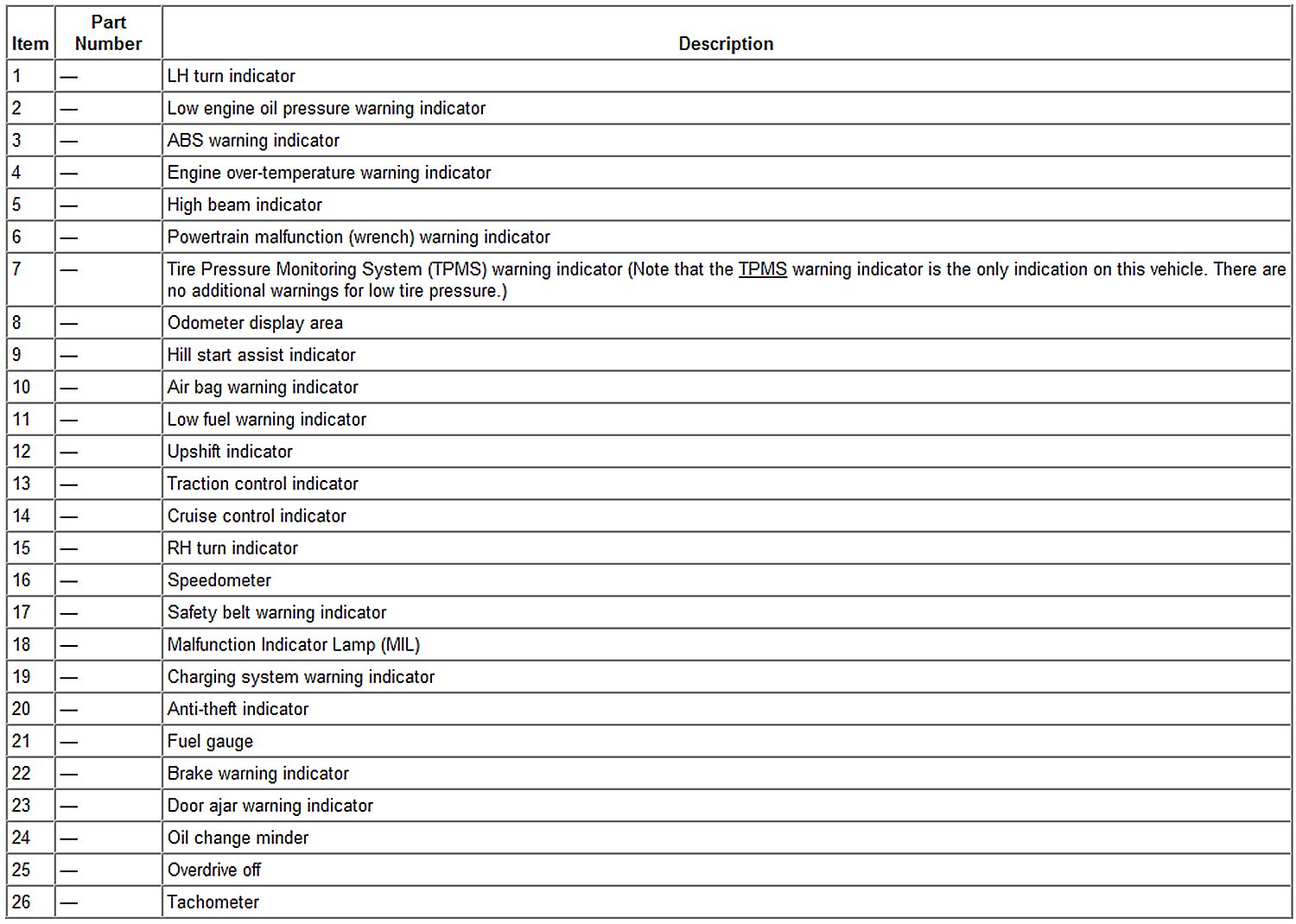

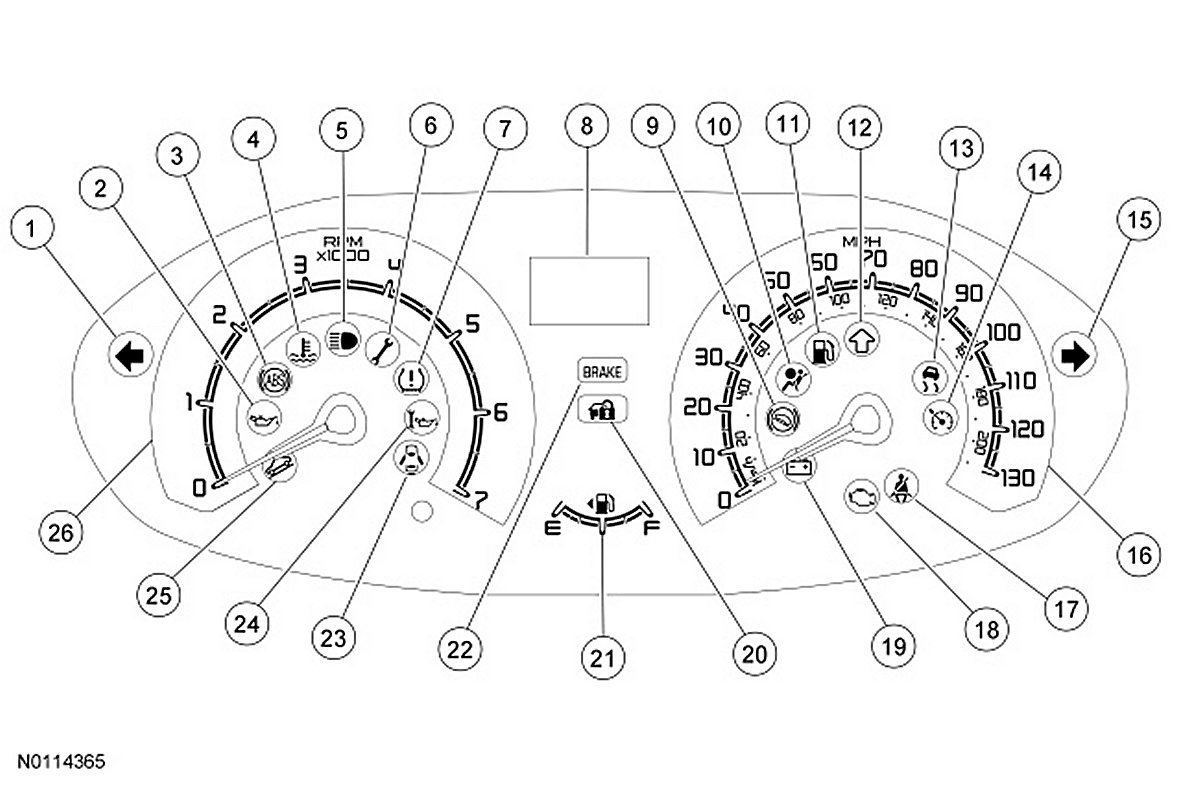

Instrument Panel Cluster (IPC):
