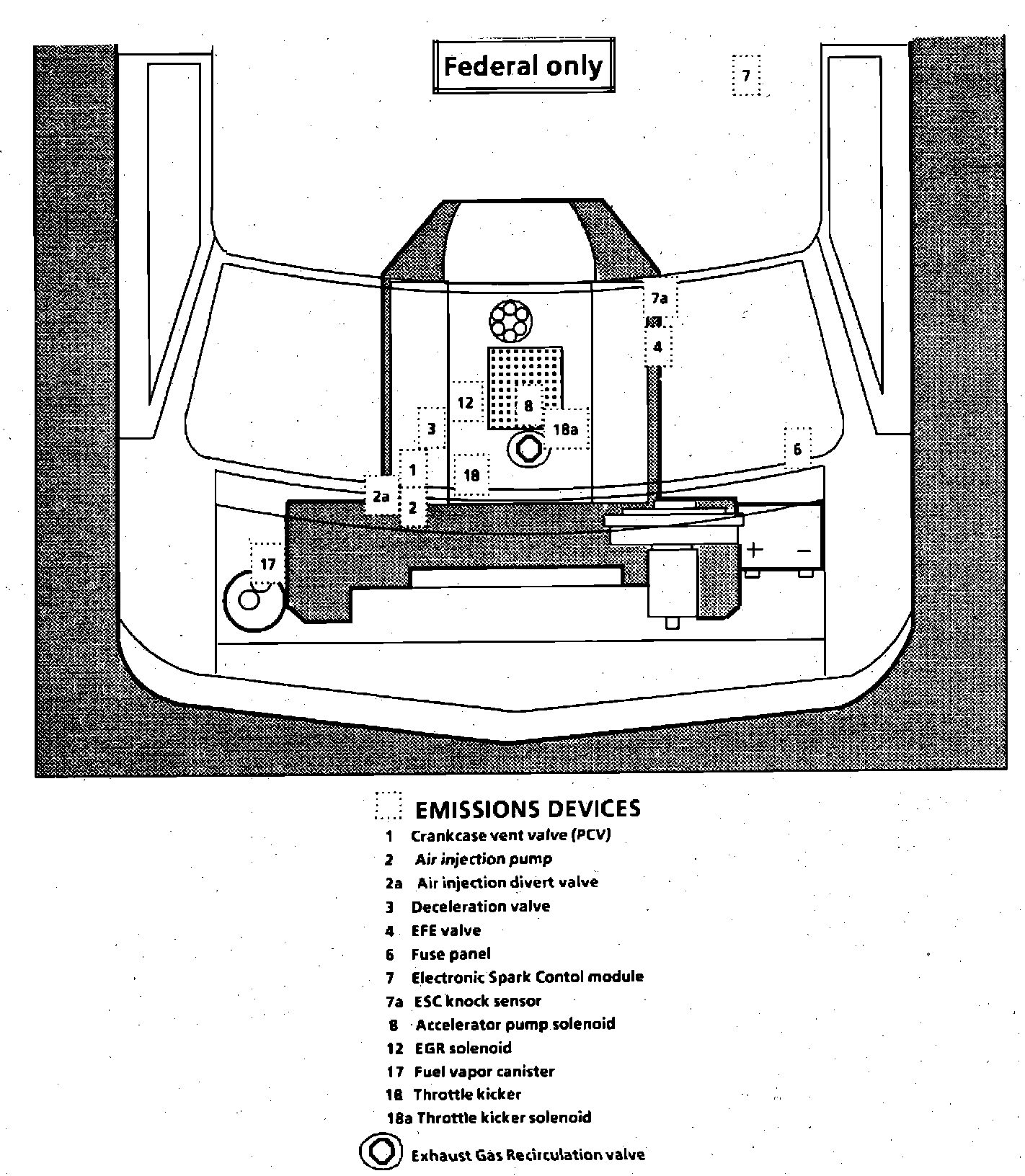

Federal Models

Underhood & Engine Components:




Under Driver's Seat

Applicable to: 1985 G Series w/4.3L Except California
