Data Link Connector
>>
Locations
>>
Federal Emissions
Federal Emissions

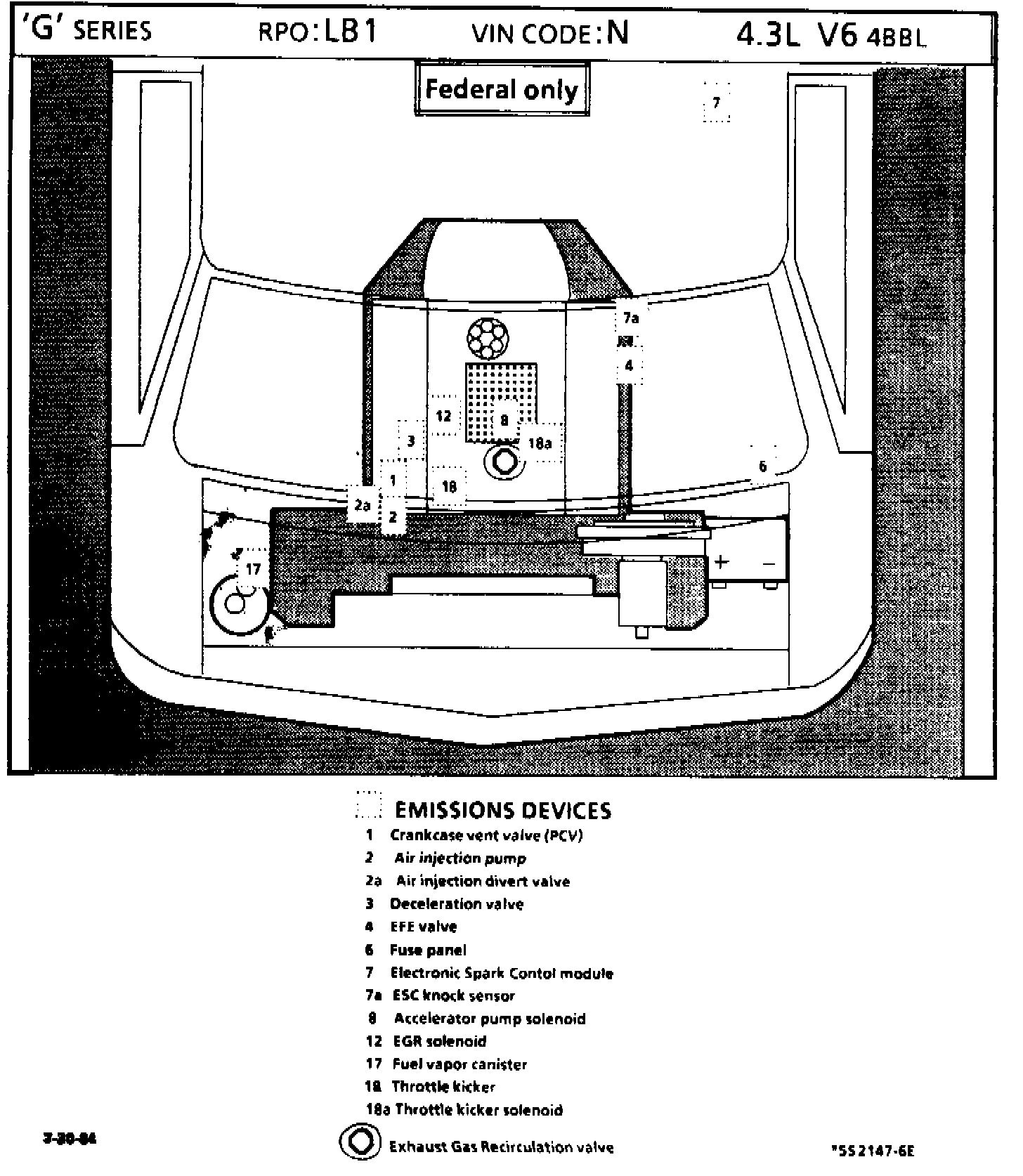

Figure 4 Component Locations - 4.3L (G Series) - Federal:
