Check Valve

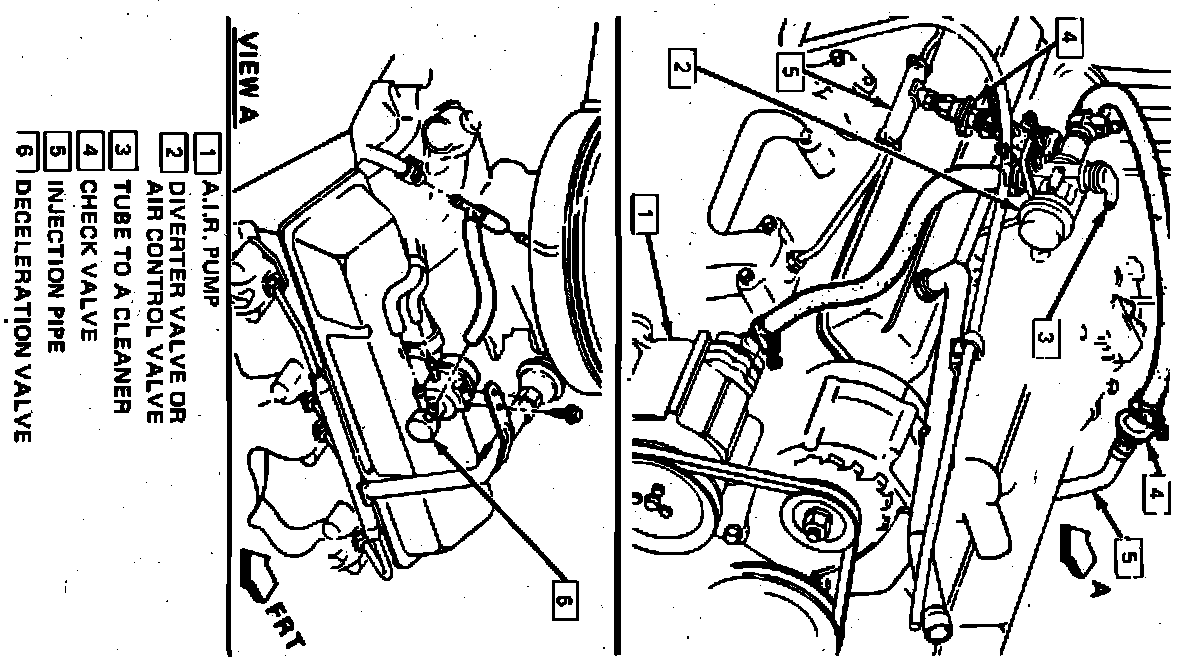

Check Valve
LH & RH Sides Of Engine.:
On Injection Tubes
Applicable to: 1985 V8 & Light Duty Emissions
