Transfer Case Shift Control Module X1



Transfer Case Shift Control Module X1

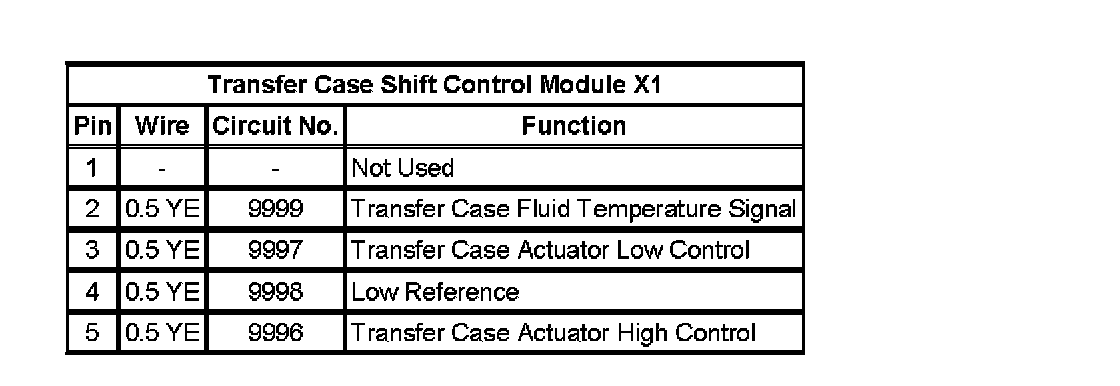

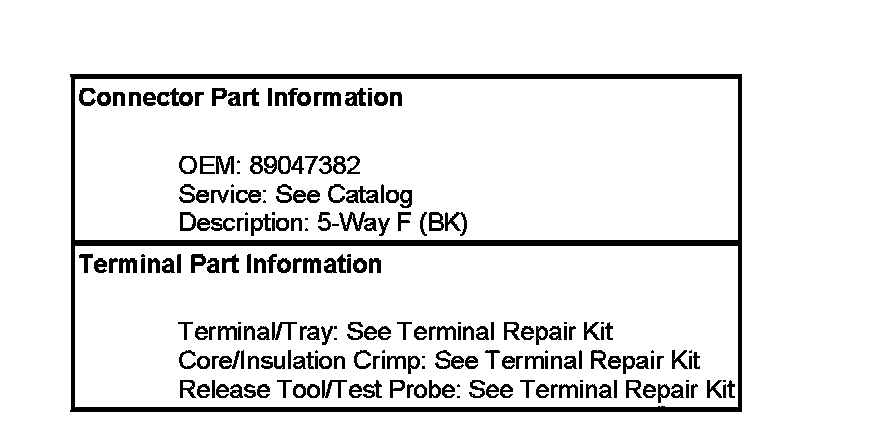

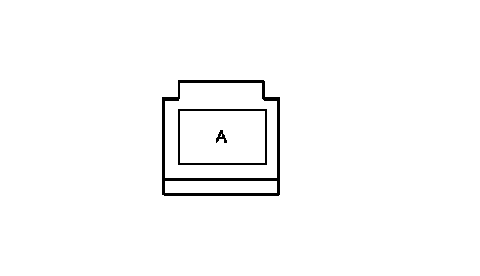

Transfer Case Shift Control Module X1:
