HVAC Component Views

Front of the Condenser




1 - Front Fascia
2 - Ambient Temperature Sensor

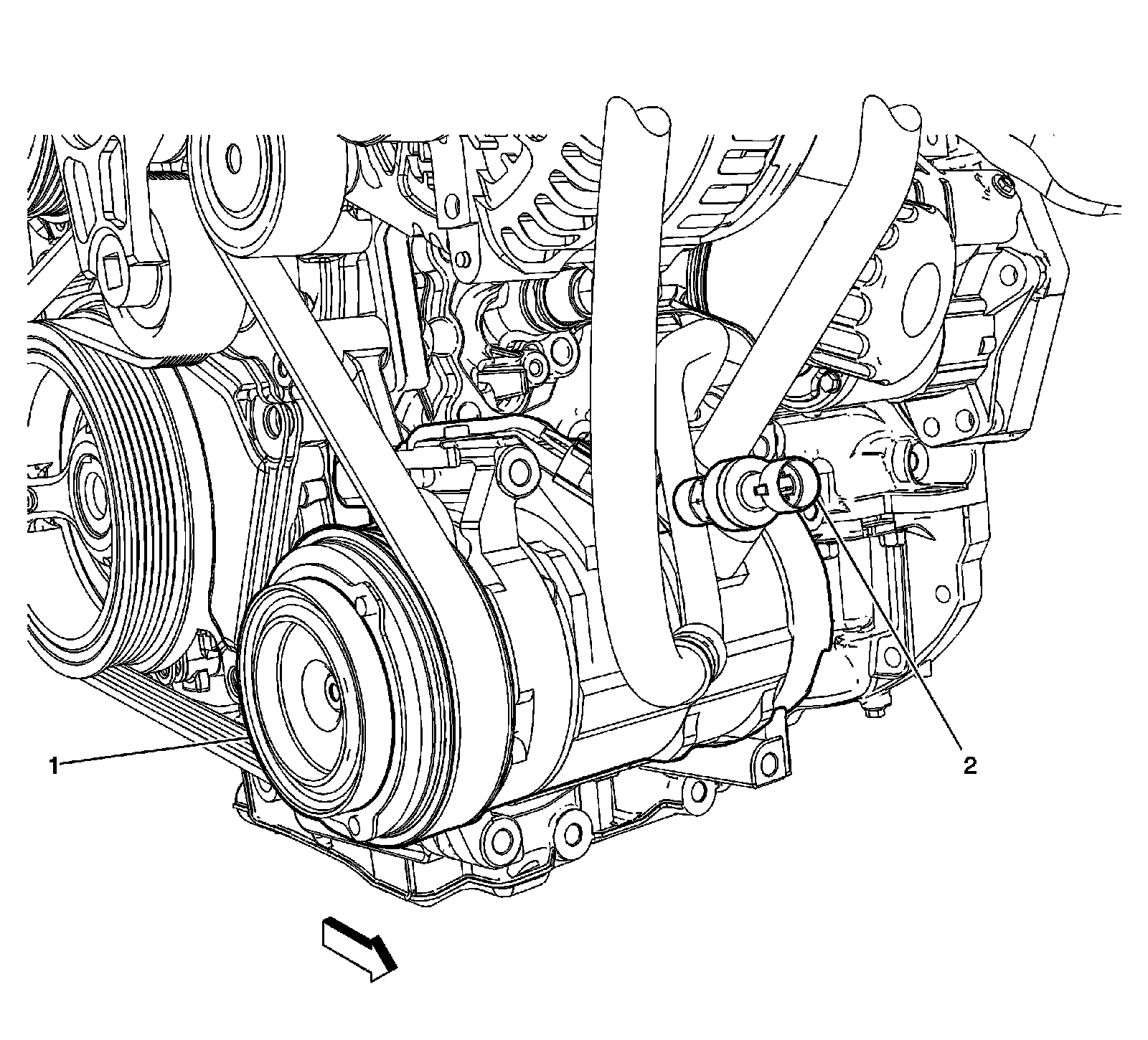

Near the A/C Compressor




1 - A/C Compressor
2 - A/C Refrigerant Pressure Sensor

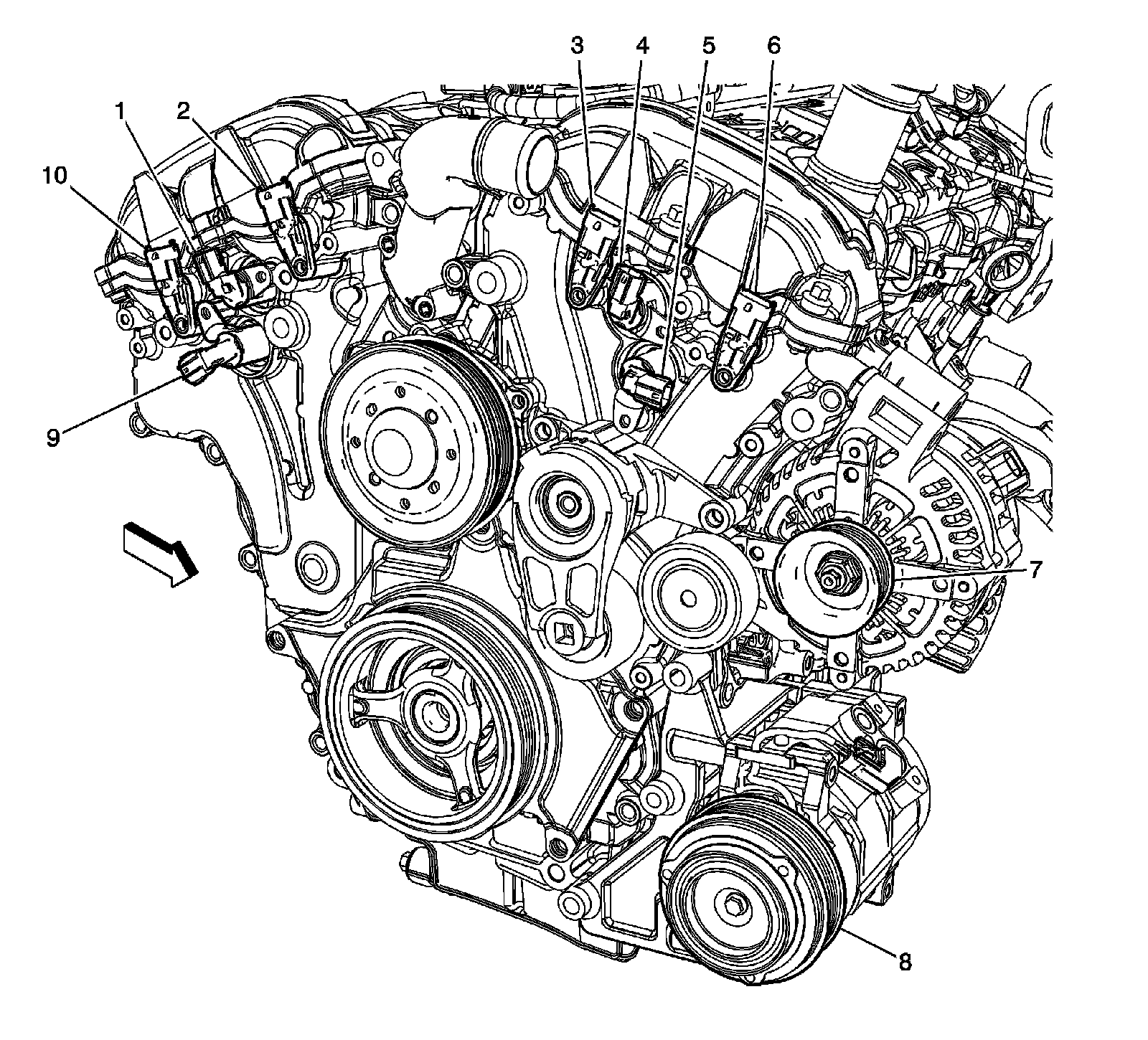

Near the Water Pump




1 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
2 - Camshaft Position (CMP) Sensor - Intake Bank 1
3 - Camshaft Position (CMP) Sensor - Intake Bank 2
4 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
5 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
6 - Camshaft Position (CMP) Sensor - Exhaust Bank 2
7 - Generator
8 - A/C Compressor Clutch
9 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
10 - Camshaft Position (CMP) Sensor - Exhaust Bank 1

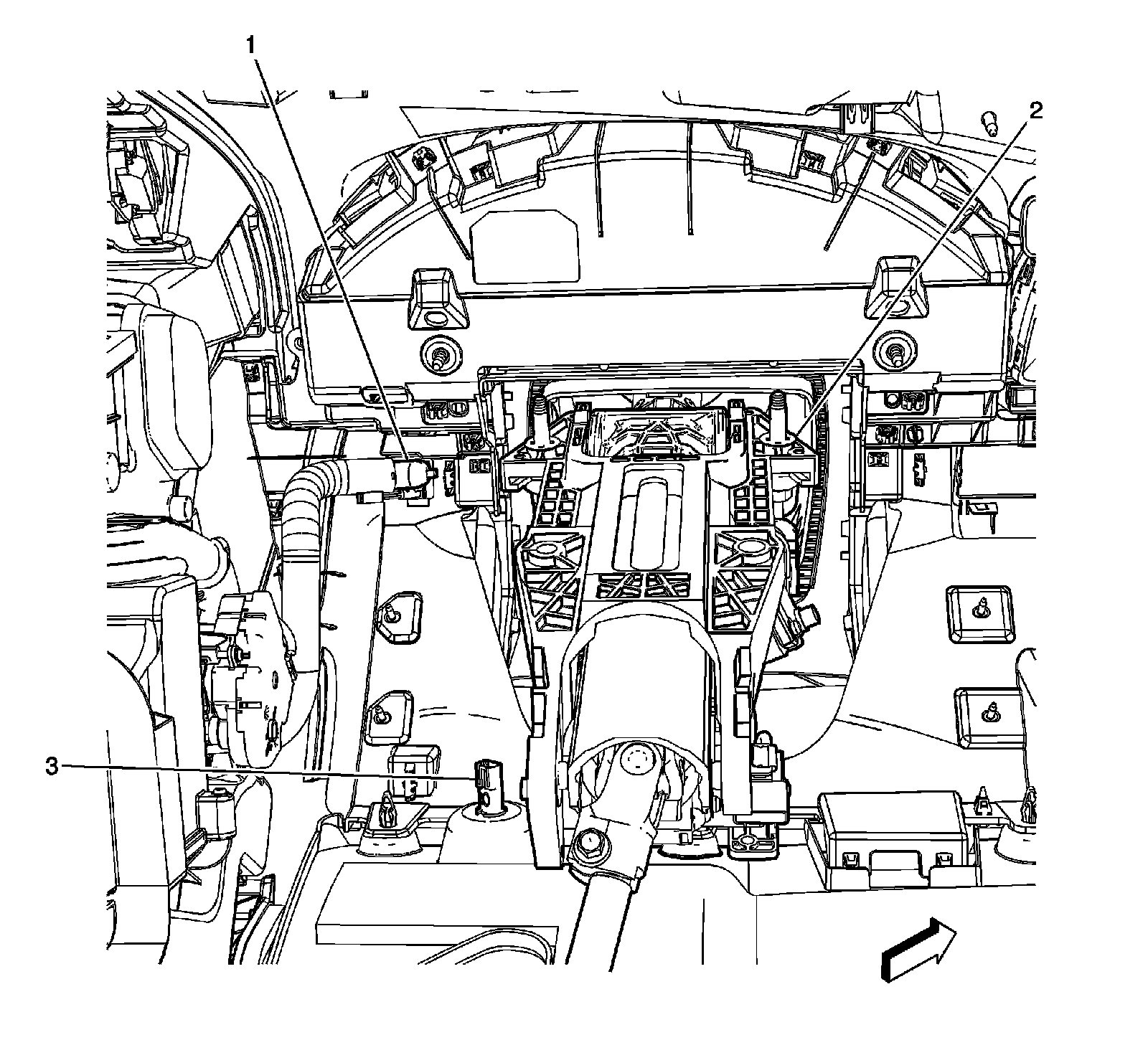

Near the Steering Column




1 - Ambient Air Temperature Sensor
2 - Steering Column
3 - Courtesy Lamp - Left Footwell

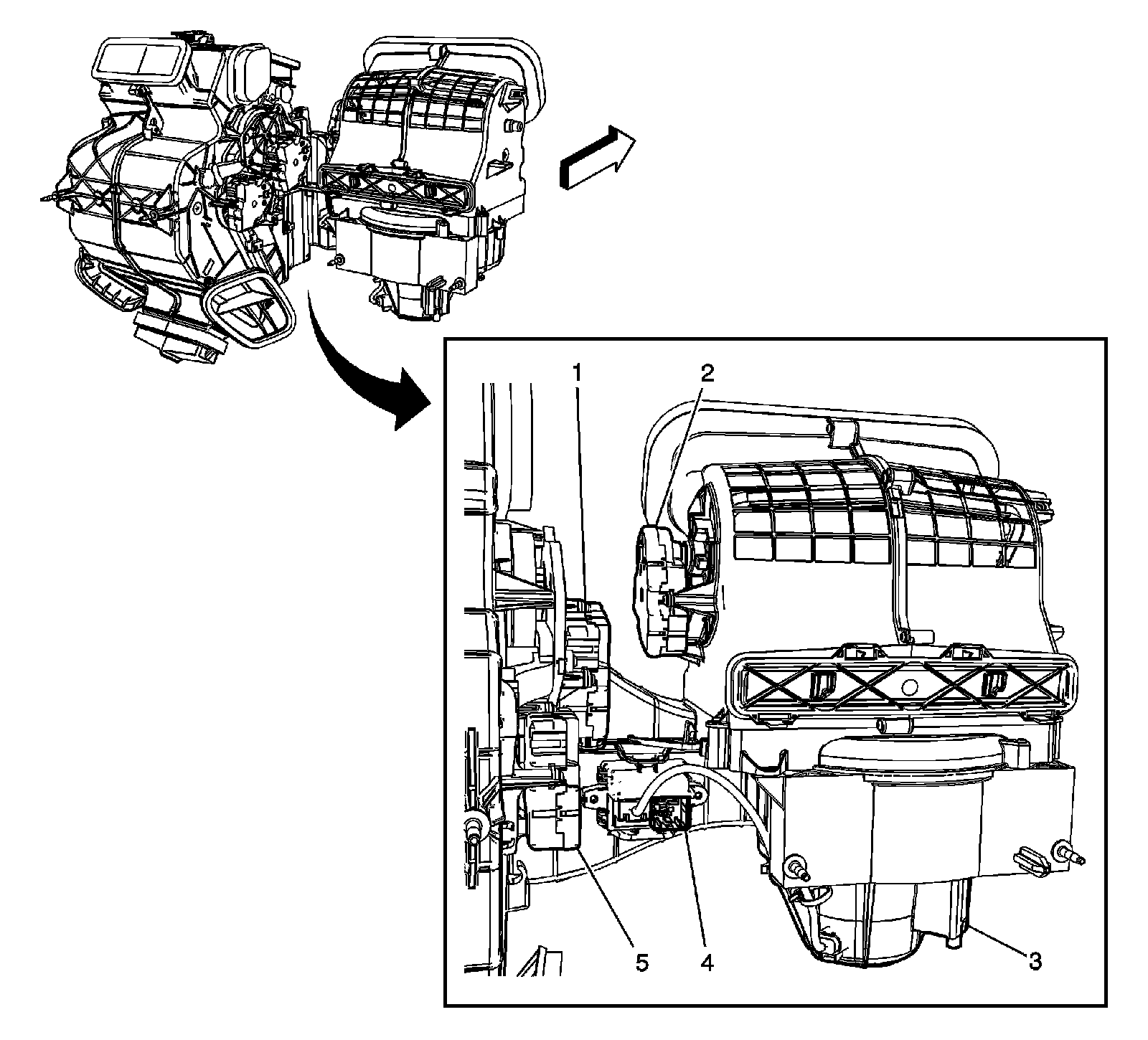

Front HVAC Module (C67)




1 - Mode Actuator
2 - Recirculation Actuator
3 - Blower Motor
4 - Blower Motor Control Module
5 - Air Temperature Actuator (C67)

I/P Components




1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Radio
4 - Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
5 - I/P Trim
6 - Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7 - HVAC Control Module
8 - Heated Seat Switch - Passenger (KA1)
9 - Auxiliary Power Outlet - I/P
10 - I/P Switch Assembly
11 - Heated Seat Switch - Driver (KA1)
12 - Hazard Switch
13 - Driver Information Center (DIC) Switch (UH9)

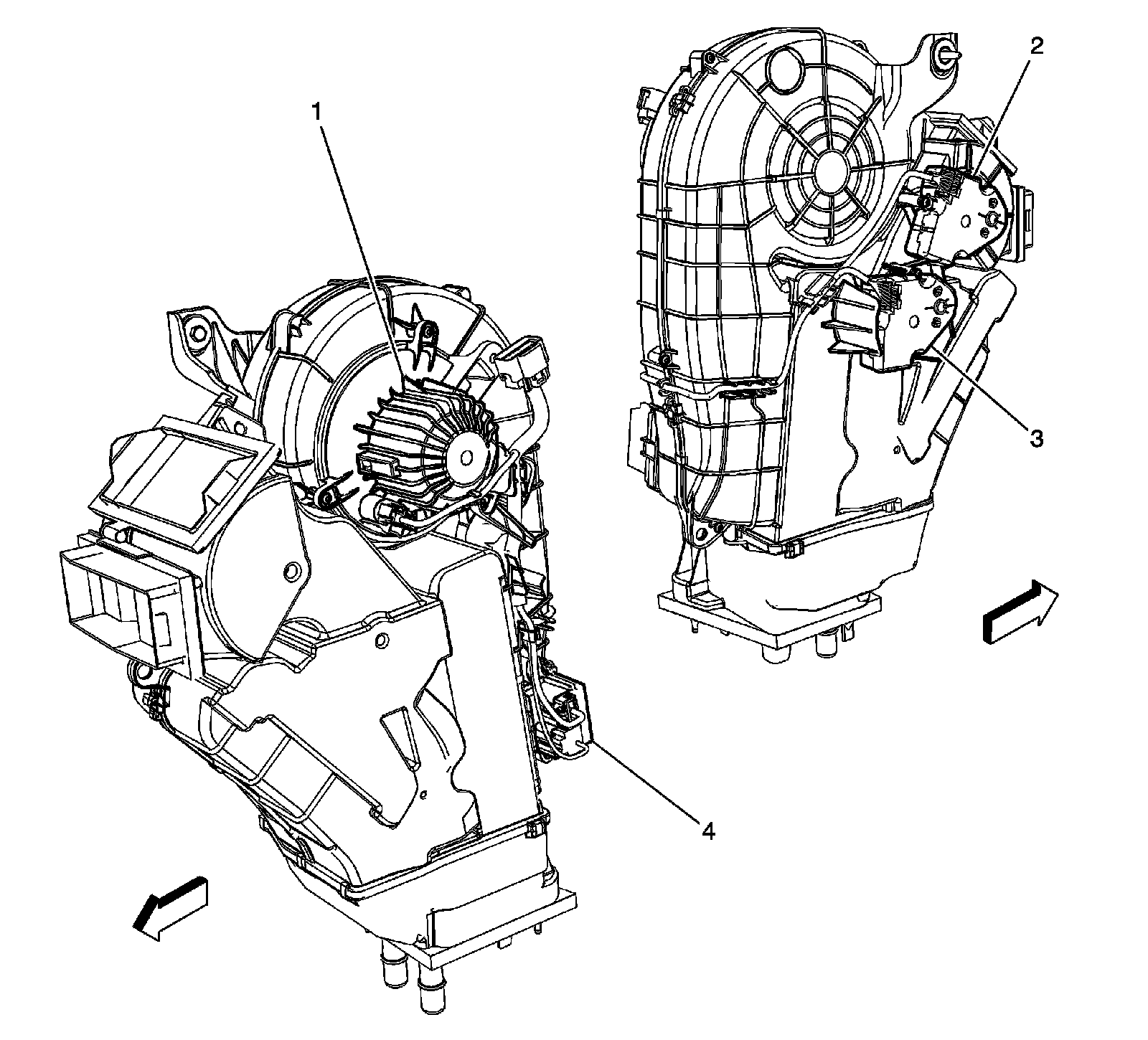

Interior HVAC Module - Rear




1 - Blower Motor - Auxiliary
2 - Mode Actuator - Auxiliary
3 - Air Temperature Actuator - Auxiliary
4 - Blower Motor Control Module - Auxiliary
