SIR Component Views

SIR Component Views

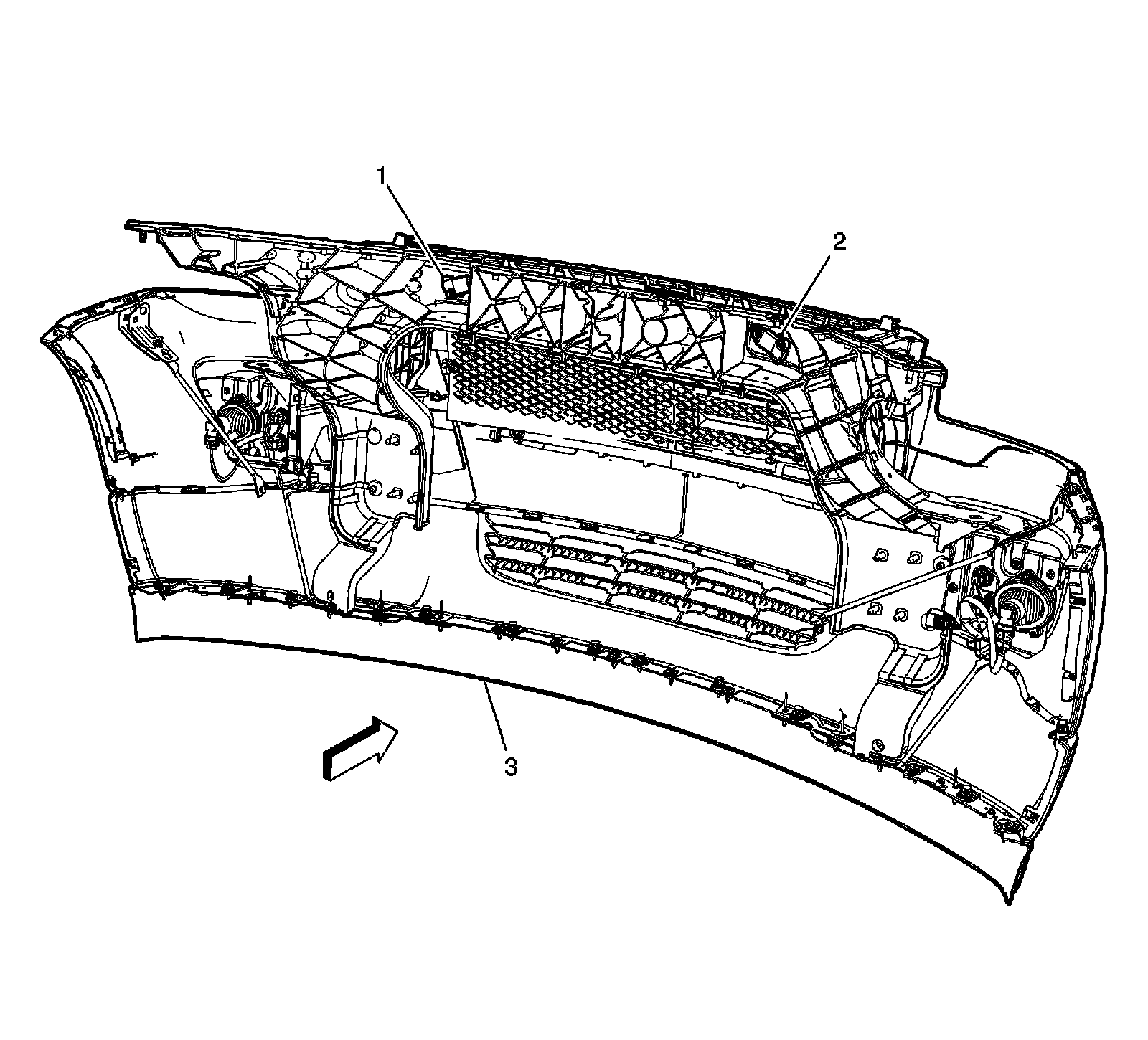

Front Sensors




1 - Inflatable Restraint Front End Sensor - Left
2 - Inflatable Restraint Front End Sensor - Right
3 - Front Fascia

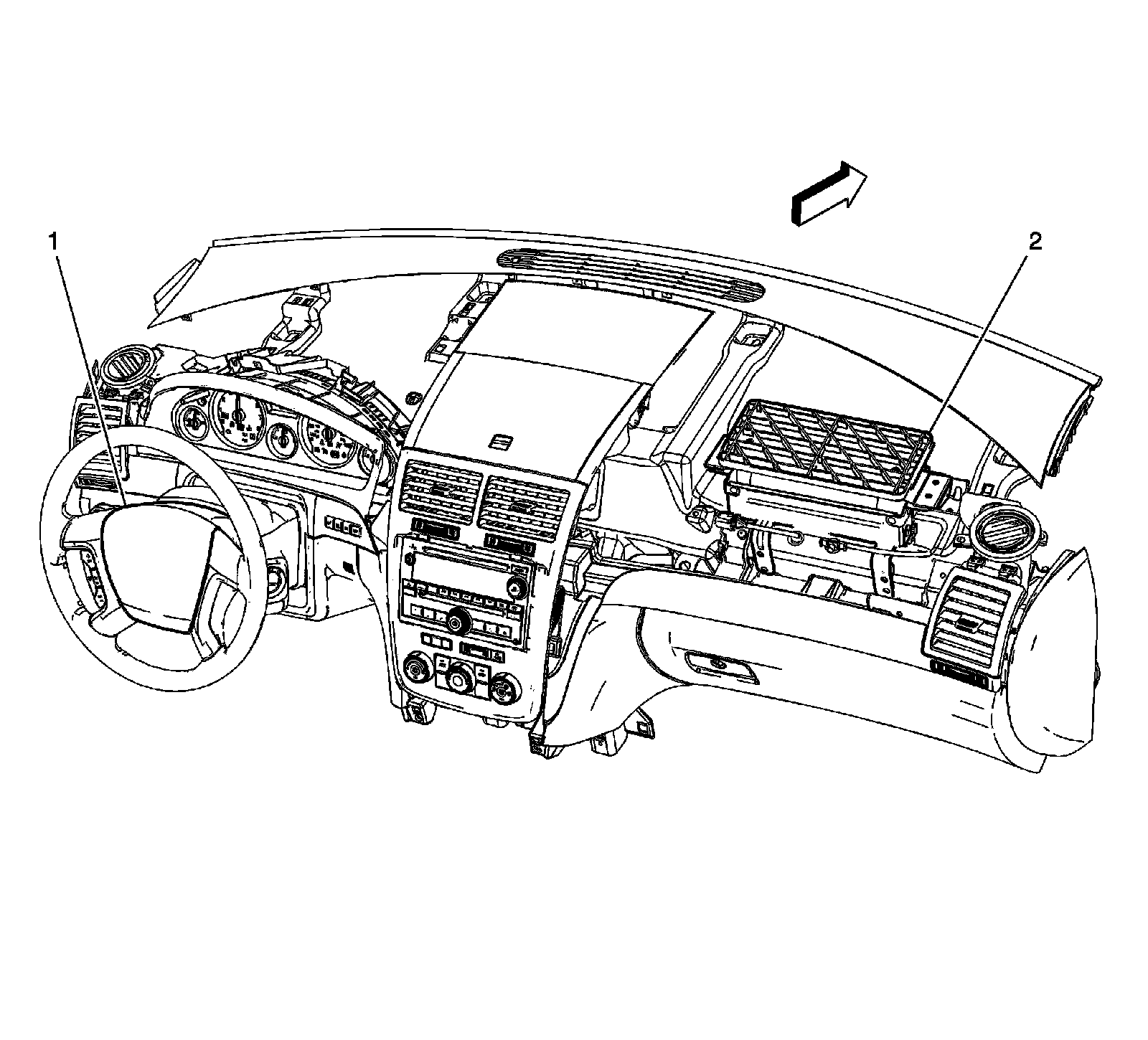

Front Air Bags




1 - Inflatable Restraint Steering Wheel Module
2 - Inflatable Restraint I/P Module

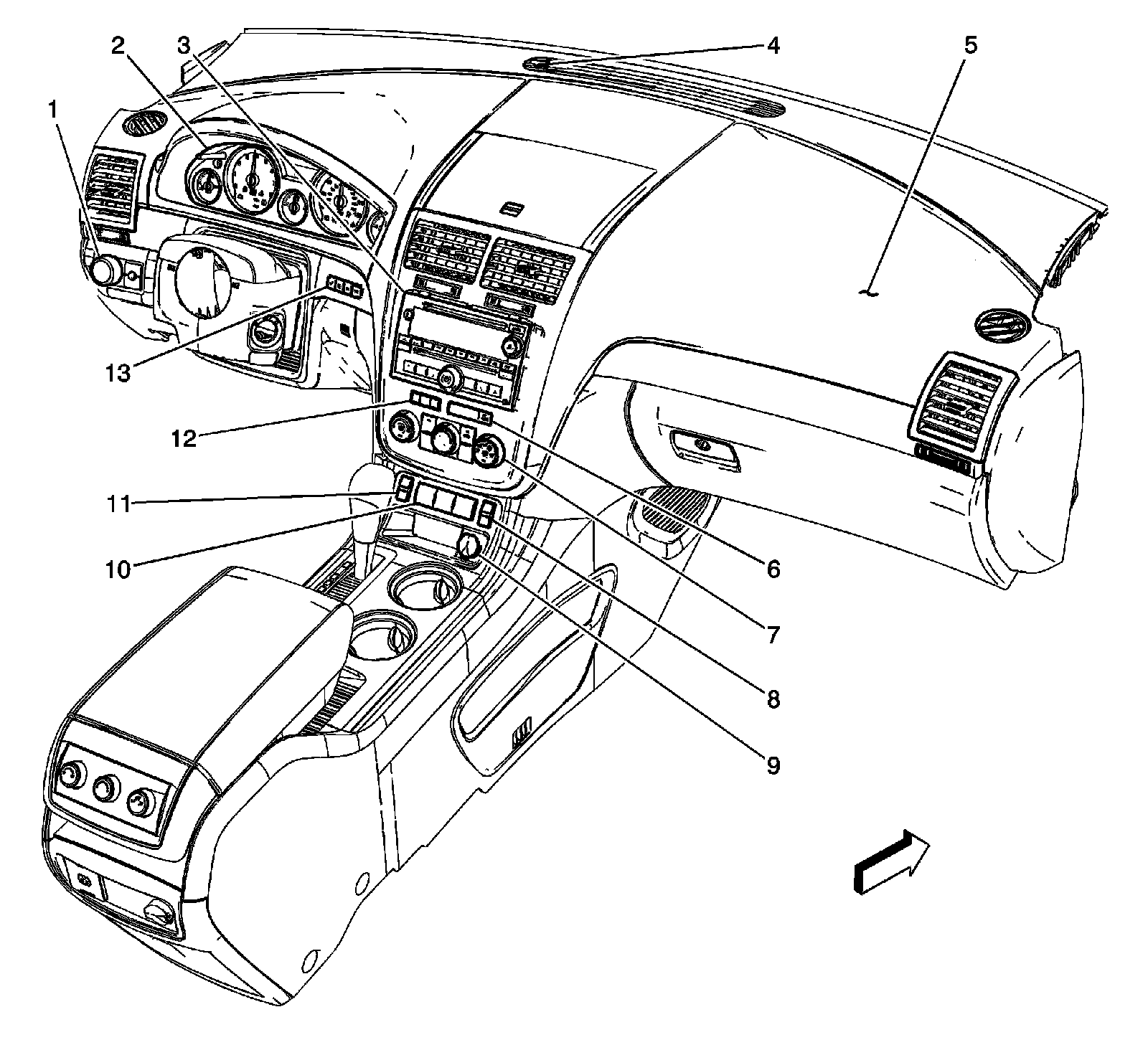

I/P Components




1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Radio
4 - Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
5 - I/P Trim
6 - Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7 - HVAC Control Module
8 - Heated Seat Switch - Passenger (KA1)
9 - Auxiliary Power Outlet - I/P
10 - I/P Switch Assembly
11 - Heated Seat Switch - Driver (KA1)
12 - Hazard Switch
13 - Driver Information Center (DIC) Switch (UH9)

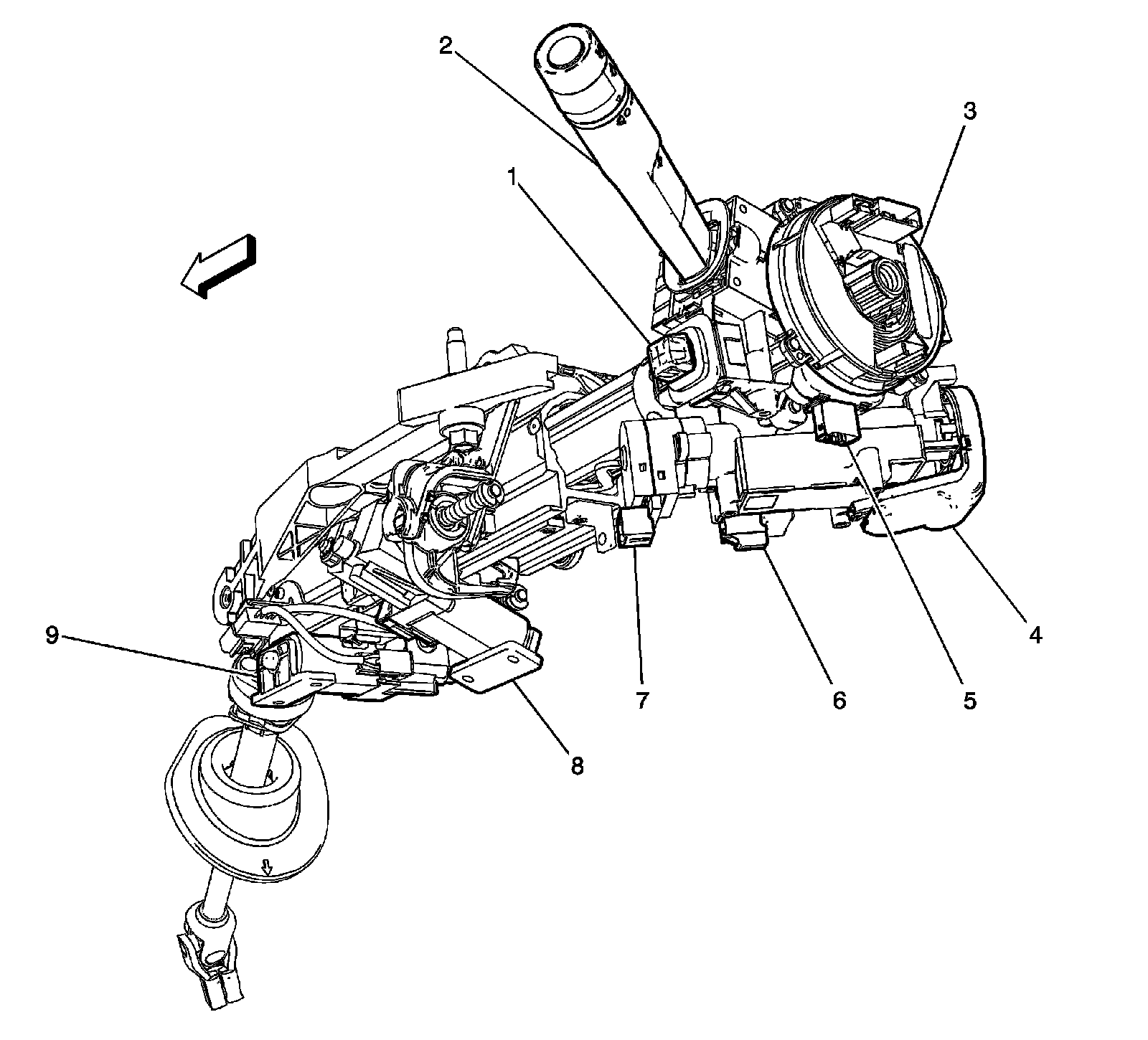

Steering Column Components




1 - Tilt/Telescope Switch (N38)
2 - Turn Signal/Multifunction Switch
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Theft Deterrent Control Module
5 - Steering Wheel Speed Position Sensor
6 - Ignition Lock Cylinder Control Actuator
7 - Ignition Switch
8 - Tilt Motor
9 - Telescope Actuator

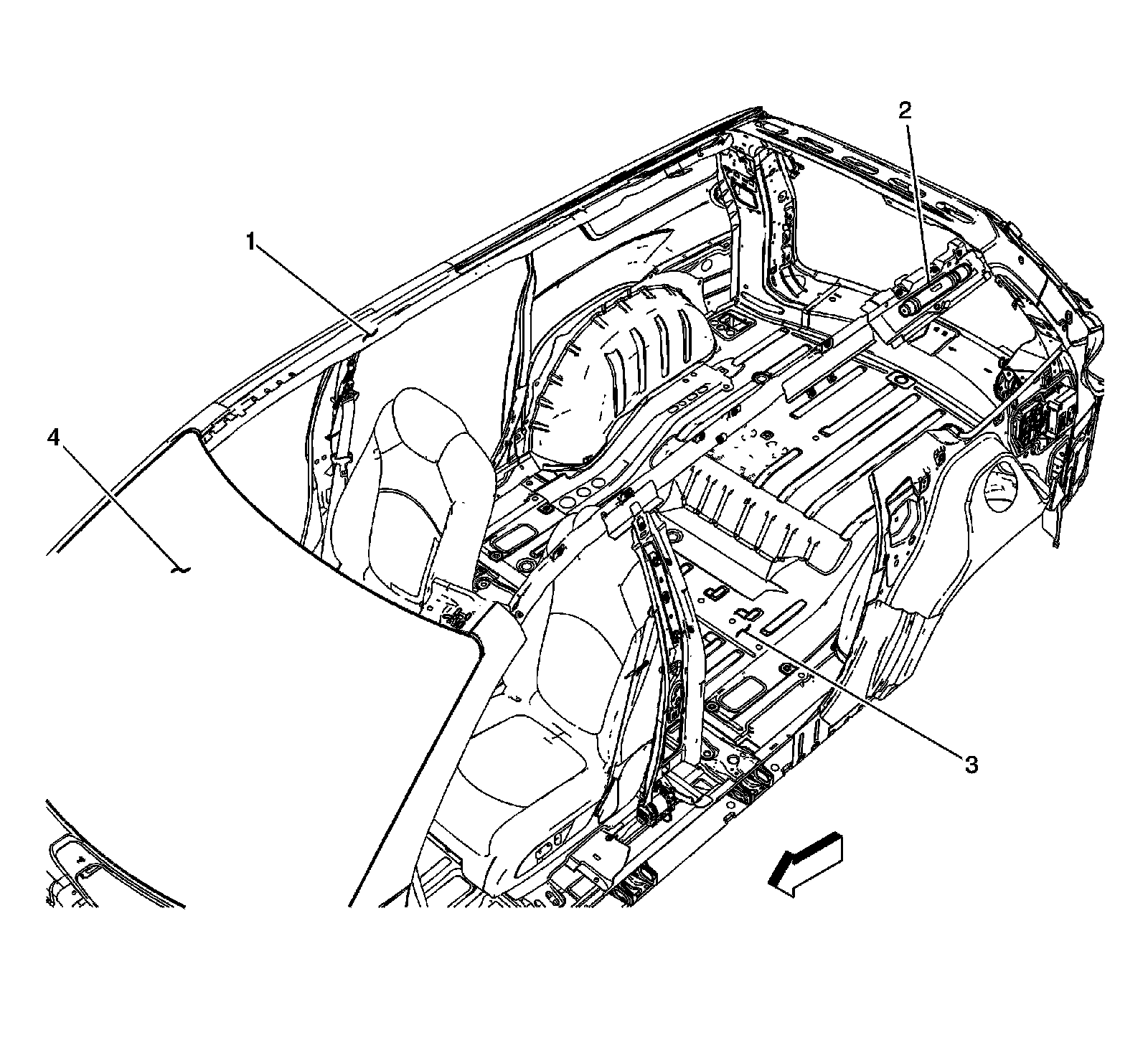

Roof Rail Air Bags




1 - Inflatable Restraint Roof Rail Module - Passenger
2 - Inflatable Restraint Roof Rail Module - Driver
3 - Floor Panel
4 - Windshield

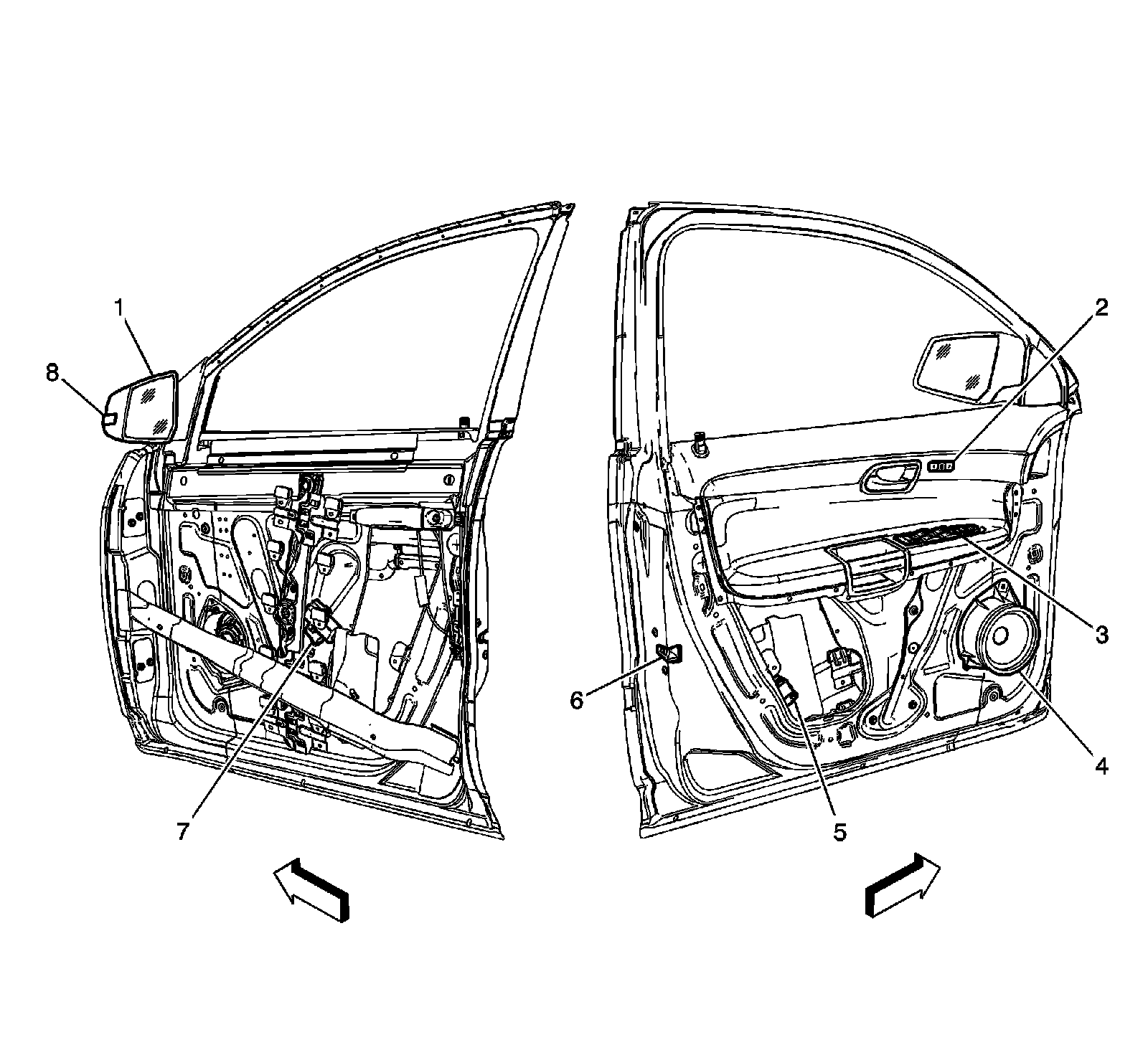

Driver Door




1 - Outside Rearview Mirror - Driver
2 - Memory Seat Switch (AG3)
3 - Driver Door Module (DDM) (AXC/AXE)
4 - Speaker - LF Door
5 - Inflatable Restraint Side Impact Sensing Module (SISM) - Left
6 - Door Latch Assembly - Driver
7 - Window Motor - Driver
8 - Turn Signal Lamp (Part of Outside Rearview )

Driver Seat (Except A45)




1 - Seat Lumbar Vertical Motor - Driver
2 - Inflatable Restraint Side Impact Module - Left
3 - Seat Recline Motor - Driver
4 - Seat Lumbar Horizontal Motor - Driver
5 - Seat Horizontal Motor - Driver
6 - Seat Lumbar Switch - Driver
7 - Seat Adjuster Switch - Driver
8 - Seat Rear Vertical Motor - Driver
9 - Heated Seat Control Module - Driver (KA1)
10 - Seat Front Vertical Motor - Driver
11 - Seat Belt Switch - Driver
12 - Heated Seat Element - Driver Cushion (KA1)
13 - Heated Seat Element - Driver Back (KA1)

Driver Seat (AG3)




1 - Seat Horizontal Position Sensor
2 - Seat Lumbar Vertical Motor - Driver (AG3/AH5)
3 - Inflatable Restraint Side Impact Module - Left
4 - Seat Lumbar Horizontal Motor - Driver (AG3/AH5)
5 - Seat Recline Motor - Driver (AG3/AH5)
6 - Seat Recline Position Sensor - Driver
7 - Seat Lumbar Switch - Driver (AG3/AH5)
8 - Seat Horizontal Motor - Driver (AG1/AG3/AH5)
9 - Seat Adjuster Switch - Driver (AG1/AG3/AH5)
10 - Inflatable Restraint Seat Position Sensor (SPS) - Driver (W49)
11 - Seat Rear Vertical Motor - Driver
12 - Seat Rear Vertical Position Sensor
13 - Seat Front Vertical Position Sensor
14 - Memory Seat Module
15 - Seat Front Vertical Motor - Driver
16 - Seat Belt Switch - Driver

Passenger Seat




1 - Inflatable Restraint Side Impact Module - Right
2 - Heated Seat Element - Passenger Back (KA1)
3 - Seat Recline Motor - Passenger (AAQ)
4 - Seat Lumbar Horizontal Motor - Passenger (AAQ)
5 - Seat Lumbar Vertical Motor - Passenger (AAQ)
6 - Seat Horizontal Motor - Passenger
7 - Inflatable Restraint Seat Position Sensor (SPS) - Passenger (W49)
8 - Seat Belt Switch - Passenger
9 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
10 - Passenger Presence System (PPS) Module (Part of PPS Sensor)
11 - Seat Adjuster Switch - Passenger
12 - Seat Lumbar Switch - Passenger
13 - Heated Seat Element - Passenger Back

Near the Passenger Seat




1 - Passenger Seat
2 - Battery Current Sensor
3 - Battery
4 - G304
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Inflatable Restraint Vehicle Rollover Sensor
7 - YAW Rate and Lateral Acceleration Sensor

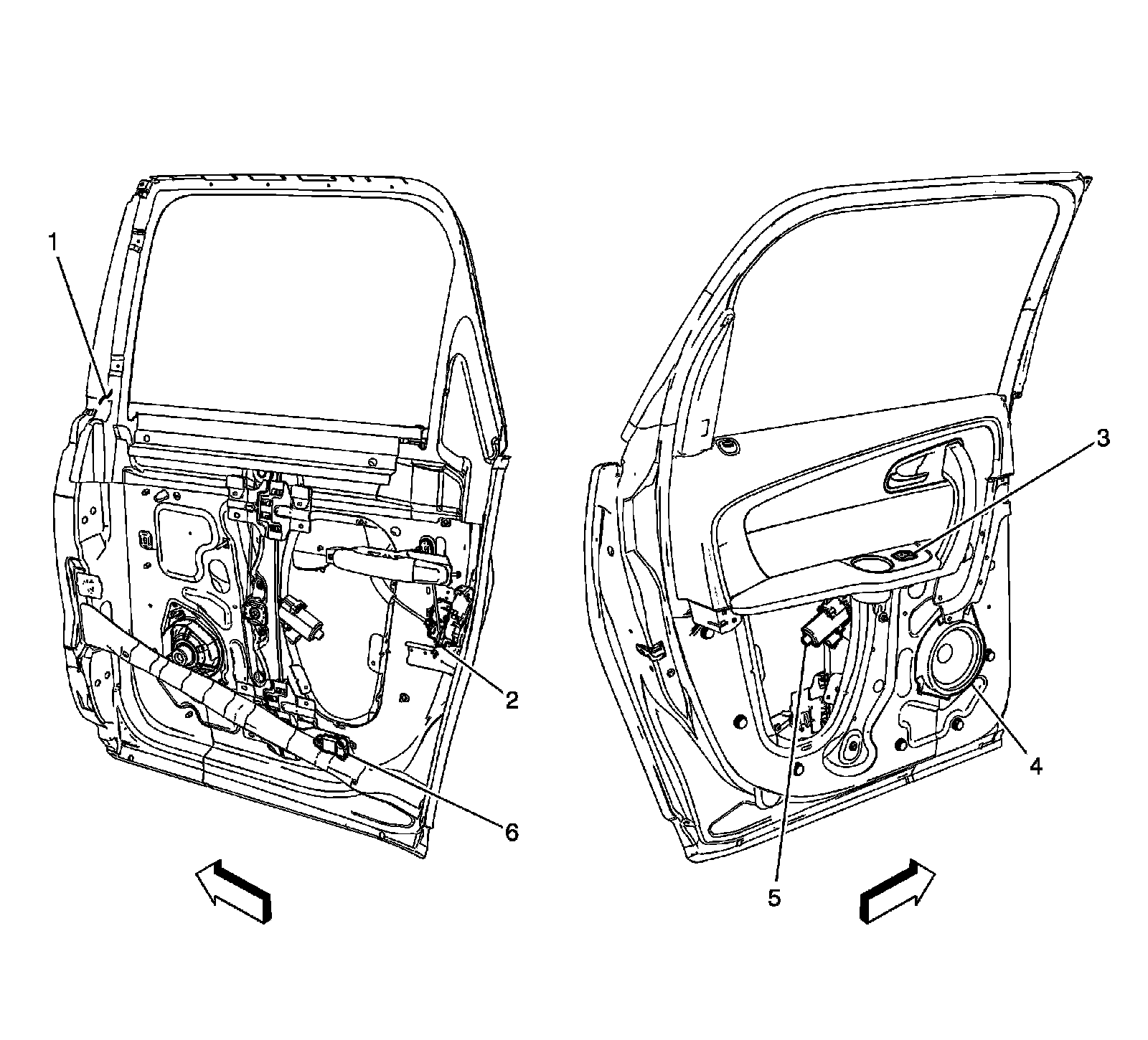

LR Door




1 - Door Frame
2 - Door Latch Assembly - LR
3 - Window Switch - LR
4 - Speaker - LR Door
5 - Window Motor - LR
6 - Inflatable Restraint Side Impact Sensing Module (SISM) - LR

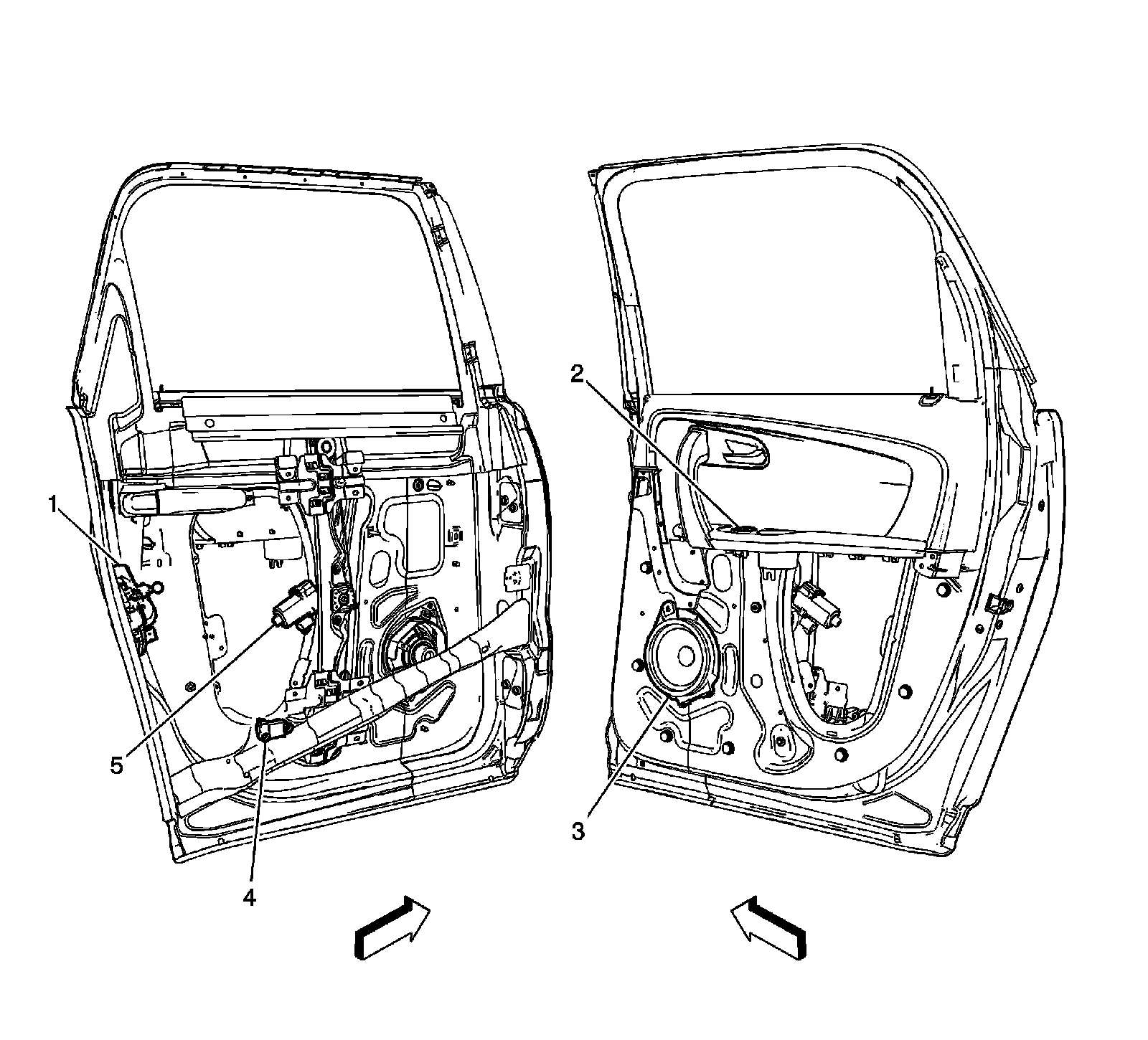

RR Door




1 - Door Latch Assembly - RR
2 - Window Switch - RR
3 - Speaker - RR Door
4 - Inflatable Restraint Side Impact Sensing Module (SISM) - RR
5 - Window Motor - RR

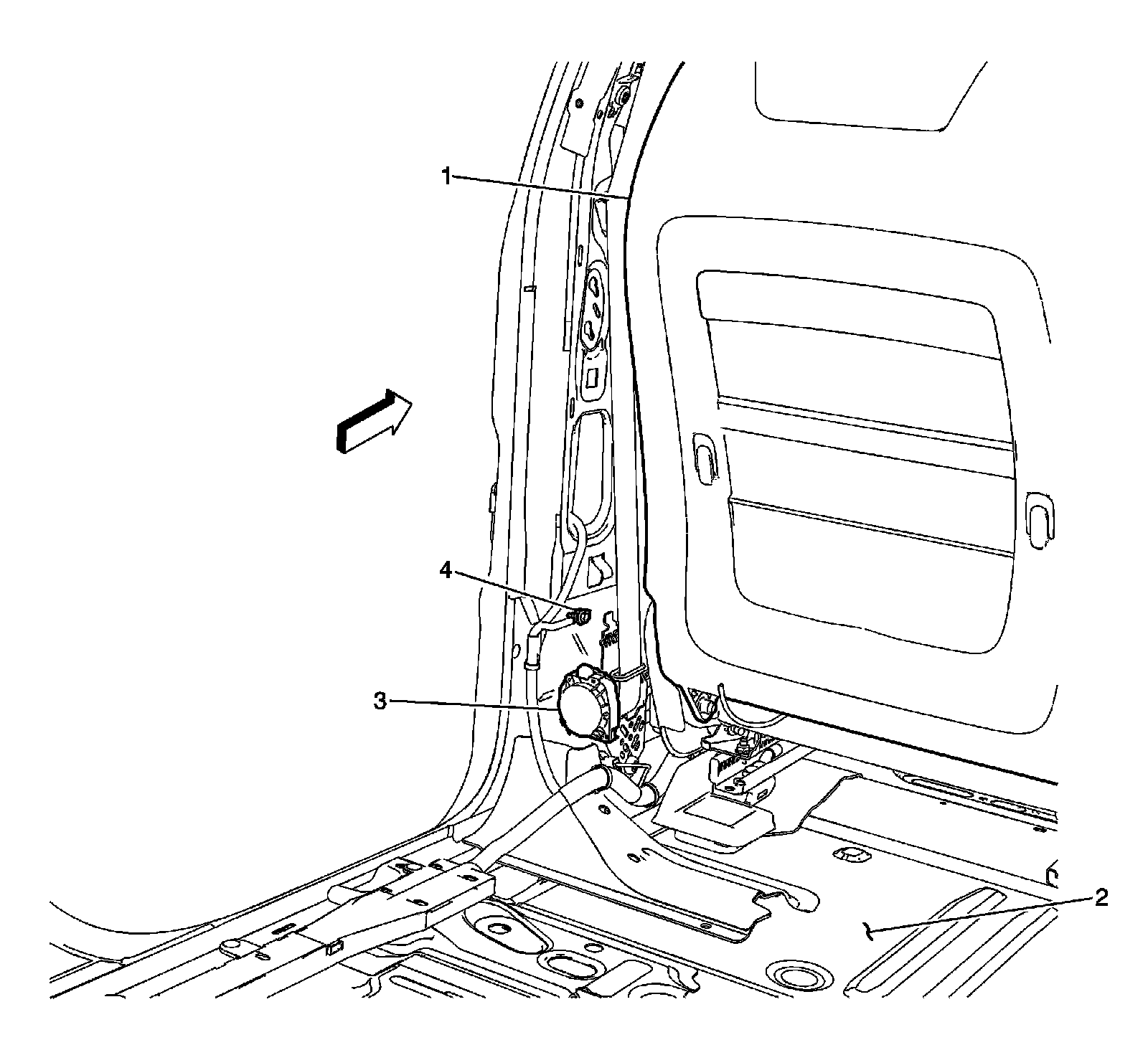

Behind the Drivers Seat




1 - Passenger Seat
2 - Floor Panel
3 - Seat Belt Pretensioner - Driver
4 - G303

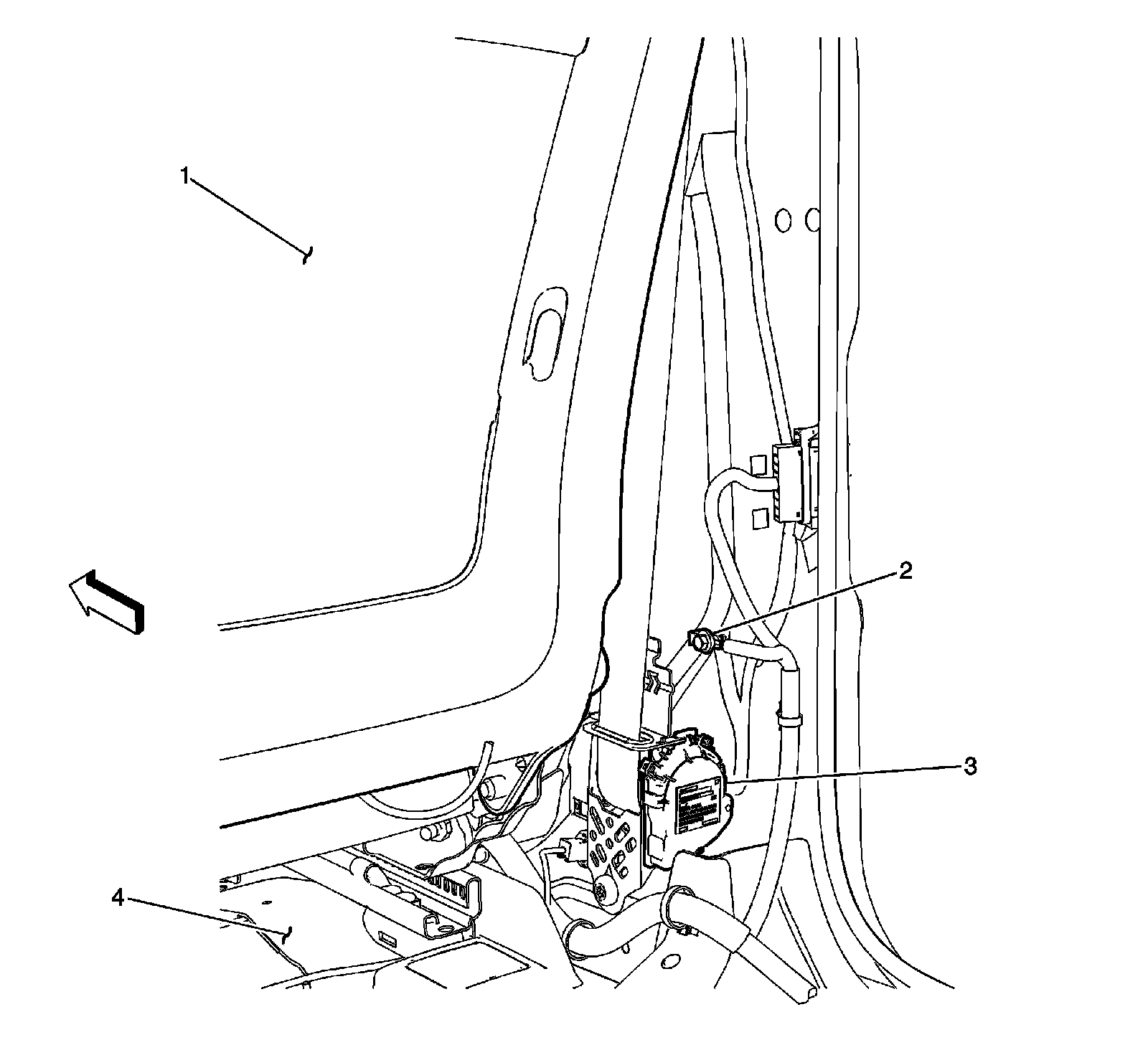

Behind the Passenger Seat




1 - Passenger Seat
2 - G302
3 - Seat Belt Pretensioner - Passenger
4 - Floor Panel
