Tail Lamp Assembly

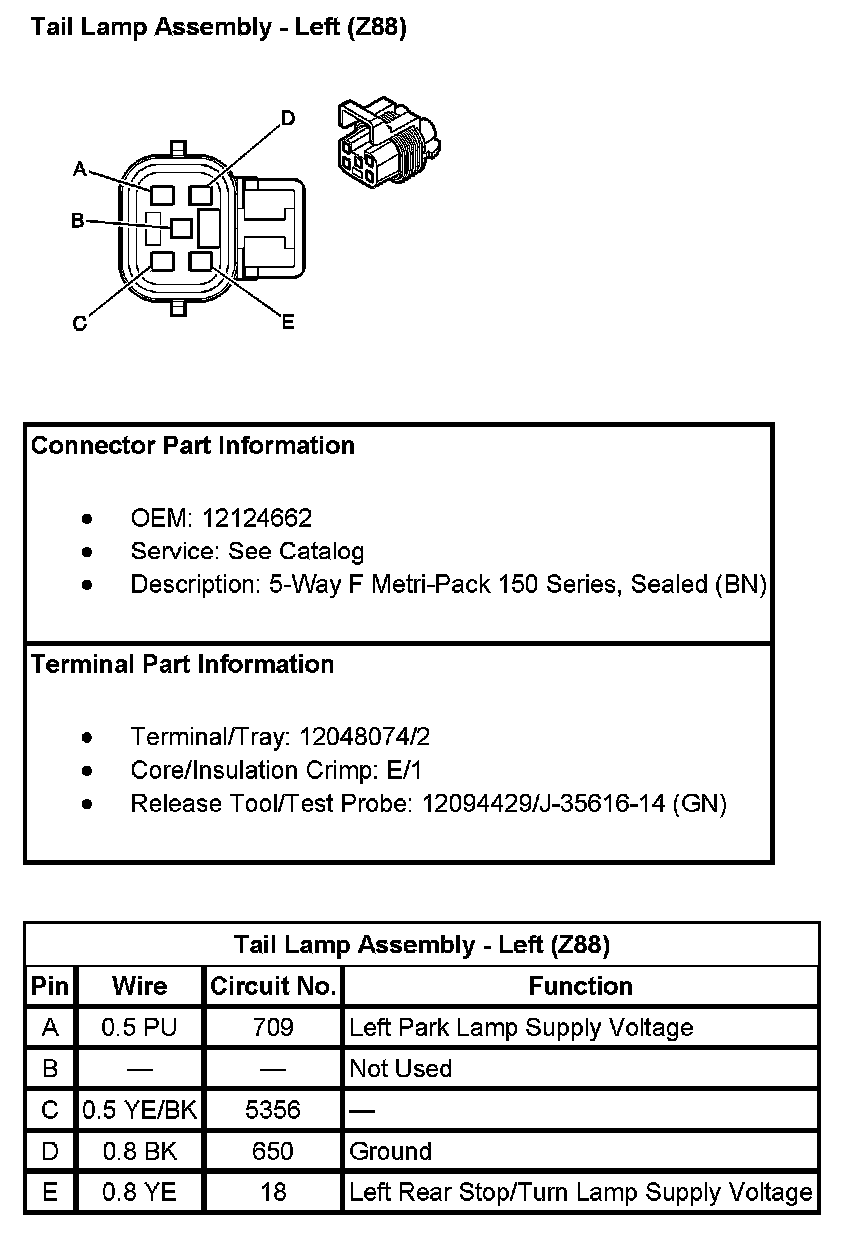

Tail Lamp Assembly - Left (With RPO Code Z88):

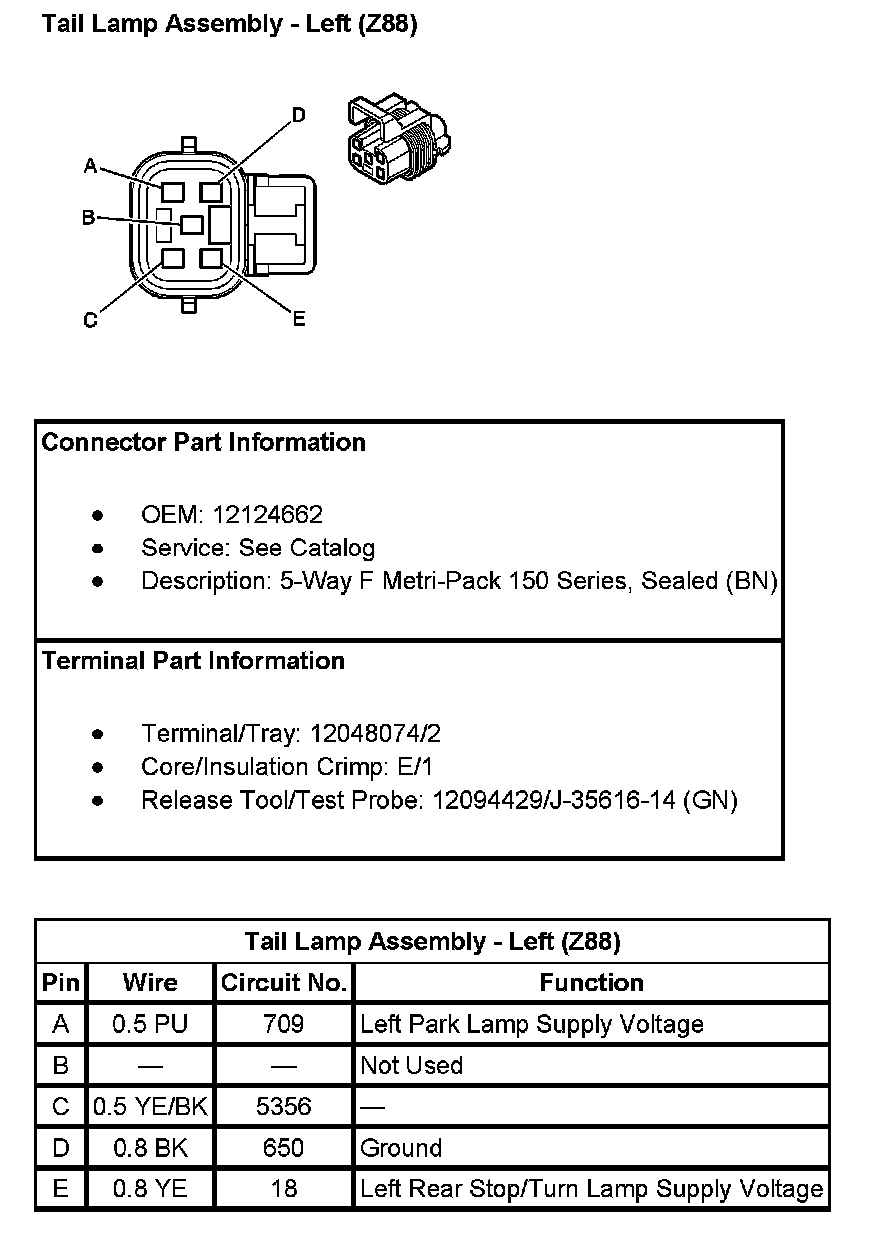

Tail Lamp Assembly - Left (with RPO Code Z88):

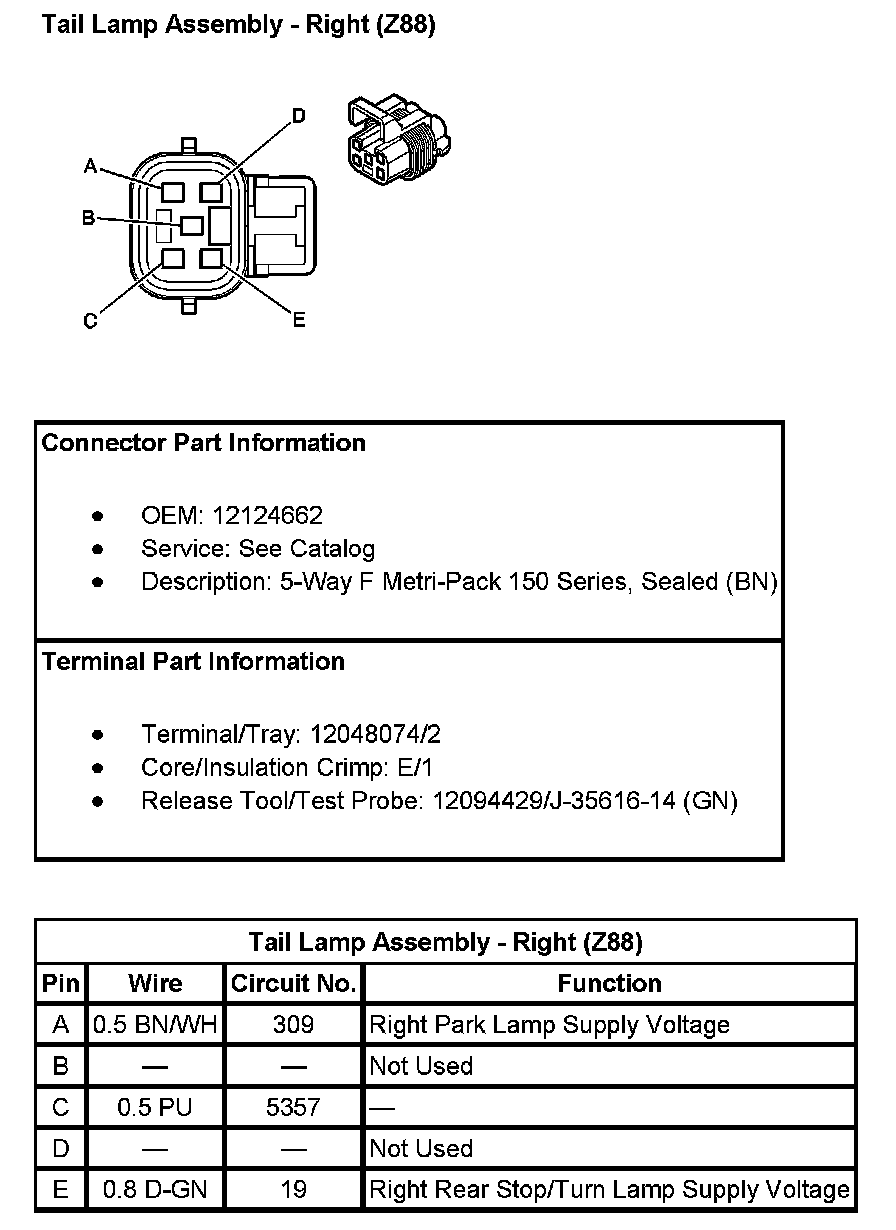

Tail Lamp Assembly - Right (With RPO Code Z88):

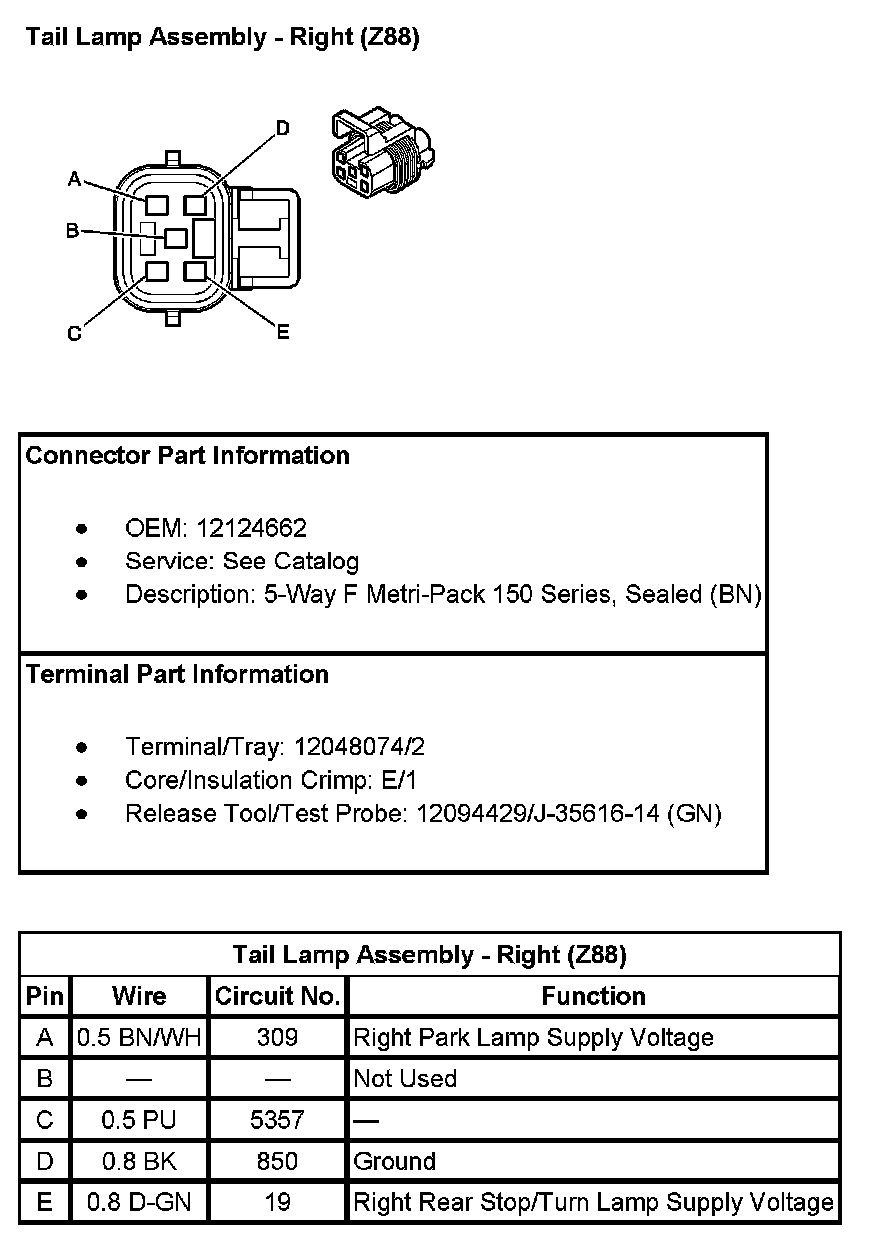

Tail Lamp Assembly - Right (With RPO Code Z88):
