Home >> Geo >> 1992 >> Prizm L4-1600cc 1.6L DOHC VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Junction Block 2 >> C5

C5

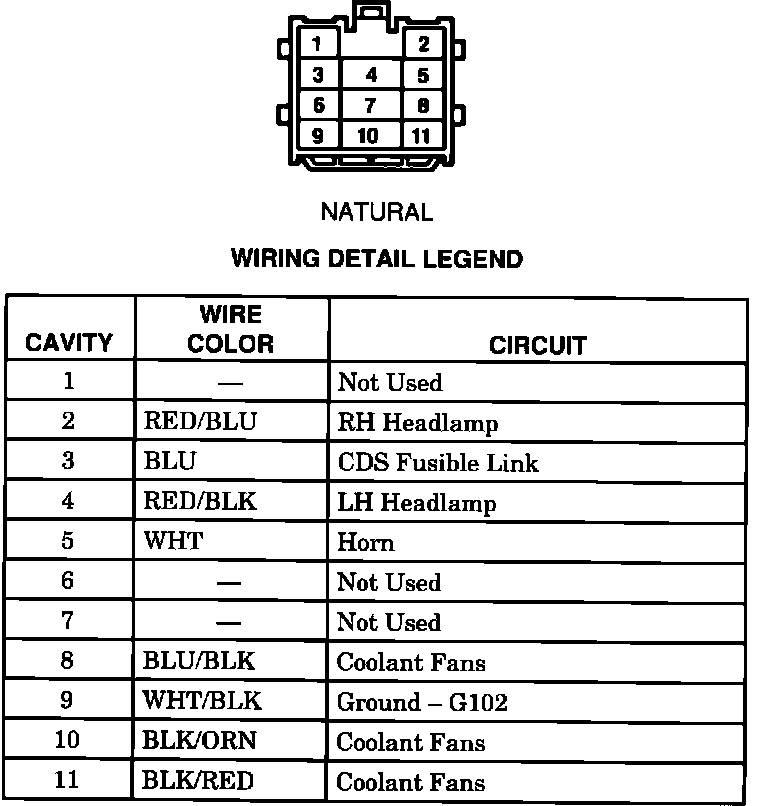

Junction Block 2: C5:
