Home >> Geo >> 1993 >> Storm L4-1600cc 1.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Transaxle & Idle Speed Controls (ISC)

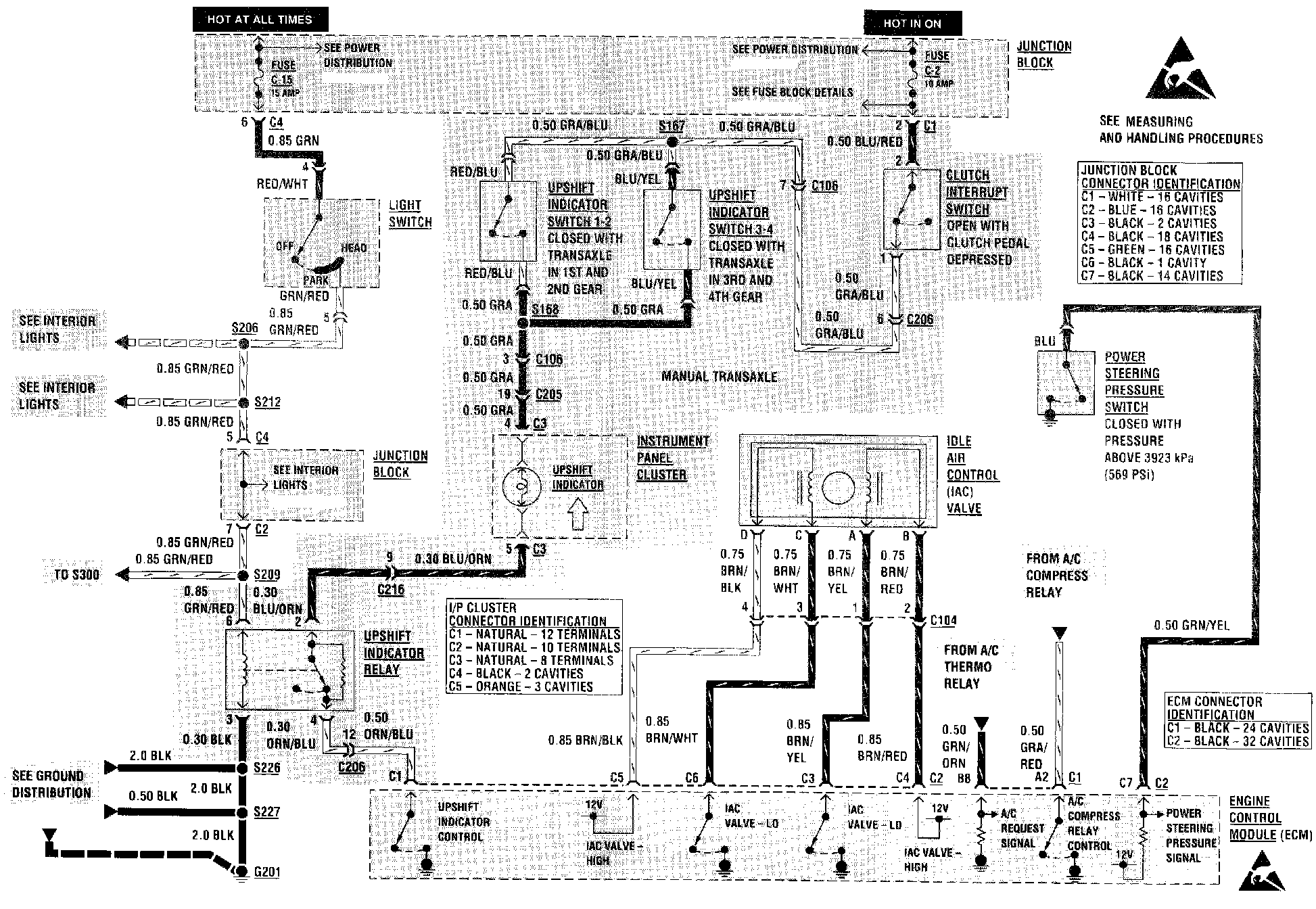

Transaxle & Idle Speed Controls (ISC)

Engine Controls 1.6L VIN 6:
