Home
>>
Geo
>>
1994
>>
Prizm L4-1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
S300-S399
>>
S301
S301

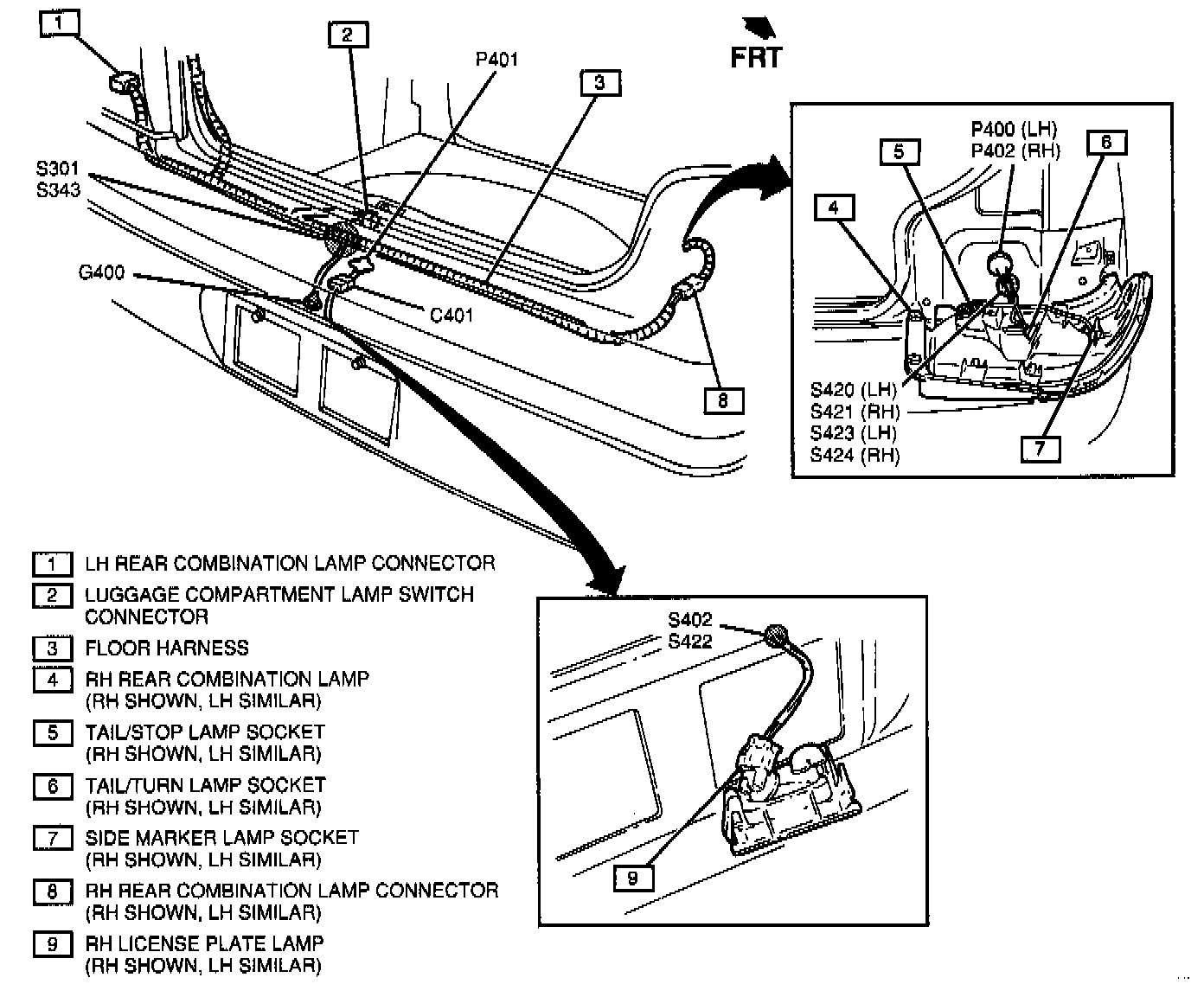

Figure A - Luggage Compartment Wiring:
