1994
>>
Prizm L4-1.6L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
S300-S399
>>
S341
S341

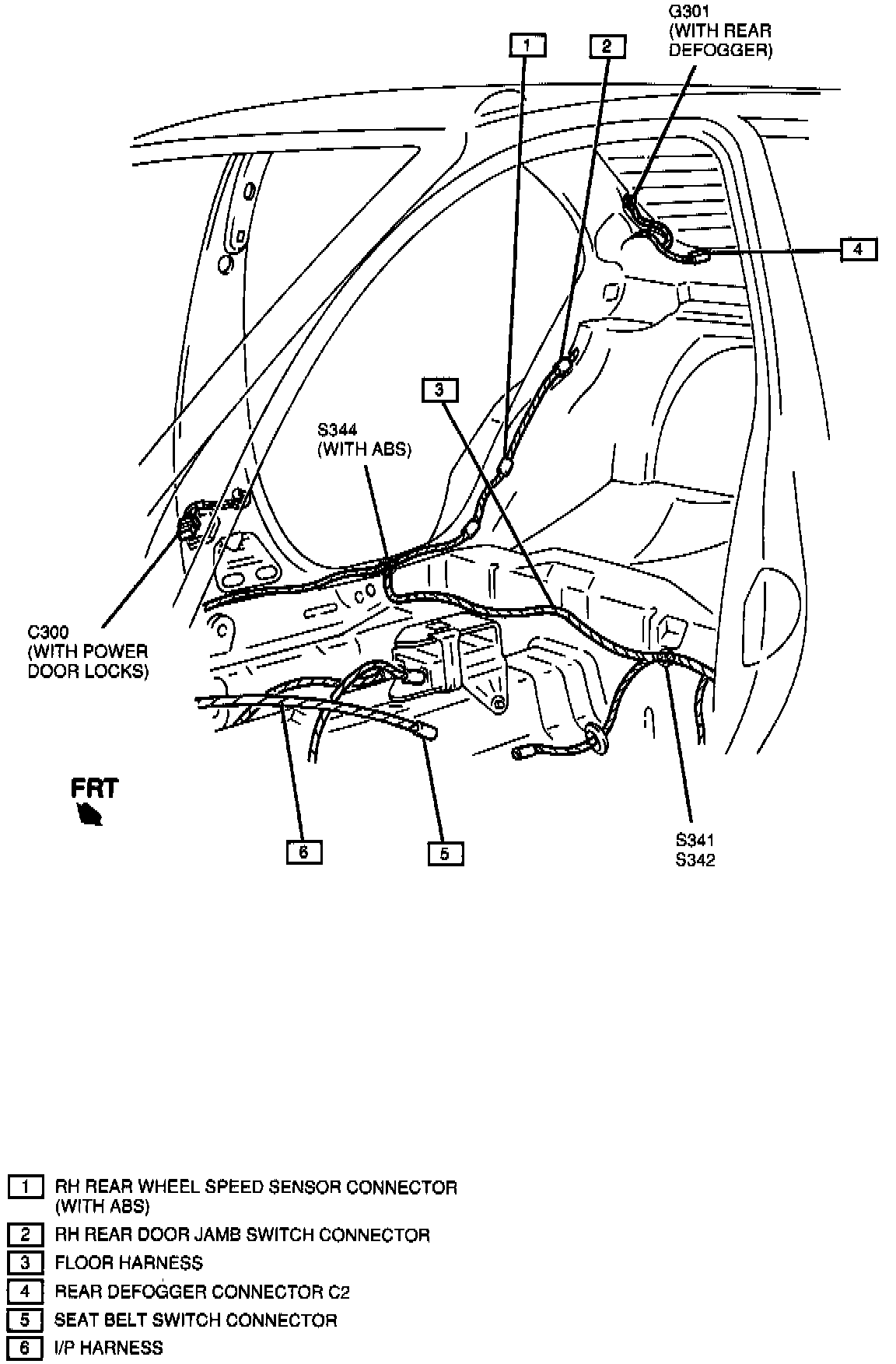

Figure A - RH Rear Passenger Compartment Wiring:
