Wiper Arm Replacement

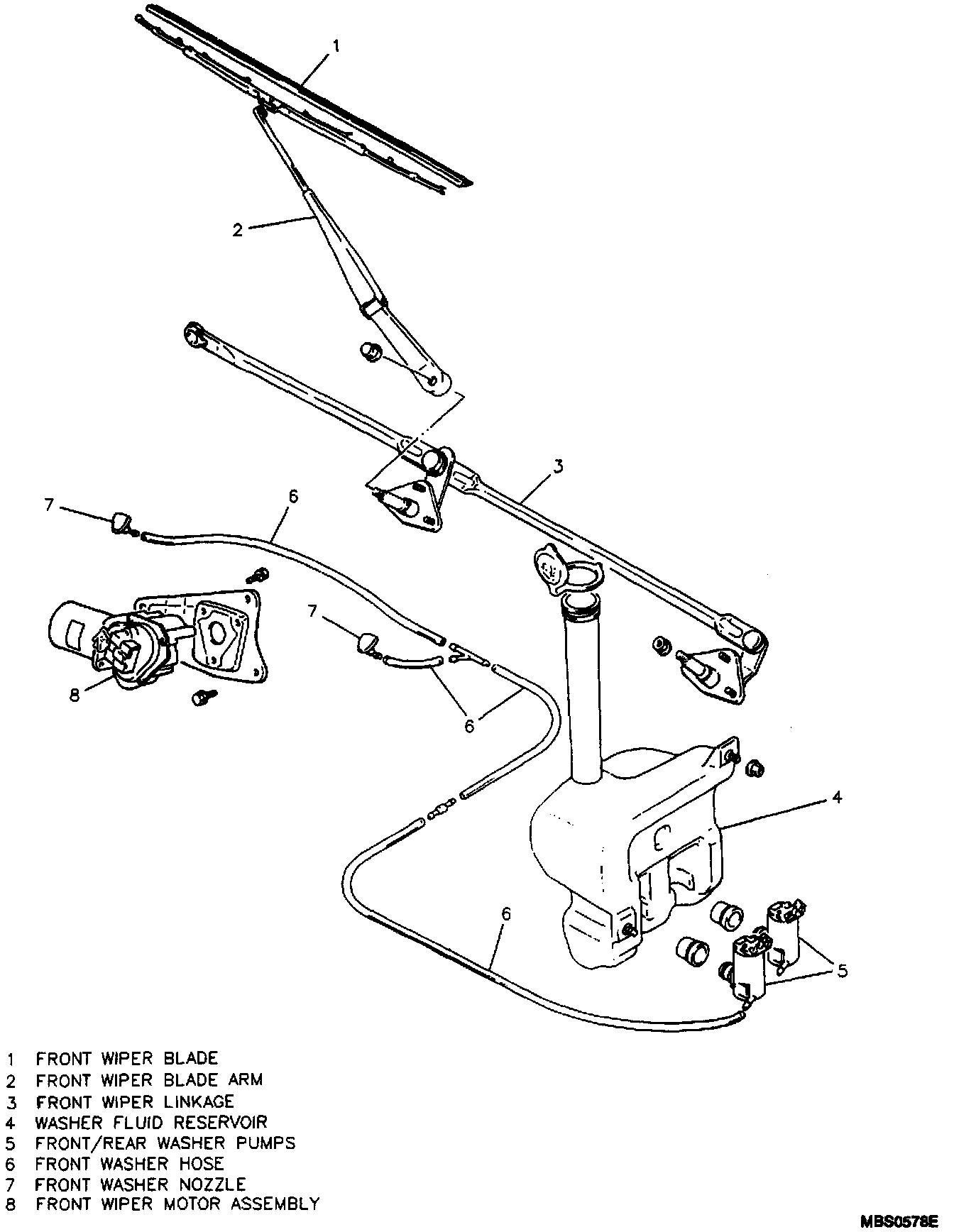

Front Wiper/Washer System:

Remove or Disconnect

IMPORTANT:
Before removing the wiper arm, note its location for proper installation.

1. One nut cover and retaining nut securing wiper arm.
2. Wiper arm from wiper linkage.

Install or Connect
1. Wiper arm to wiper linkage.
2. Wiper arm retaining nut and nut cover.

Tighten
^ Wiper arm retaining nut to 20 N.m (15 lb.ft.).
