1997
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
>>
Exploded Views
Exploded Views

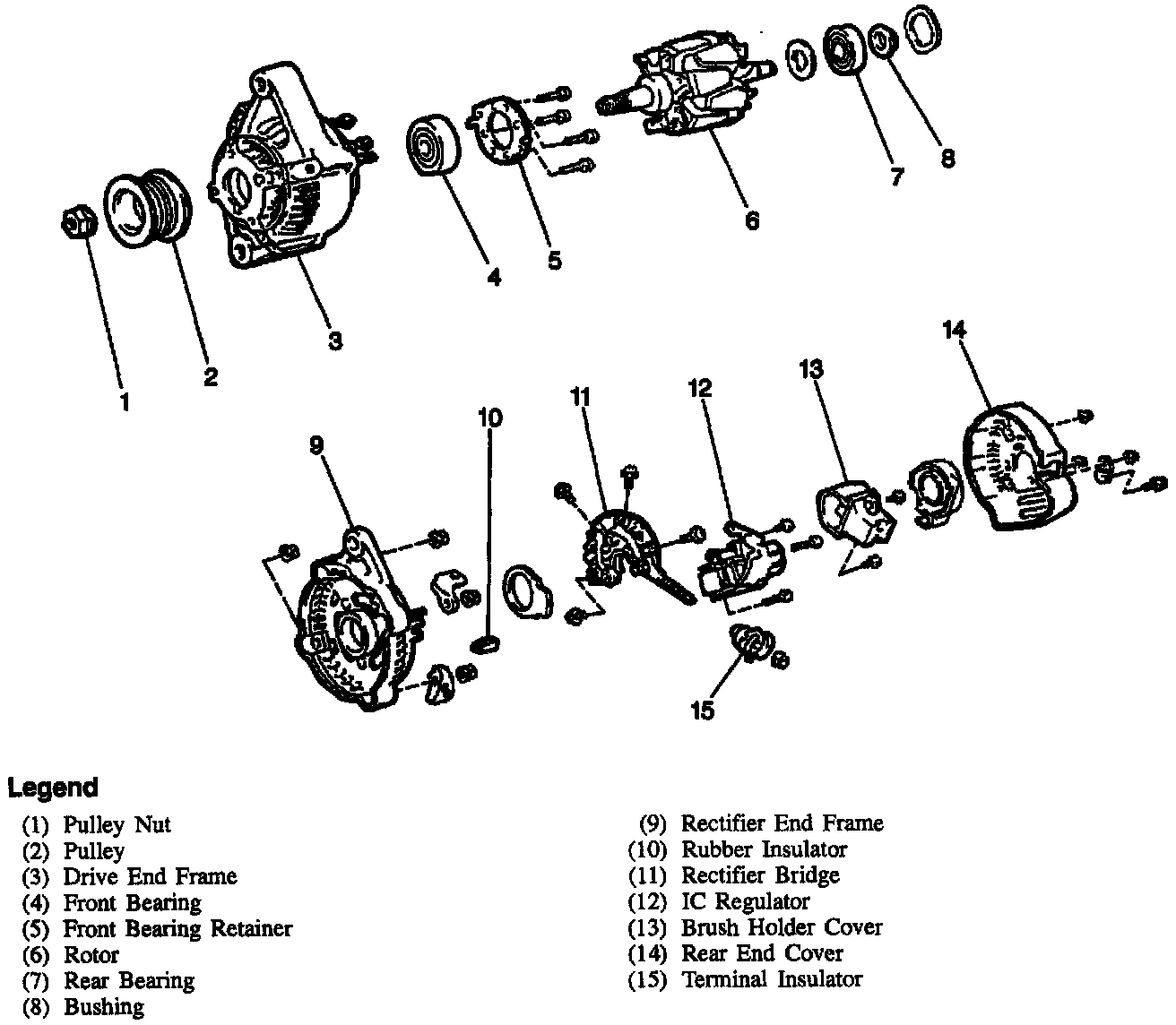

Generator Replacement:
Generator Assembly Components:
