Torque Specifications

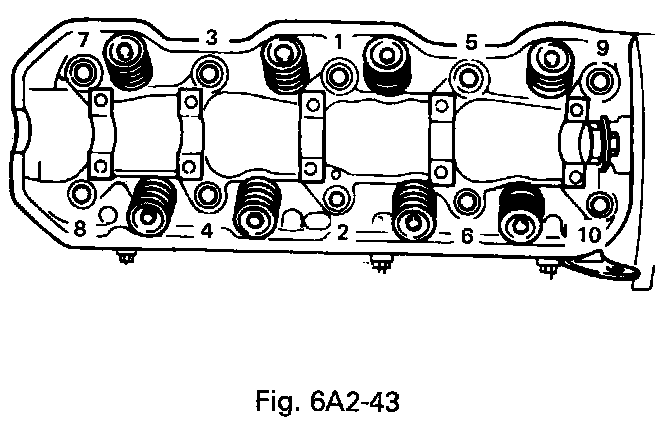

Cylinder Head Torque Sequence
Torque in sequence:
1st pass 75 nm (58 ft.lb.)
2nd pass 98 nm (72 ft.lb.)









Component Torque Specifications
Nm (ft.lb.)

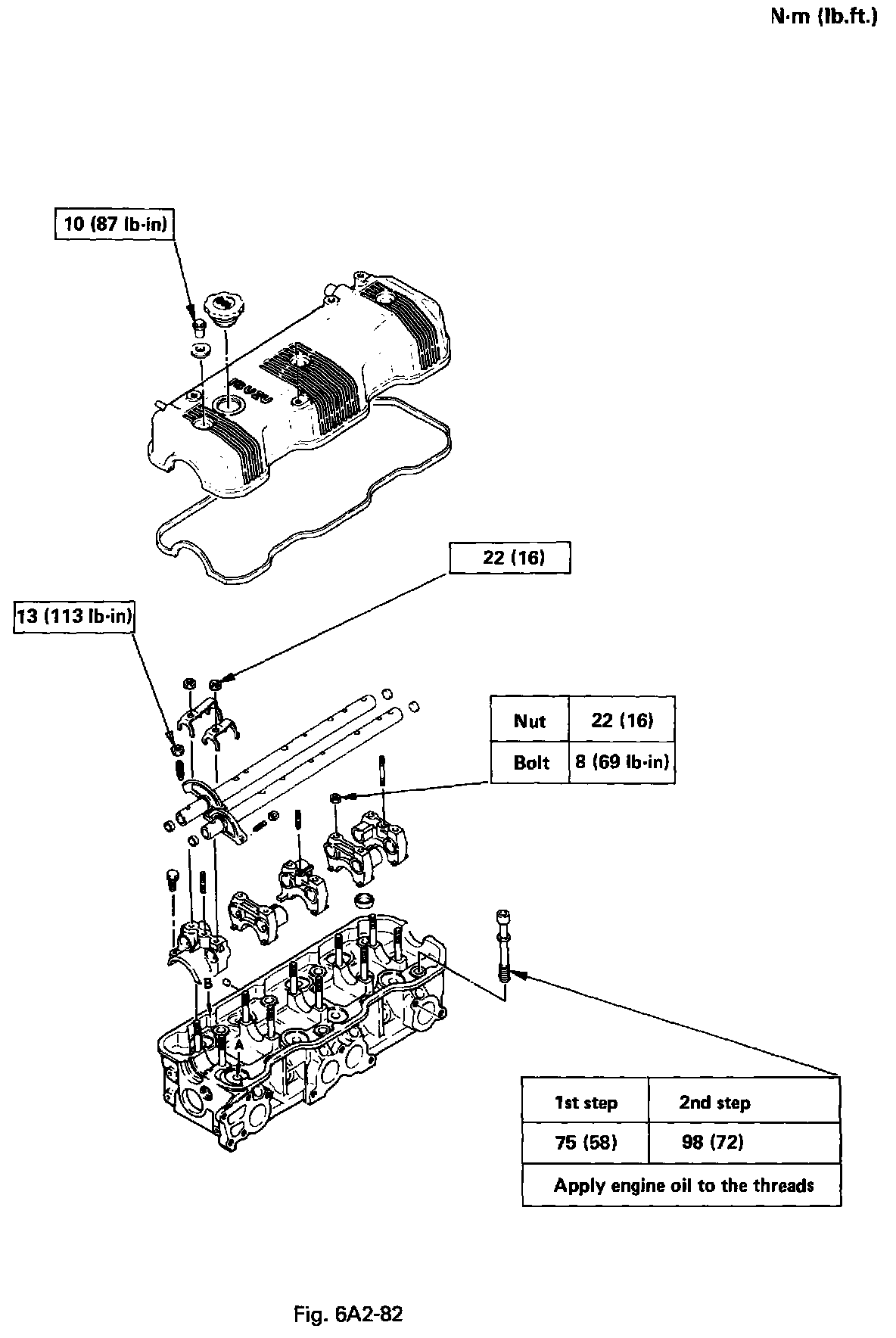

Cylinder Head Cover, Cylinder Head, and Rocker Arm Shaft Bracket Torque Specifications
Nm (ft.lb.)

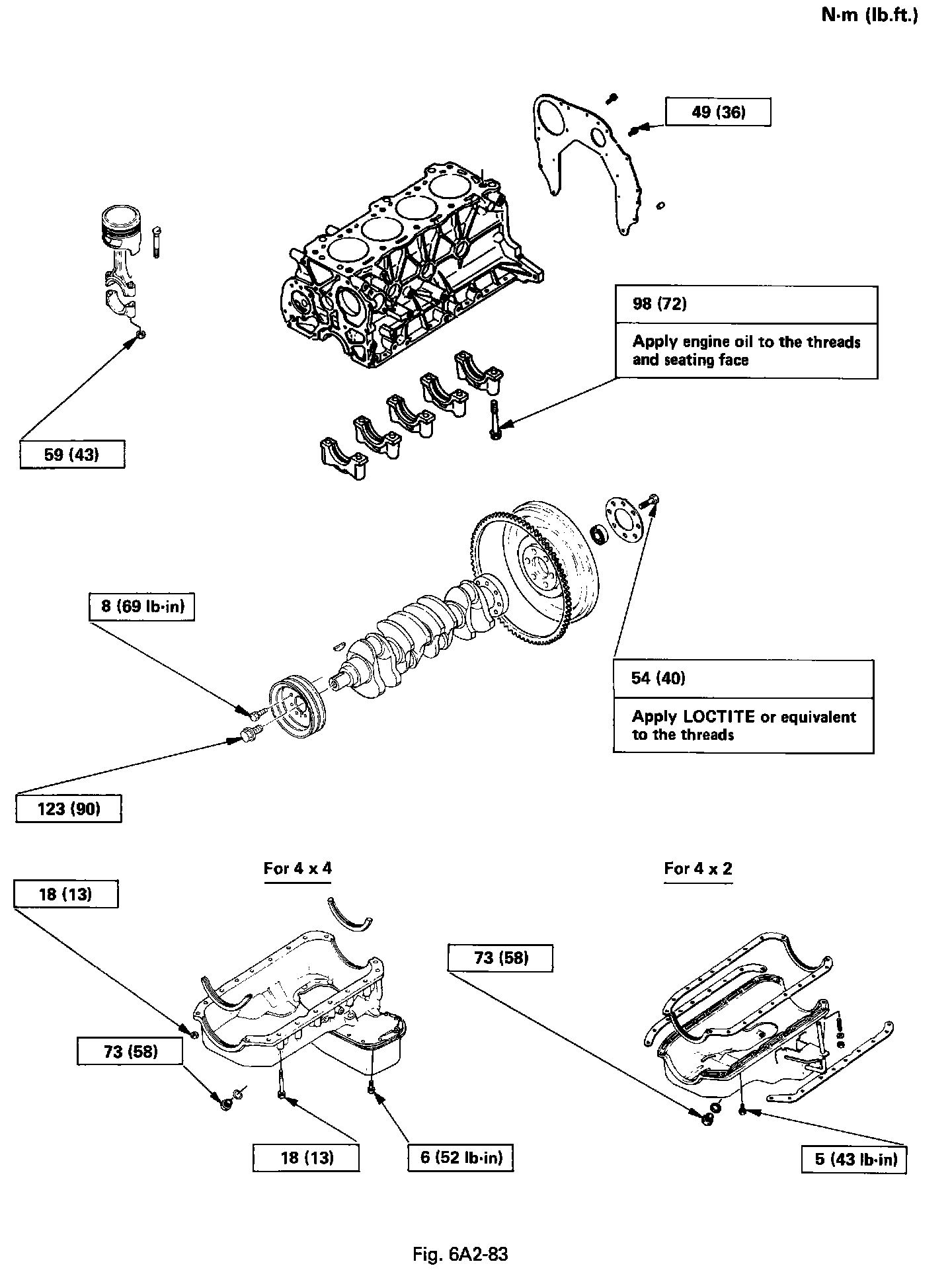

Crankshaft Bearing Cap, Connecting Rod Bearing Cap, Crankshaft Damper Pulley, Flywheel, and Oil Pan Torque Specifications
Nm (ft.lb.)

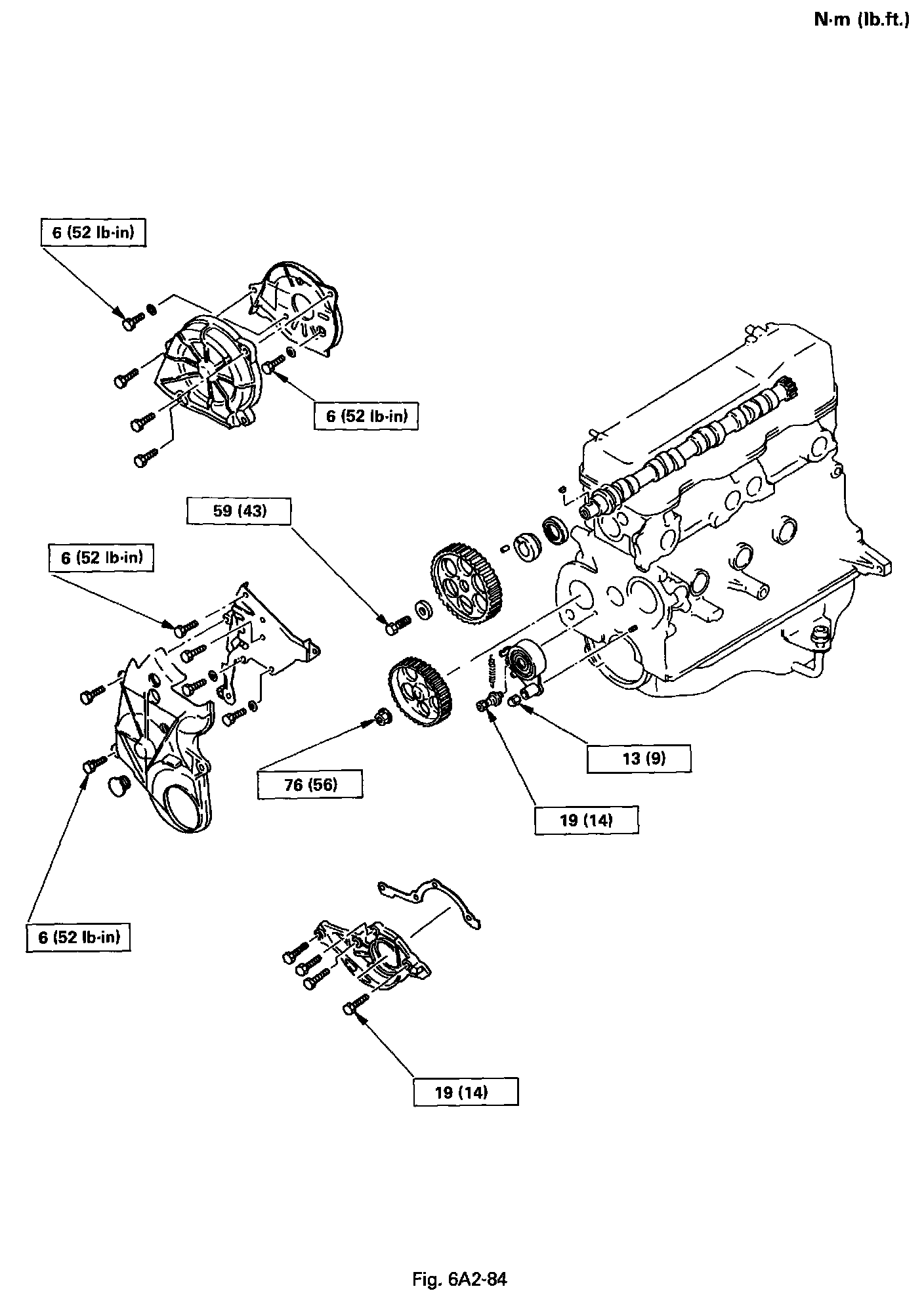

Timing Cover, Camshaft, and Timing Pulley Torque Specifications
Nm (ft.lb.)

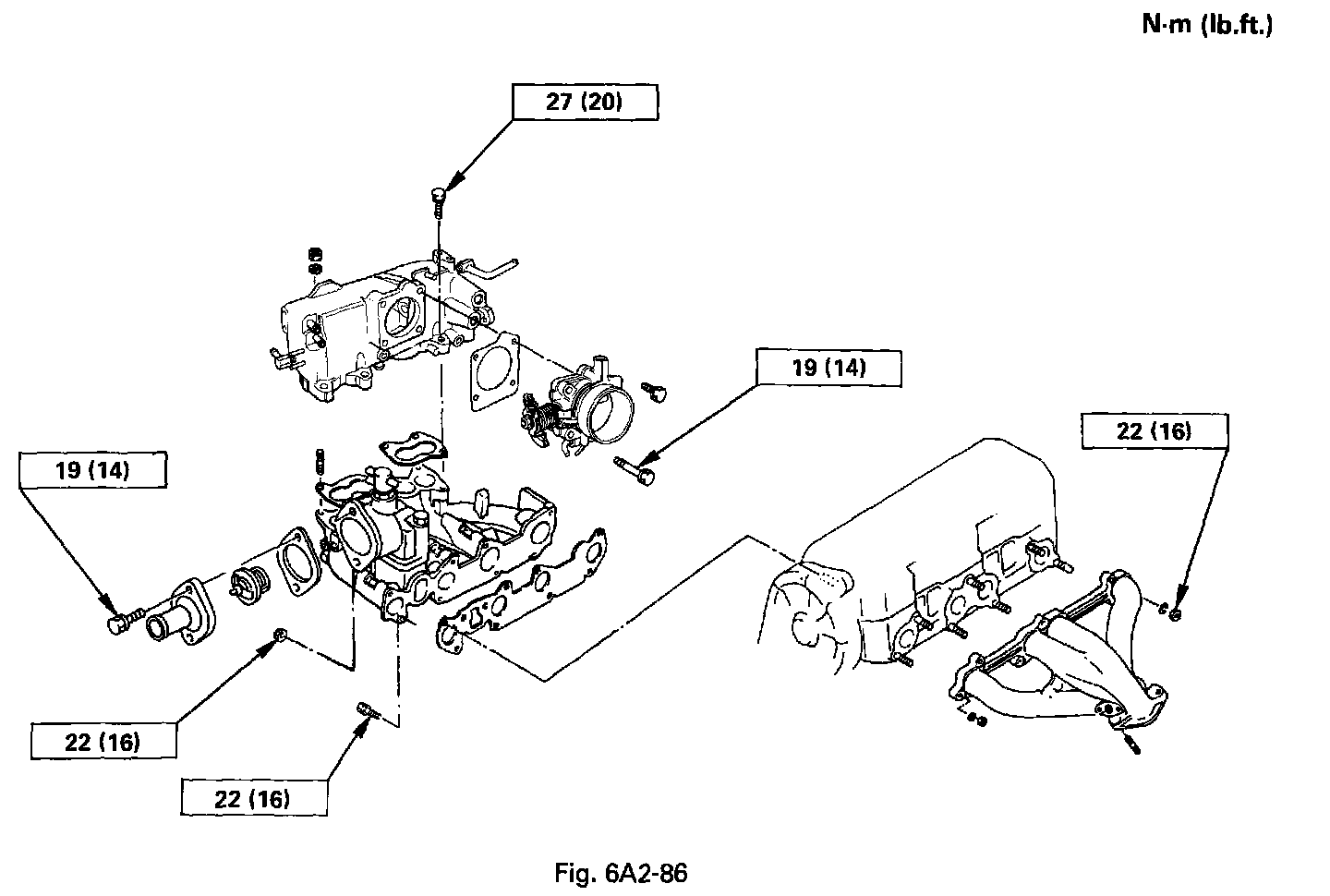

Intake Manifold, Plenum, and Exhaust Manifold Torque Specifications
Nm (ft.lb.)
