Cruise Control Module: Service and Repair

Removal
1. Disconnect the battery ground cable.

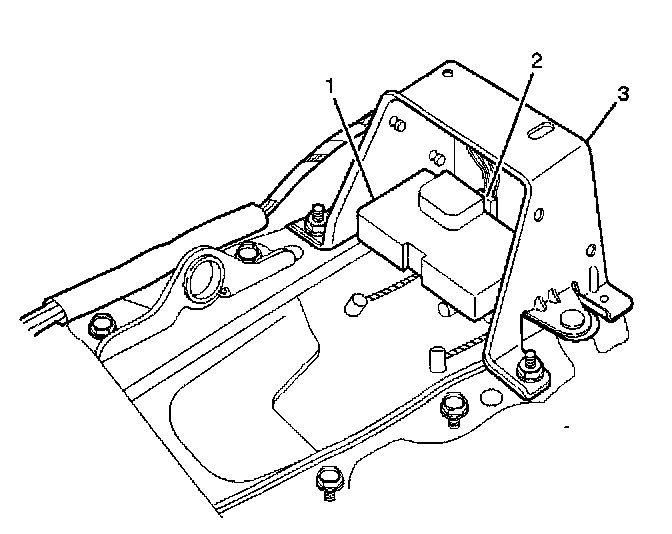

2. Remove the rear console box assembly.
^ Remove four screws. 3. Remove the cover (3).
^ Remove four nuts.




4. Remove the cruise control unit (1).
^ Disconnect the connector (2).

Installation
To install, follow the removal steps in the reverse order.
