Torque Specifications

Cylinder Head Cover, Cylinder Head, Camshaft Bracket, Common Chamber, EGR Valve And EGR Pipe:

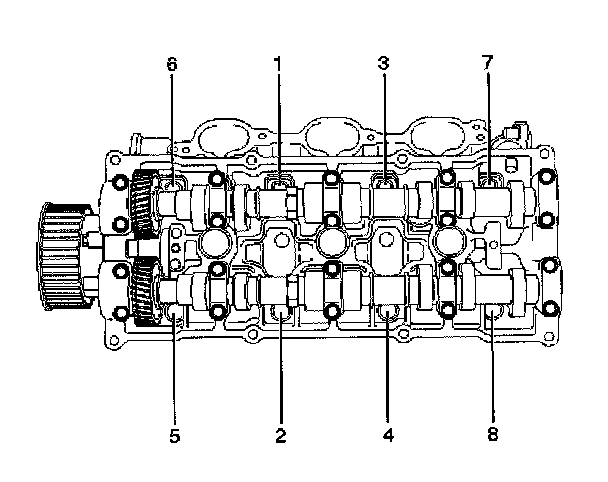

Using J-24239-01 cylinder head bolt wrench, tighten bolts in numerical order as shown in the illustration to the specified torque.

NOTES:
Do not reuse cylinder head bolts.
Do not apply any lubricant to the cylinder head bolts.

Torque:
Temporary 29 Nm (21 ft. lbs.)
Final 64 Nm (47 ft. lbs.)

Crankshaft Main Bearing, Flywheel, Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer And Water Pump:

Connecting Rod And Water Pump:

Engine Mount:

Cylinder Block Side Bolts 39 Nm (29 ft. lbs.)



NOTES:
Do not apply engine oil to the crank case side bolts.
Tighten all the bolts to the specified torque in the order shown.







Flywheel fixing bolts 54 Nm (40 ft. lbs.)

NOTE: Do not reuse the bolts and do not apply oil or thread lock to the bolts.
