Map Light

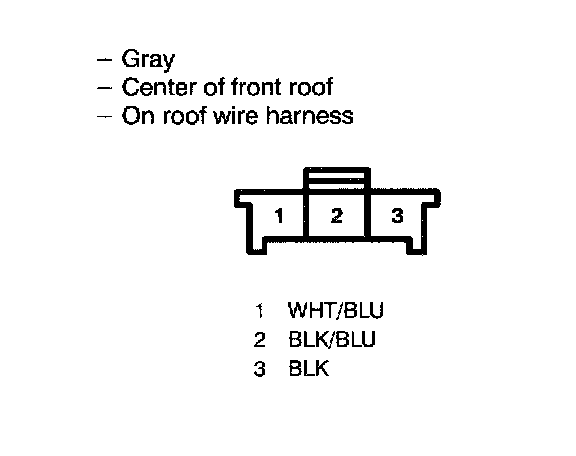

Individual MAP Light, Front (Homelink Unit):

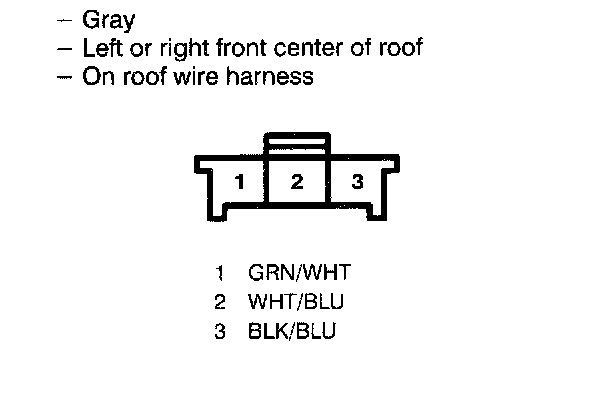

Individual MAP Light, Left and Right Front:

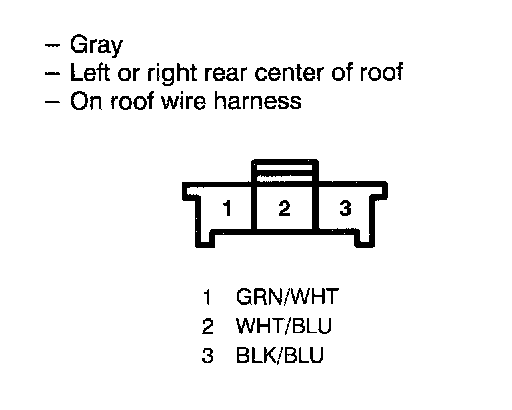

Individual MAP Light, Left and Right Rear:
