Radiator Cooling Fan Temperature Sensor / Switch
Radiator Cooling Fan Temperature Sensor / Switch

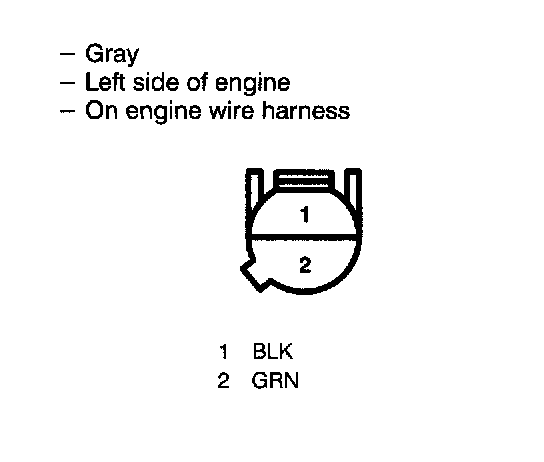

Radiator Fan Switch A:

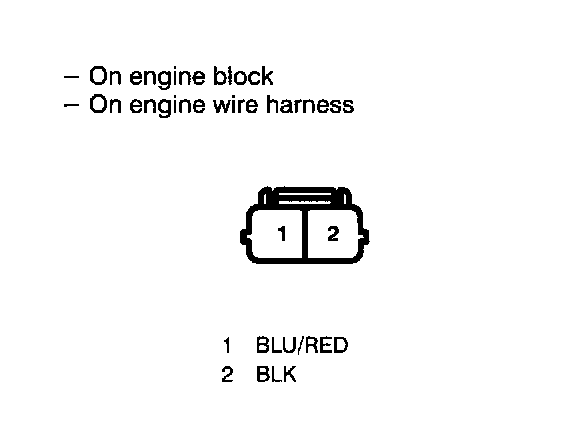

Radiator Fan Switch B:
