Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda Truck
>>
1999
>>
Odyssey EX V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Relay
Wiper Relay

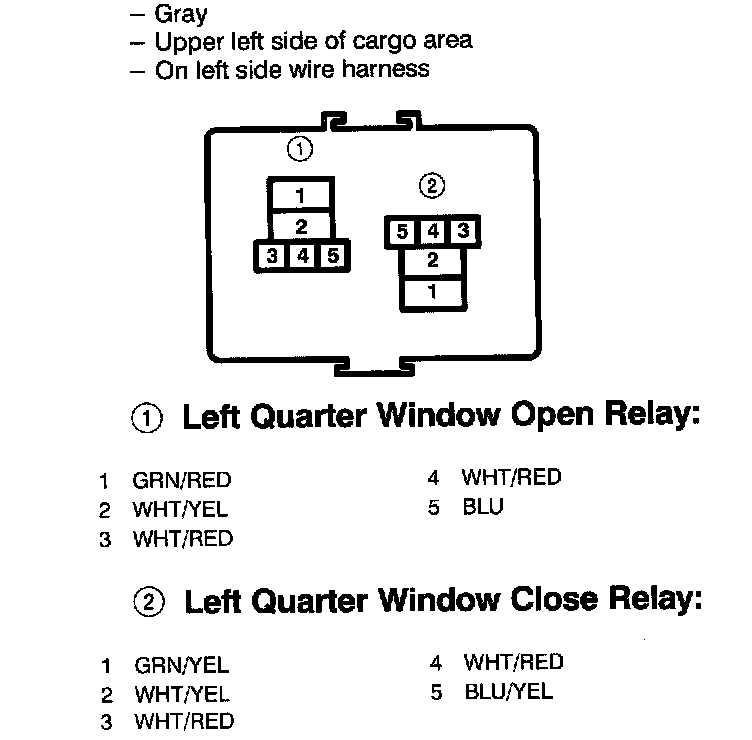

Left Quarter Open/Close Relay - Multi-Fuse/Relay Box:
