Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda Truck
>>
1999
>>
Odyssey EX V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Console
>>
With Navigation
With Navigation
Dash And Console Lights With Navigation (Part 1 Of 2):

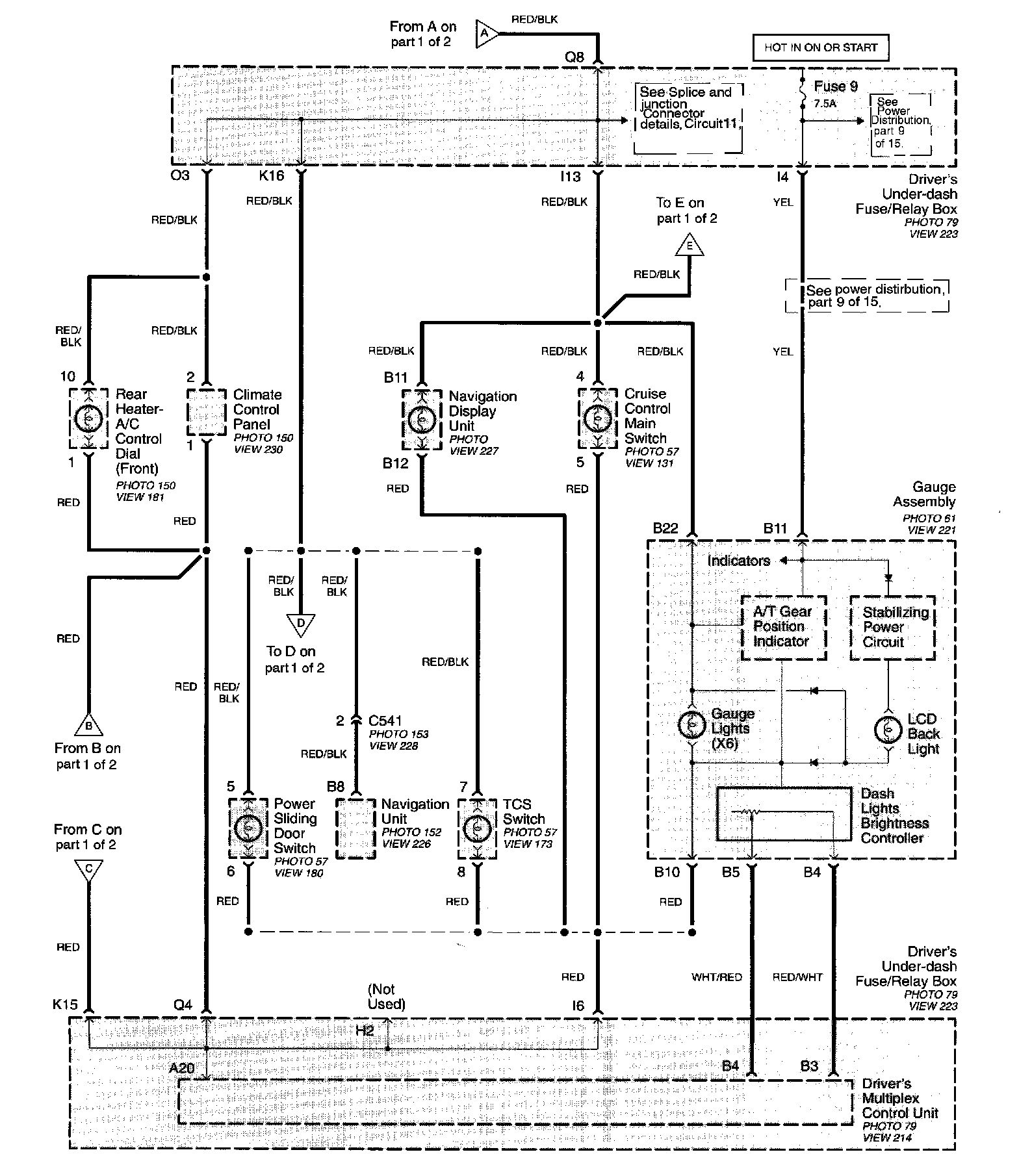

Dash And Console Lights With Navigation (Part 2 Of 2):
