Home
>>
Honda Truck
>>
1999
>>
Odyssey EX V6-3.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Connector Views
Connector Views

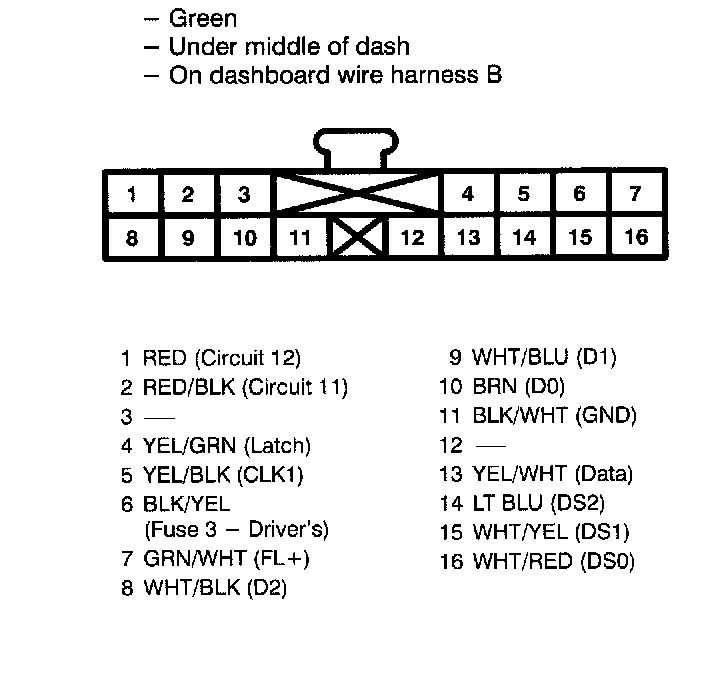

Climate Control Panel With Navigation:
Center Panel (Without Navigation - EX Model):
