Rear A/C Control Dial Removal and Installation

1. Remove the instrument panel together with the rear A/C control dial.

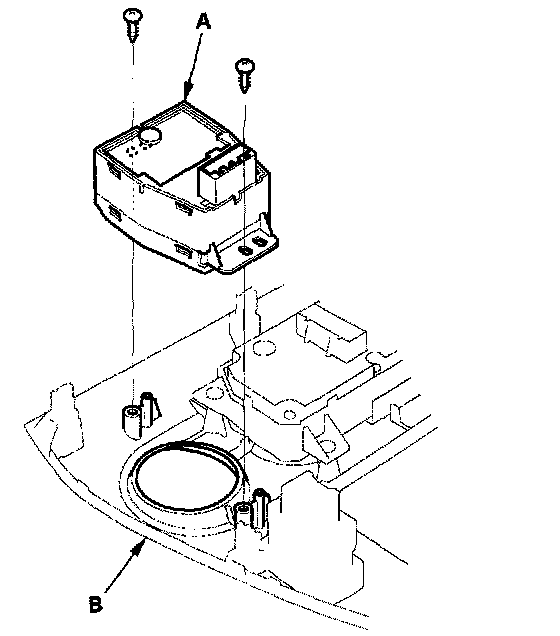

2. Remove the self-tapping screws and the rear A/C control dial (A) from the instrument panel (B).
3. Install in the reverse order of removal. After installation, operate the rear A/C control dial to see whether it works properly.
