Fuse to Components Index

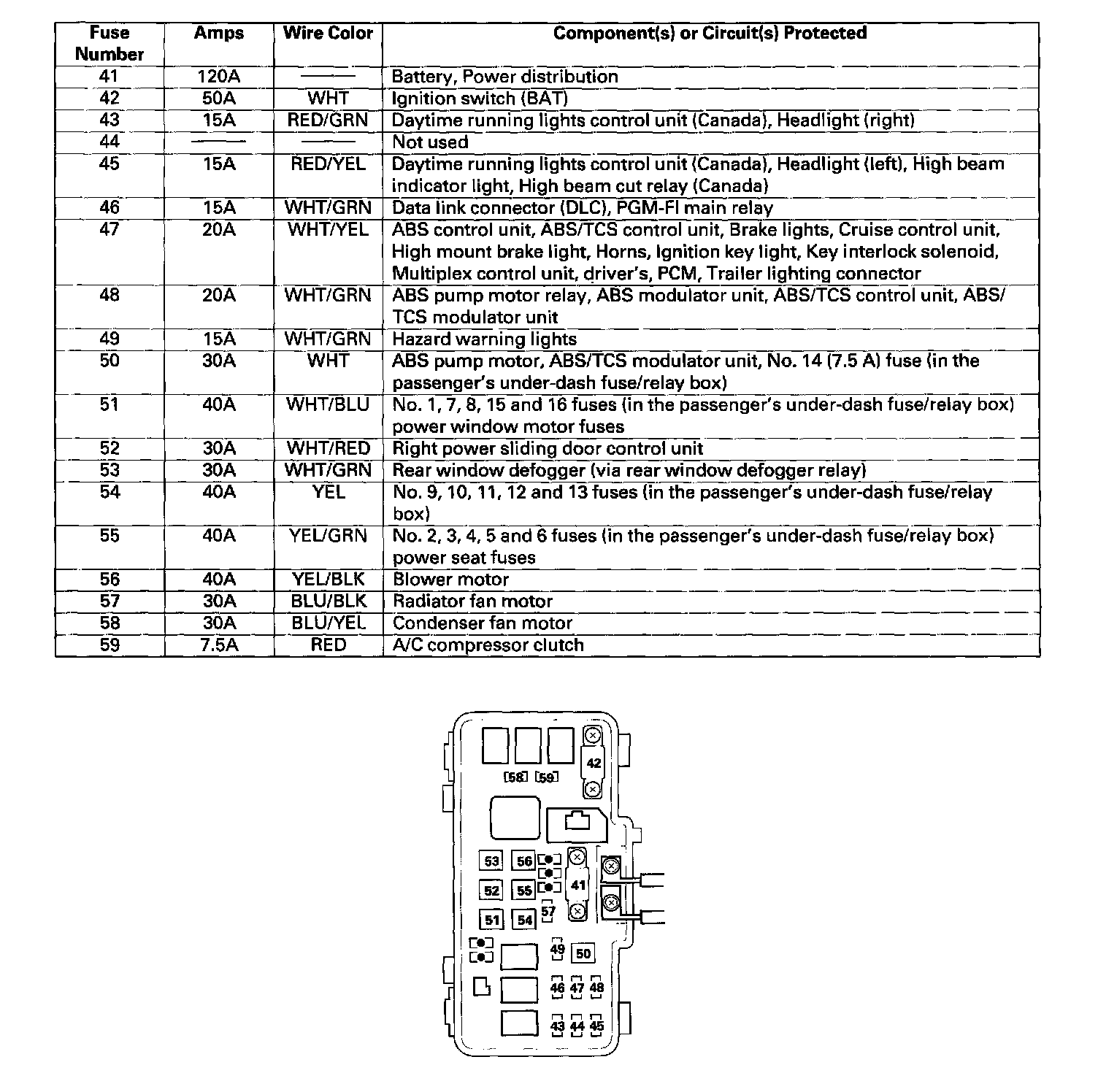

Under-hood Fuse/Relay Box:



Driver's Under-dash Fuse/Relay Box:



Passenger's Under-dash Fuse/Relay Box:



Multi-fuse/Relay Box:
