Idle Control System

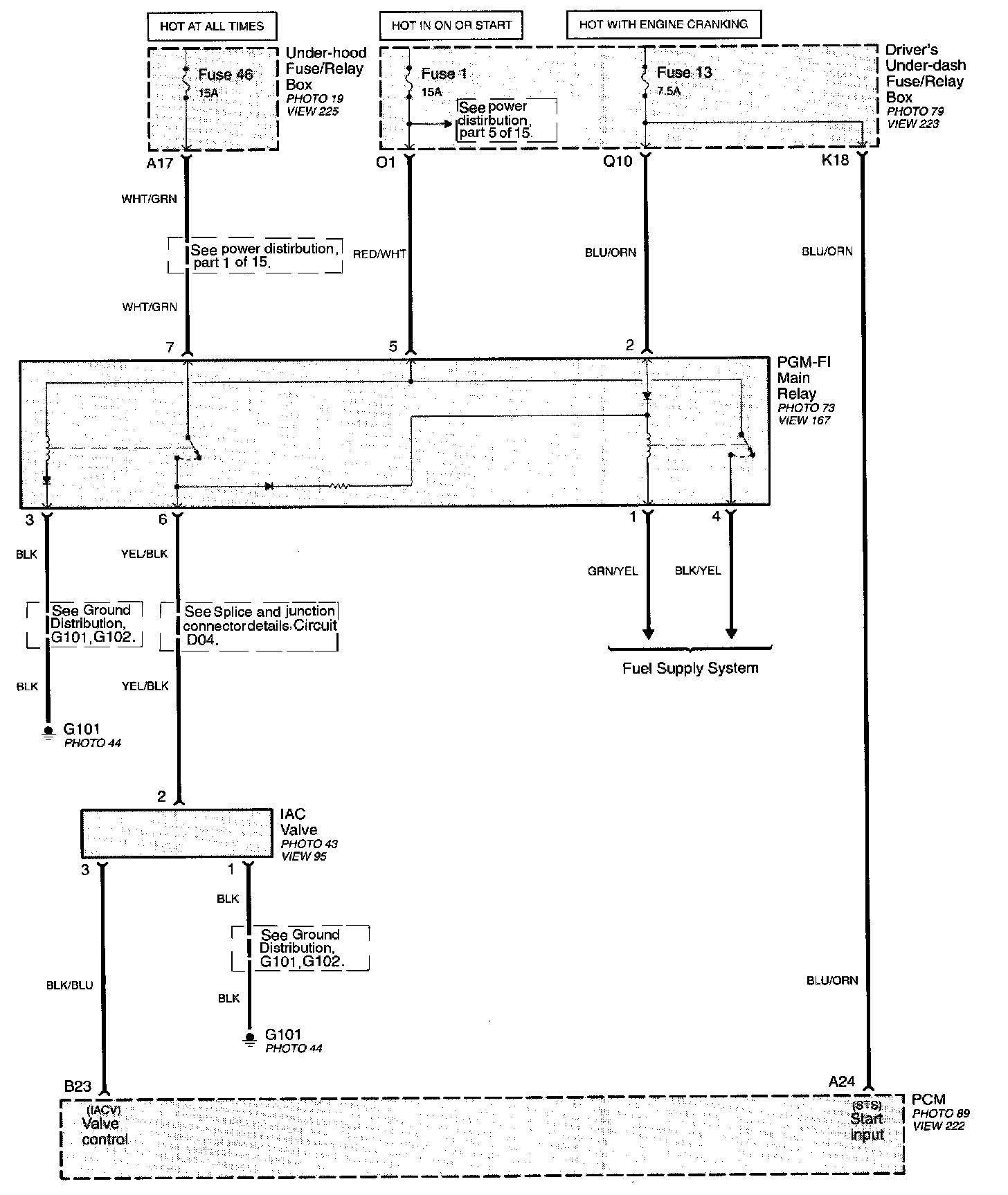

Part 1 Of 2:

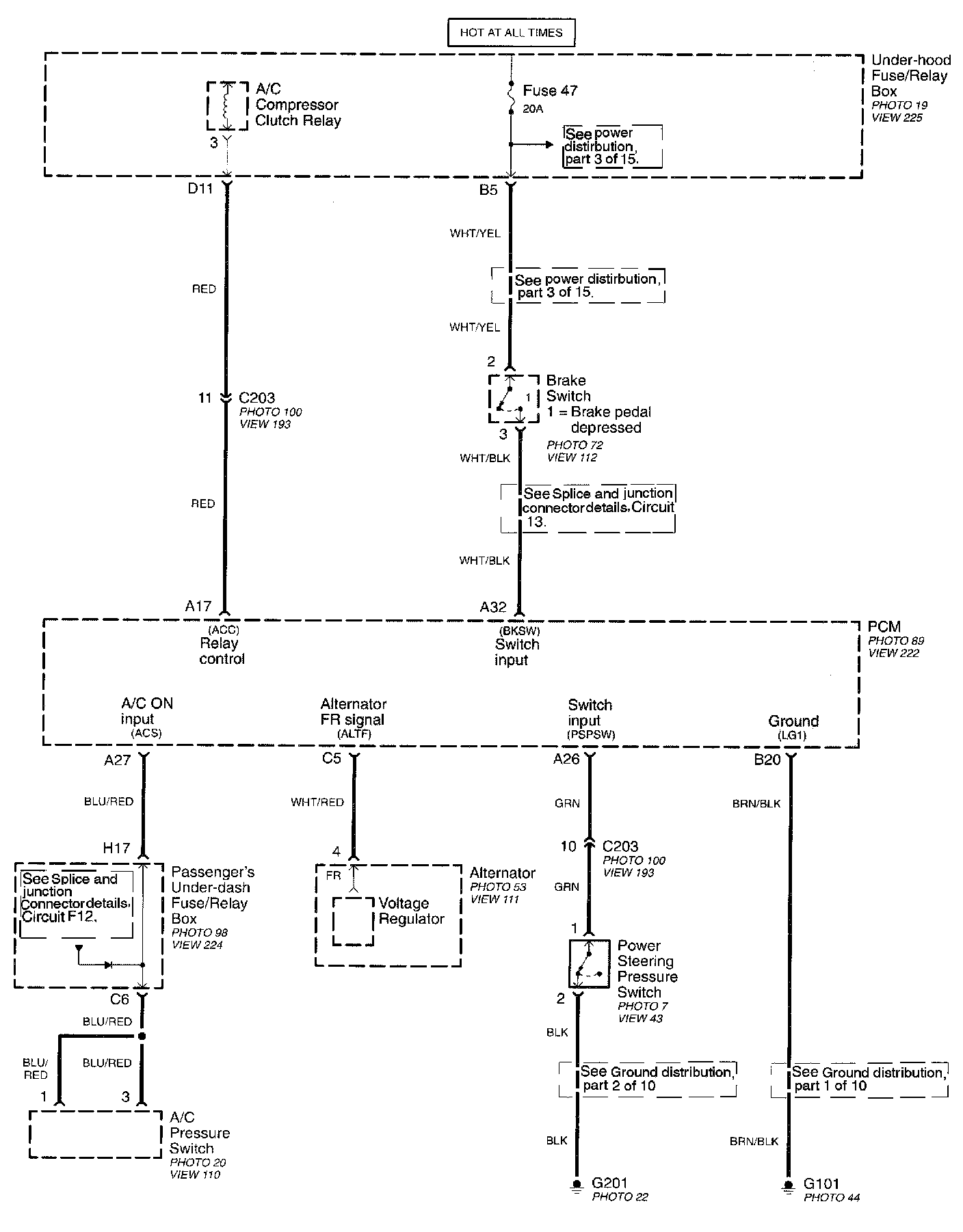

Part 2 Of 2:

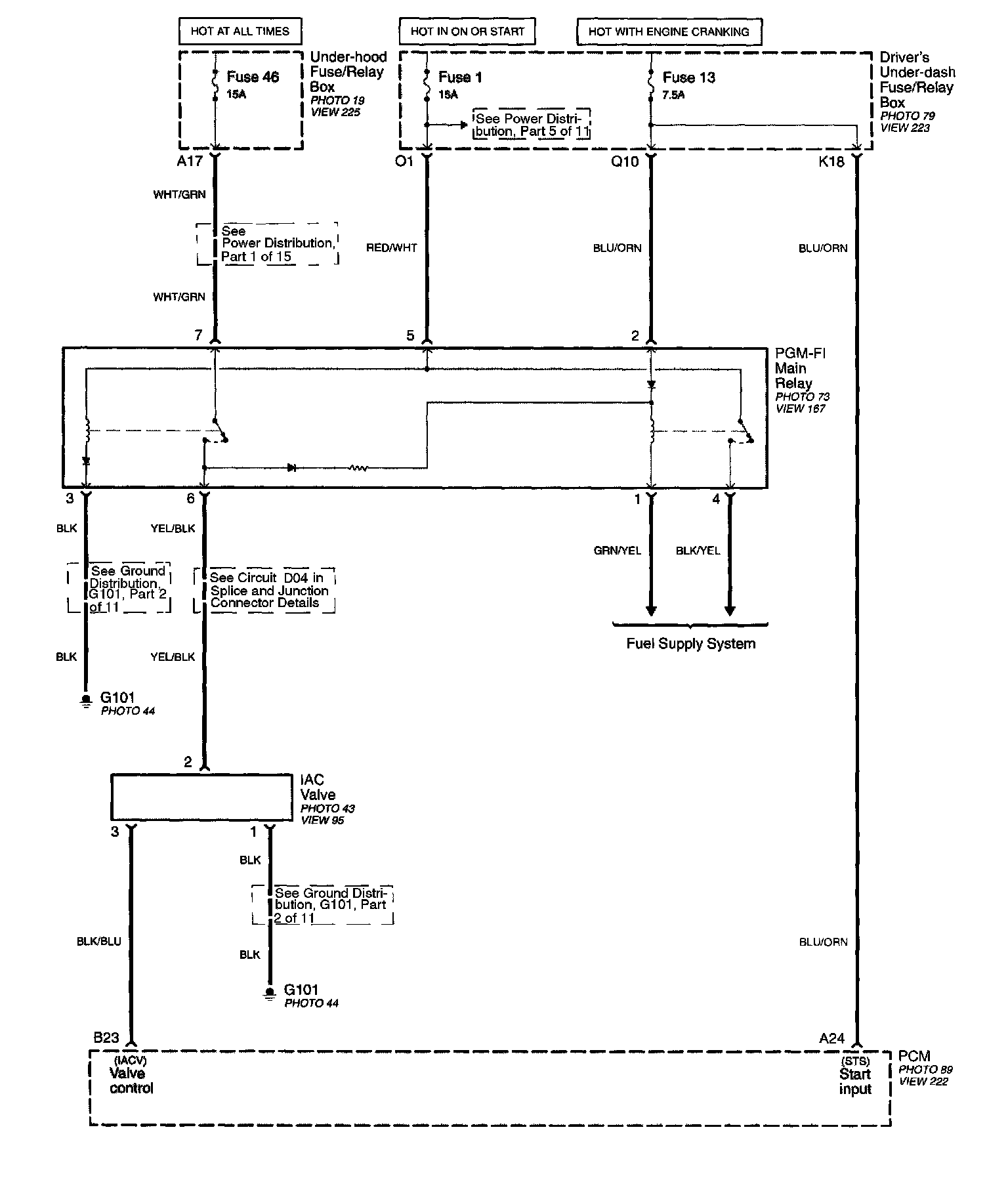

Idle Control System (Part 1 Of 2):



Idle Control System (Part 2 Of 2):
