Power Sliding Door Module: Locations

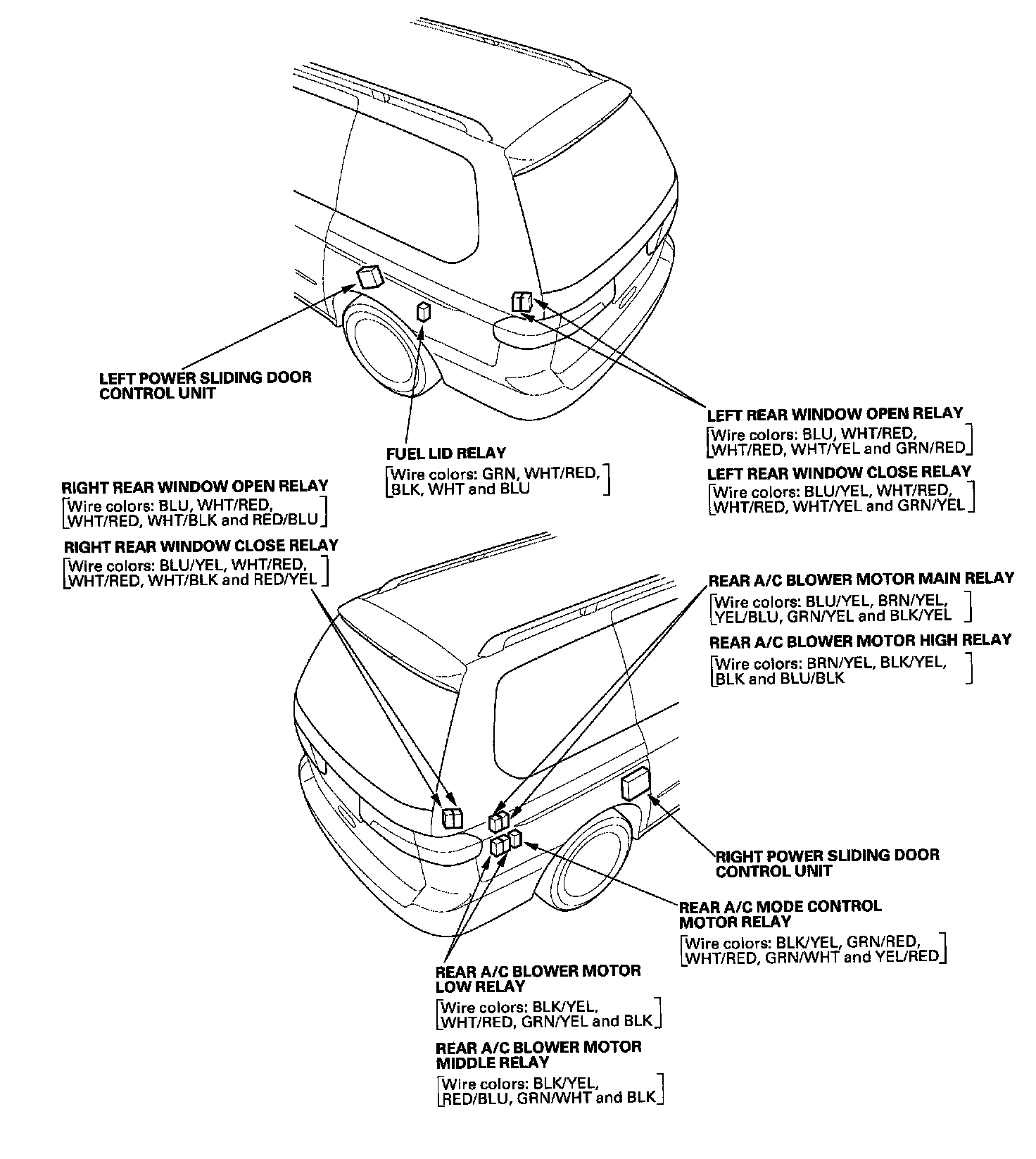

Rear Side View:



Doors Component Location Index (Sliding Door):



Relay And Control Unit Locations - Rear Side Trim:

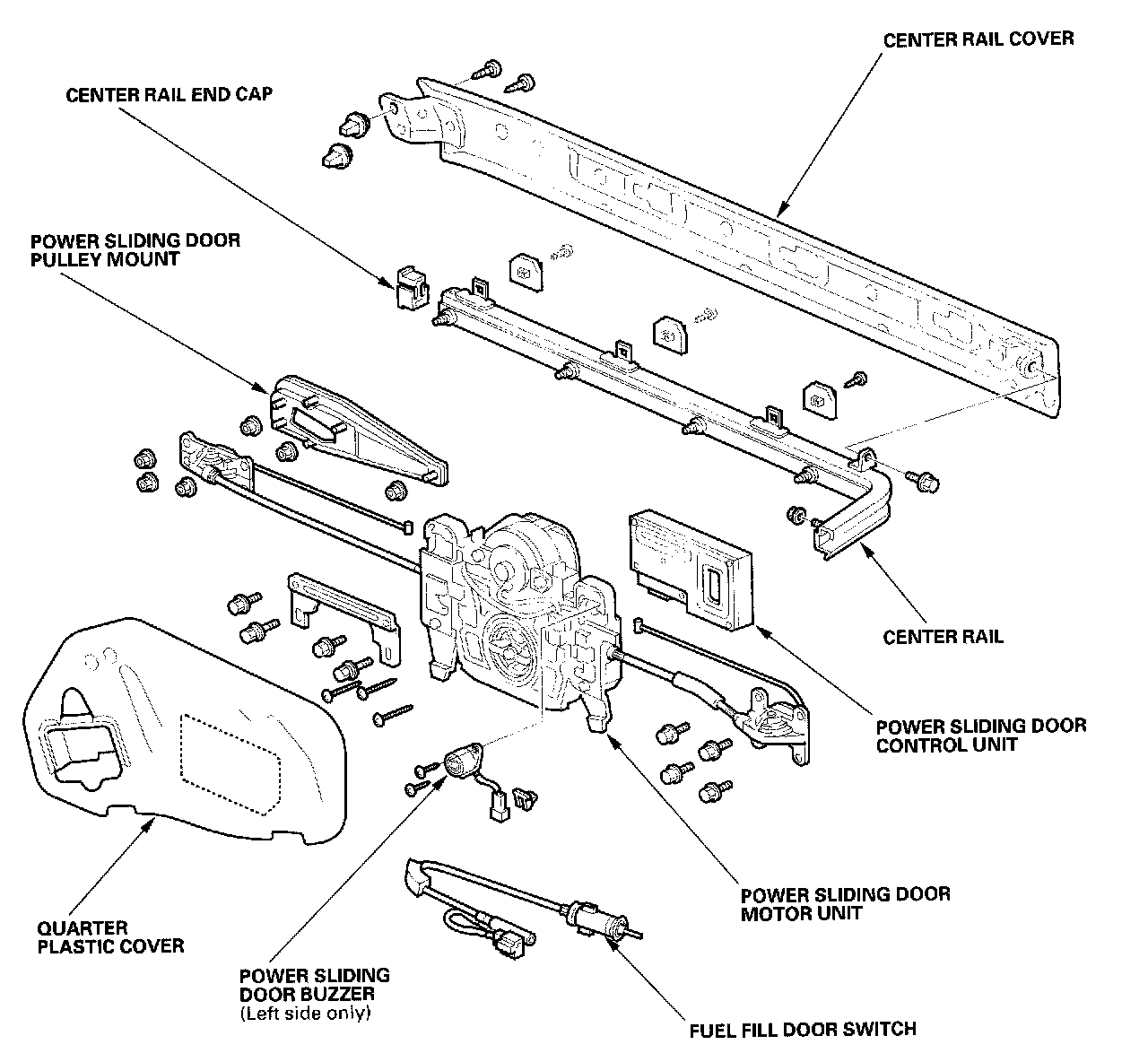

Power Sliding Doors Component Location Index:
