Power Window Control Module: Locations

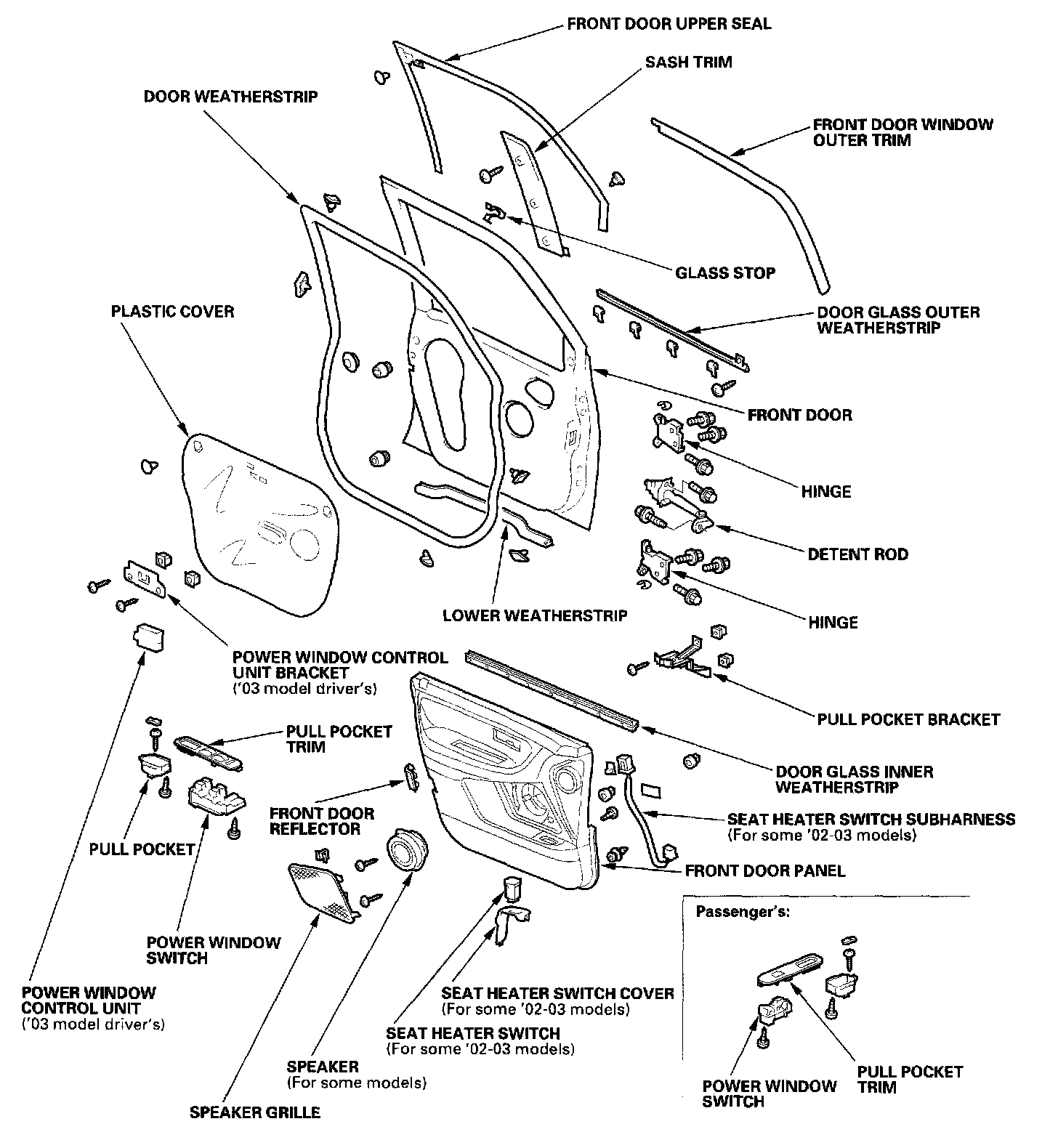

Doors Component Location Index (Front Door):

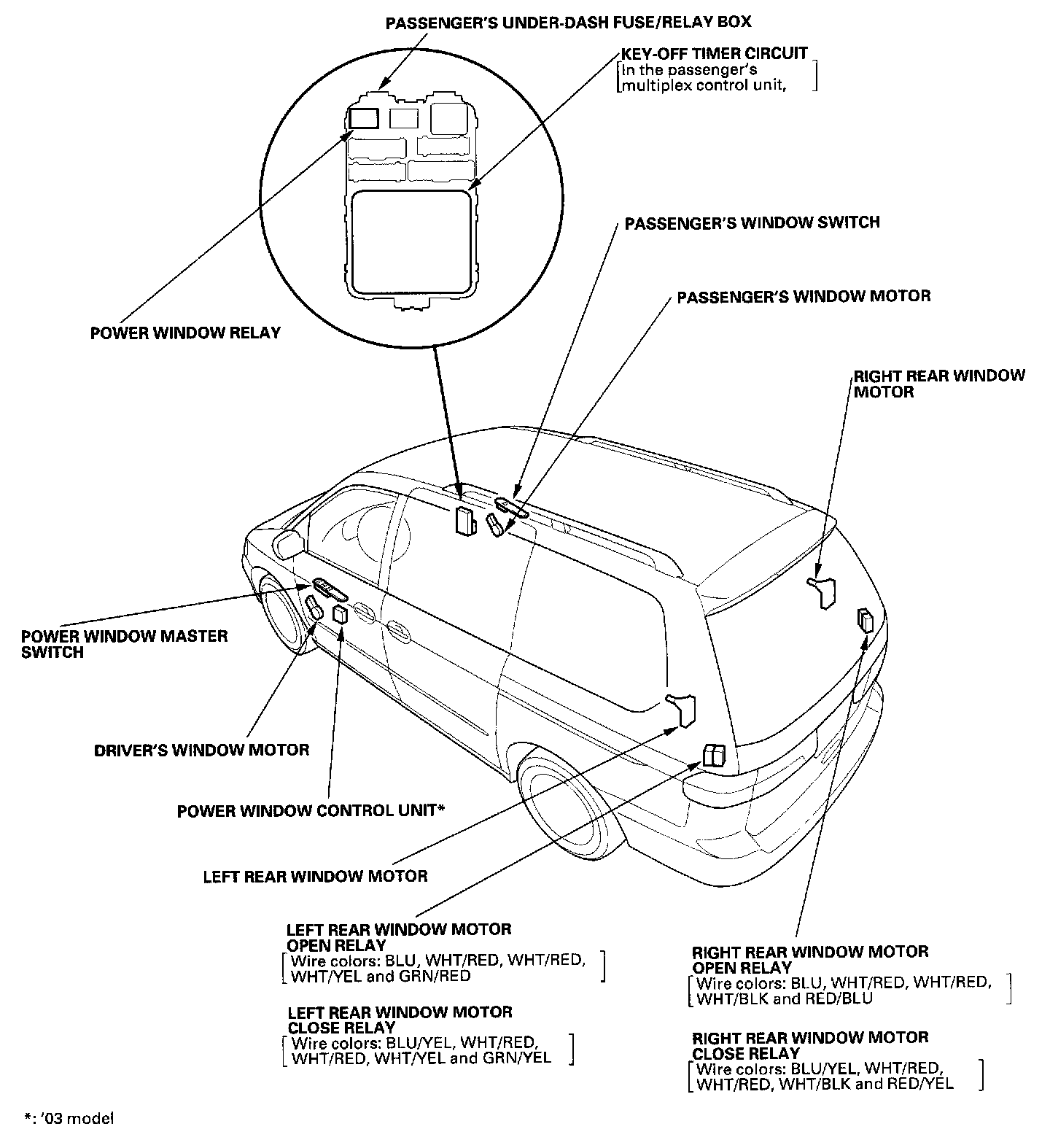

Power Windows Component Location Index:
