Crankshaft Main Bearing

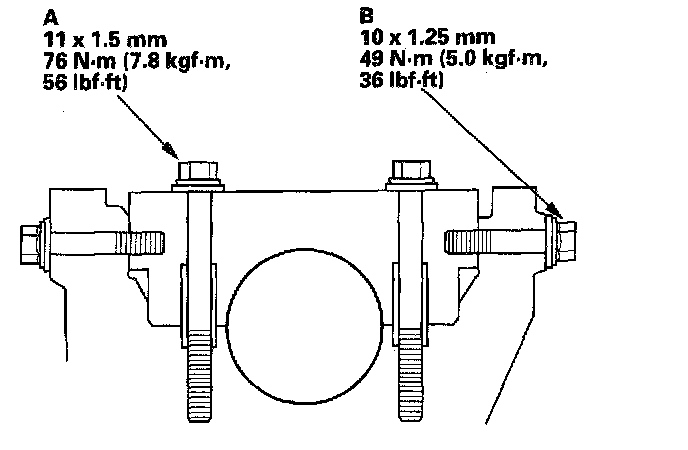

Main Bearing Cap Torque and Tightening Sequence

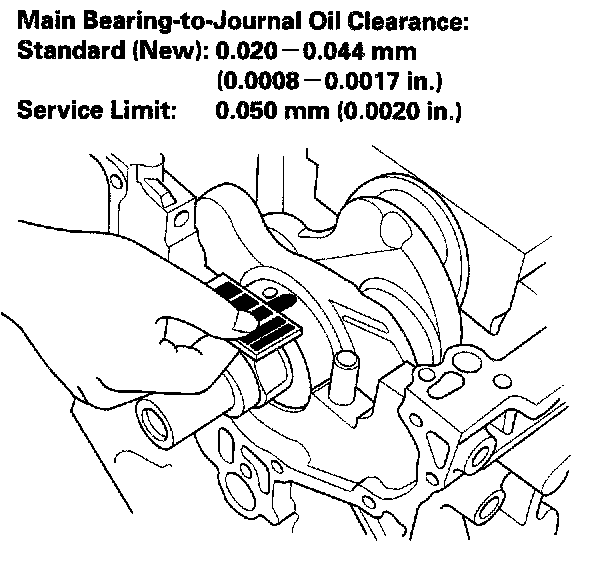

Main Bearing-to-Journal Oil Clearance

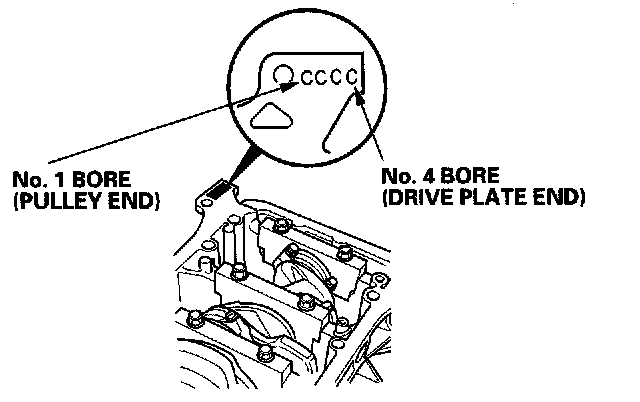

Crankshaft Bore Code Location
Letters or Bars have been stamped on the end of the block as a code for the size of each of the 4 main journal bores.

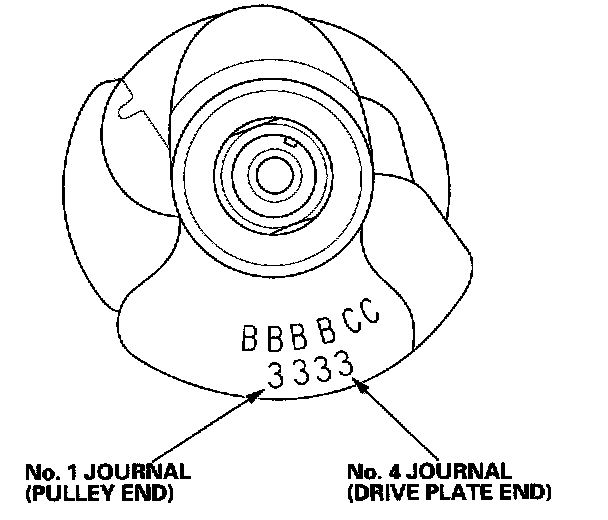

Main Journal Code Locations (Numbers or Bars)
Numbers or bars have been stamped on the crankshaft No. 1 web as a code for the main journal sizes.

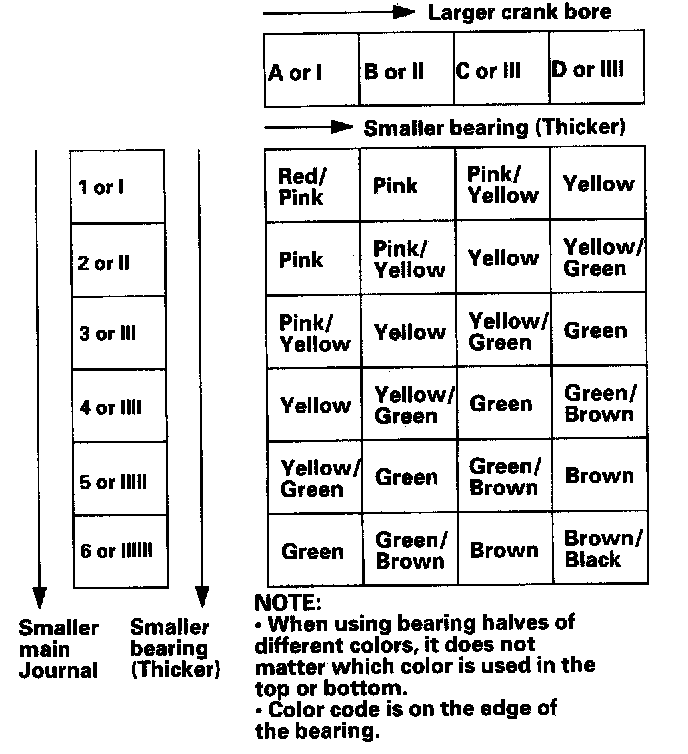

Main Bearing Selection Chart
