Exploded Views

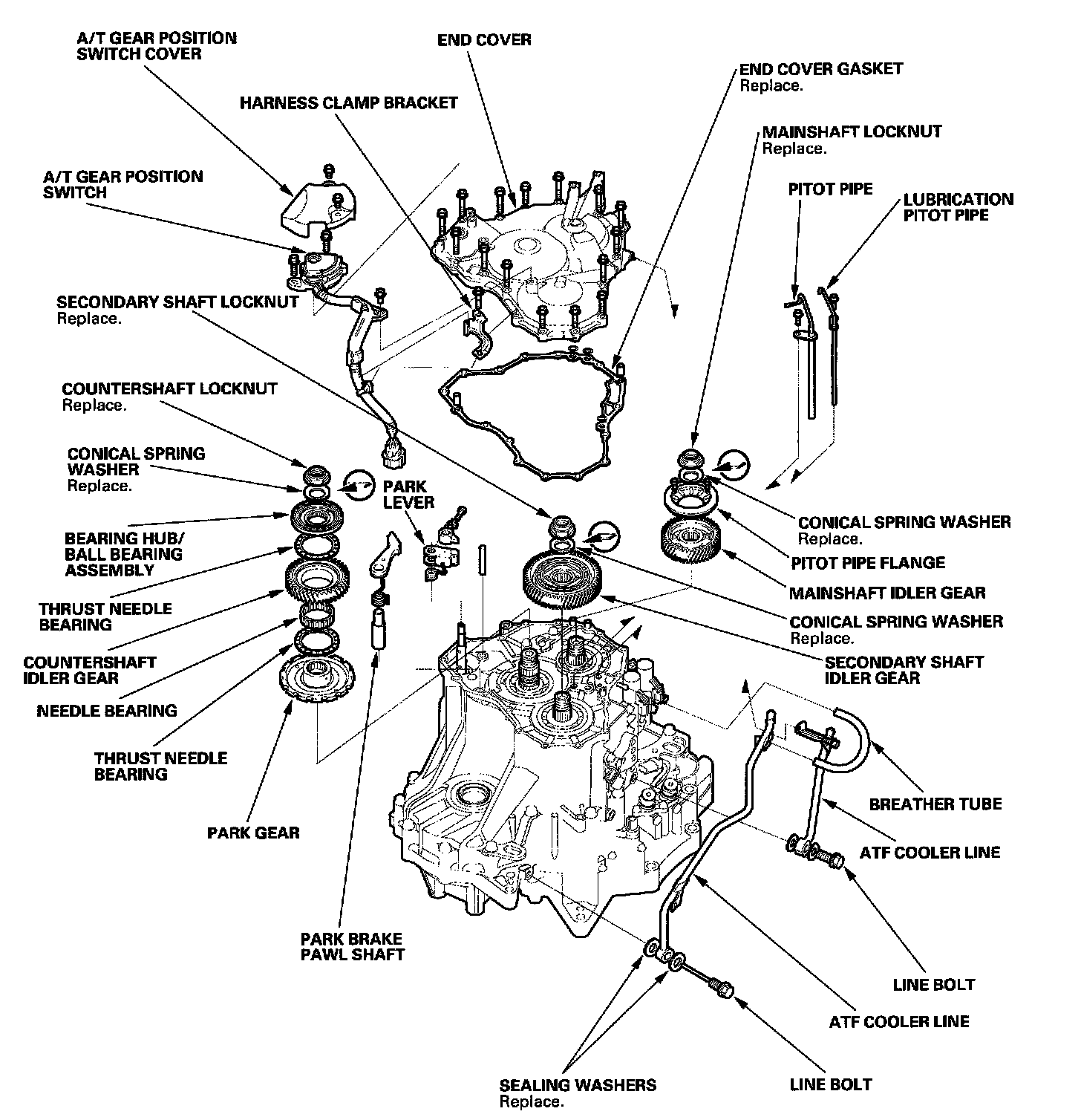

End Cover and Idler Gears Removal

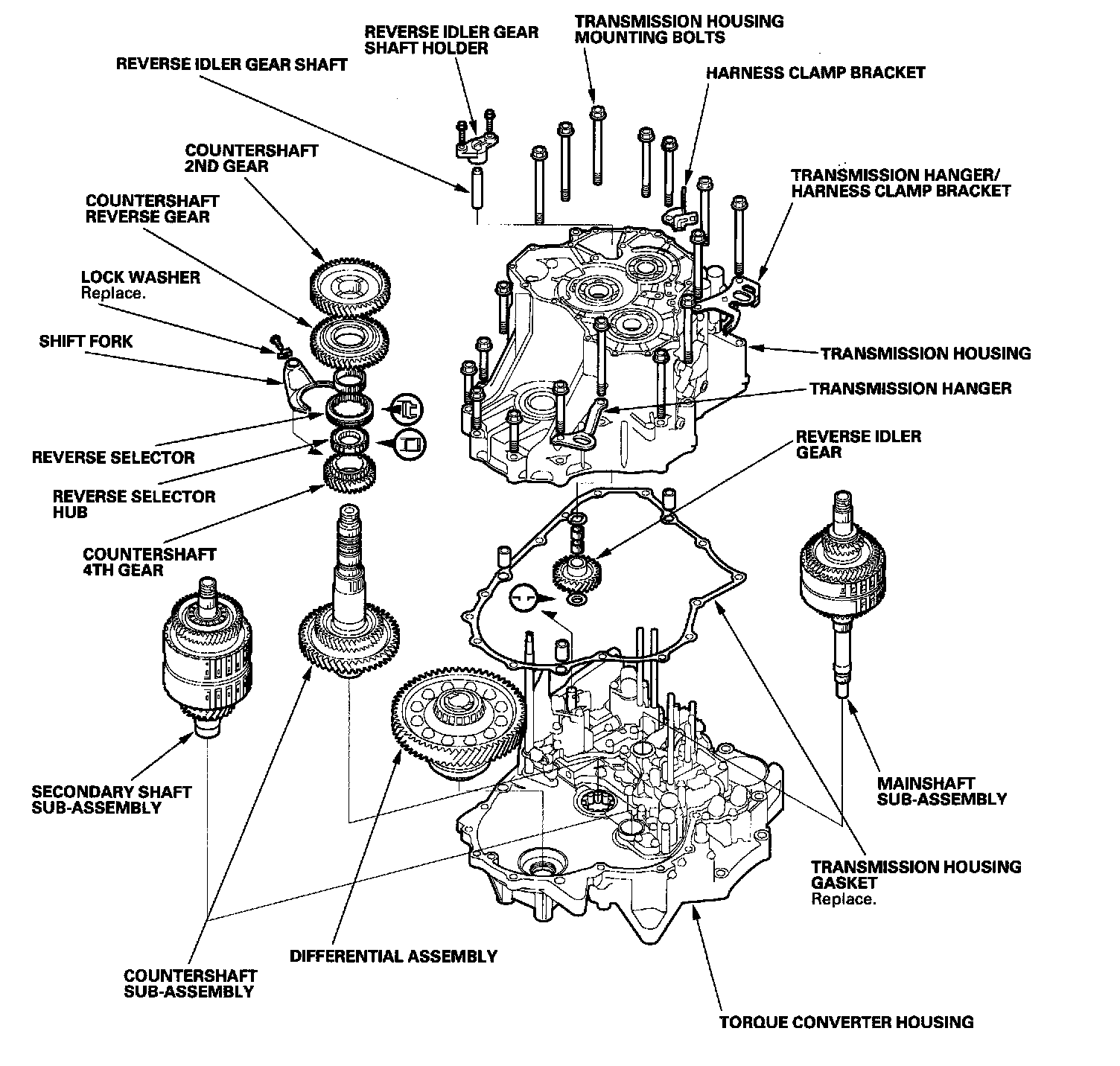

Housing and Shaft Assemblies Removal

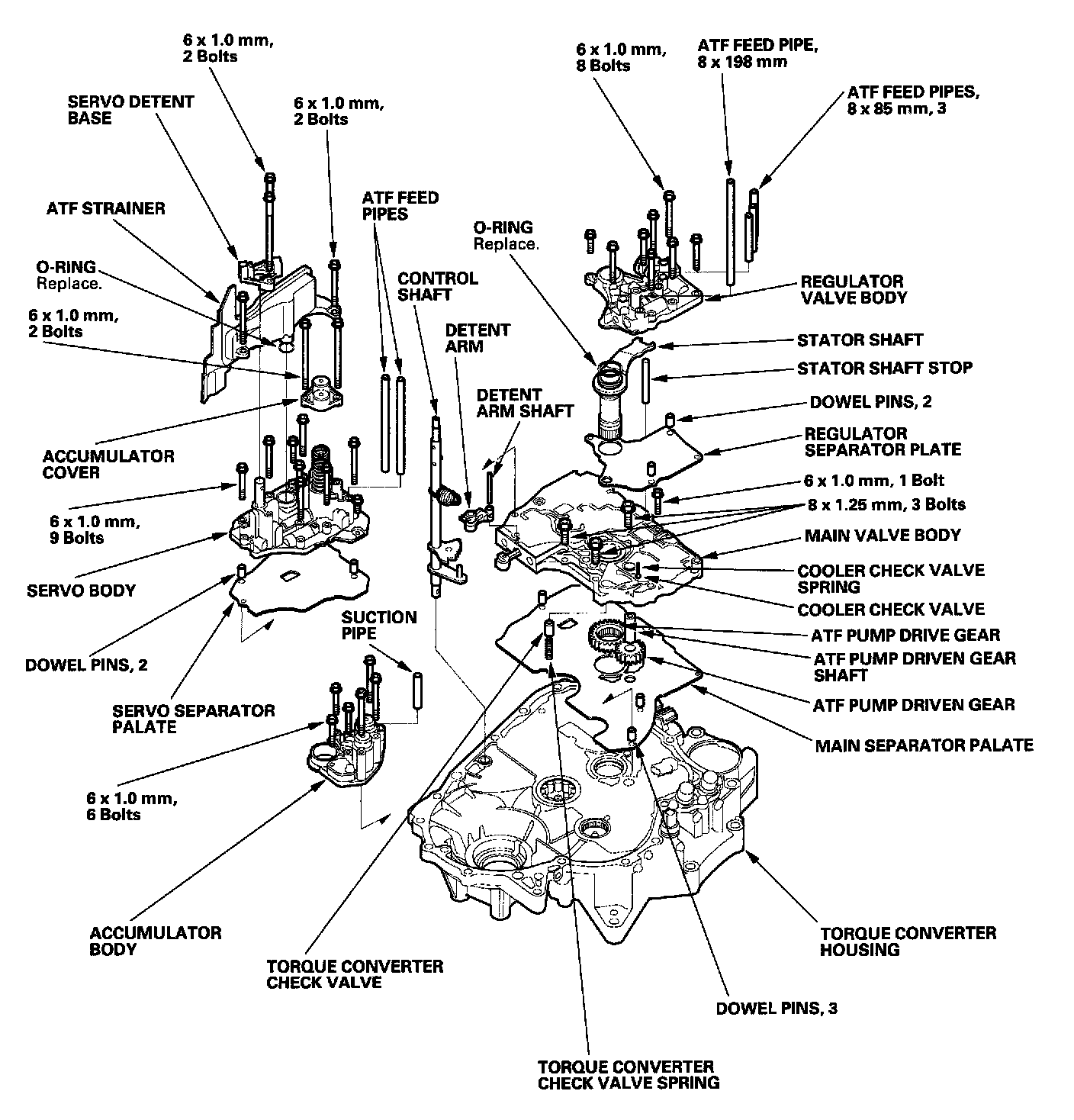

Valve Bodies and ATF Strainer Removal

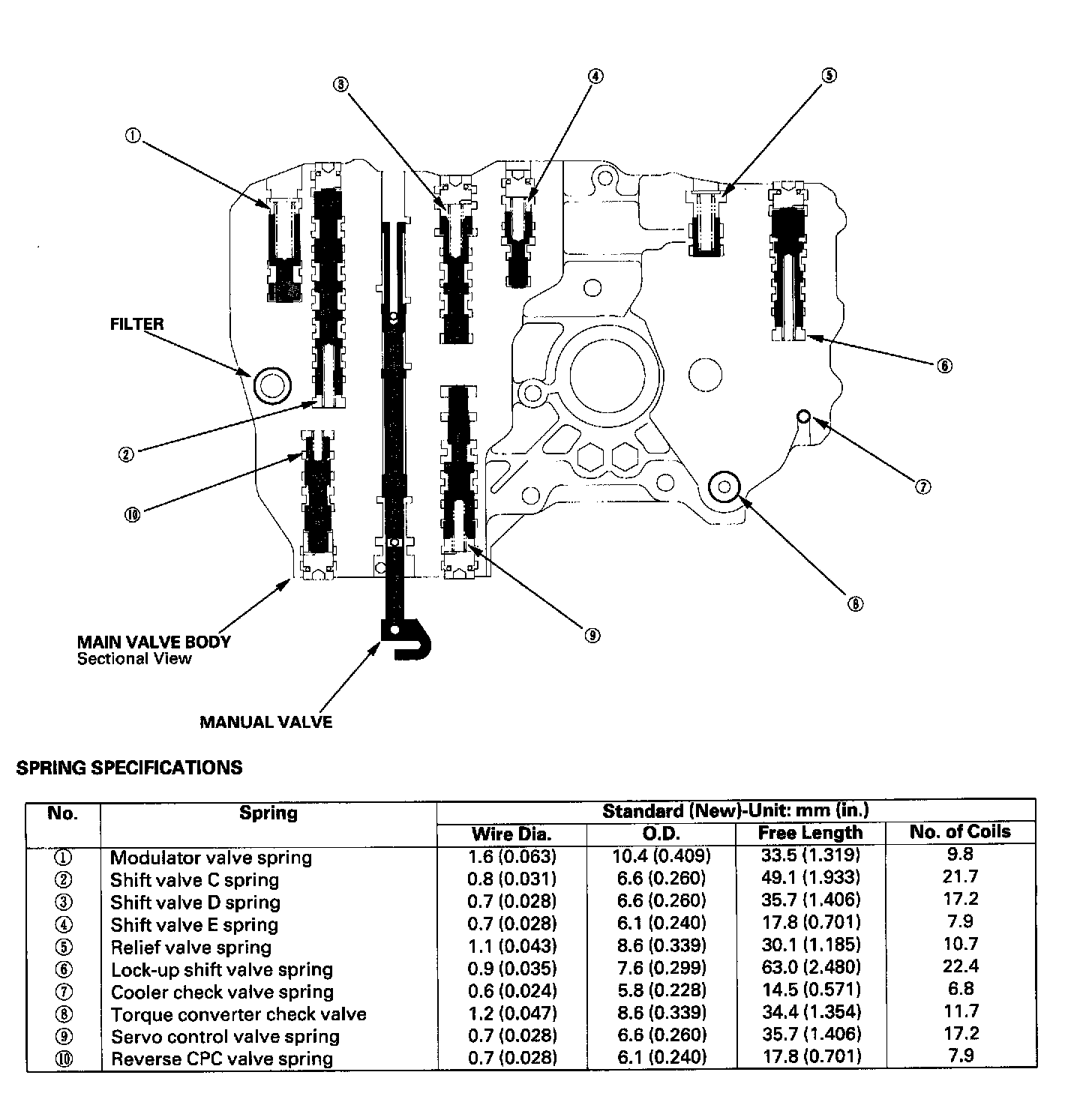

Main Valve Body, Valves / Sectional View

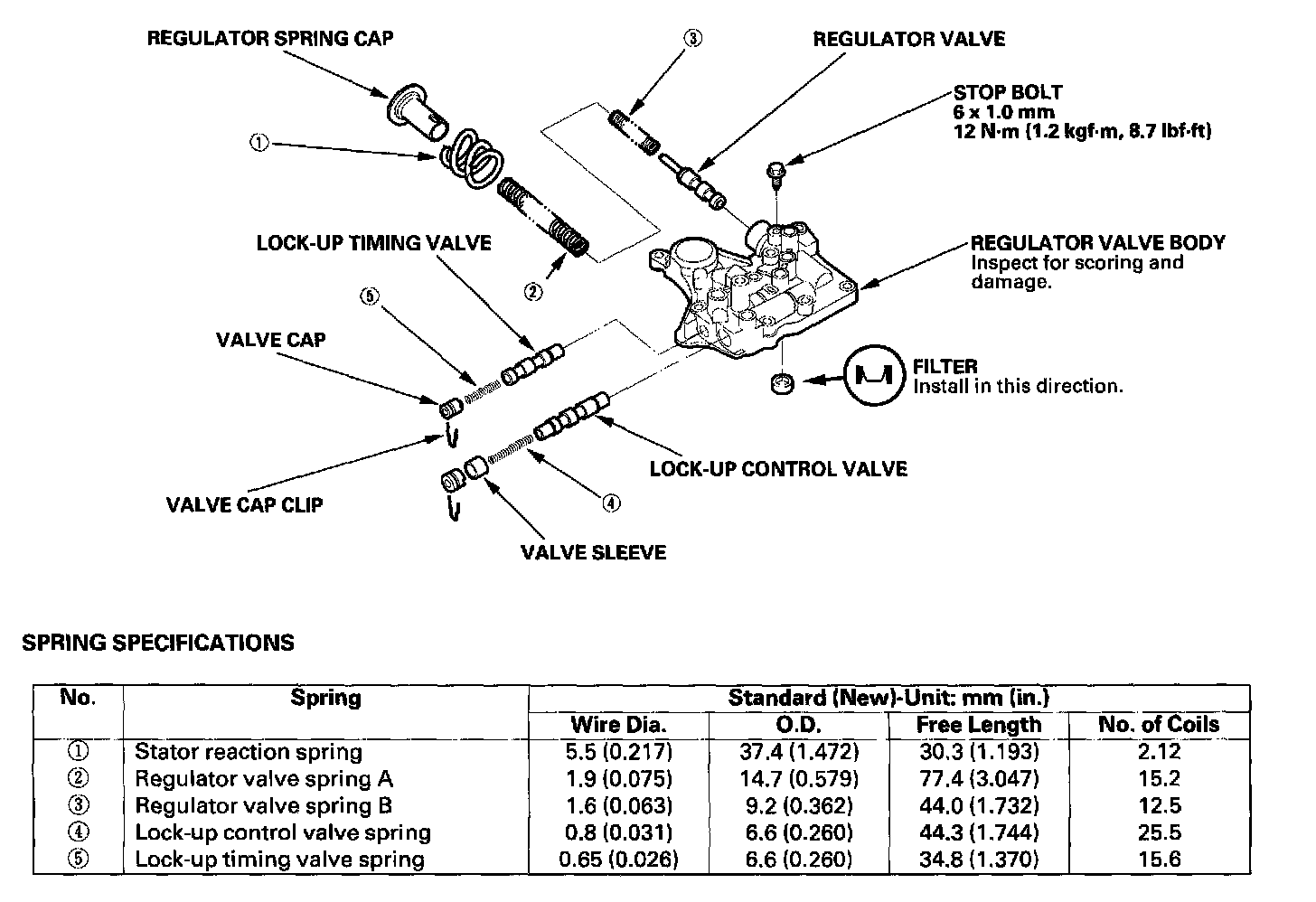

Regulator Valve Body, Valves

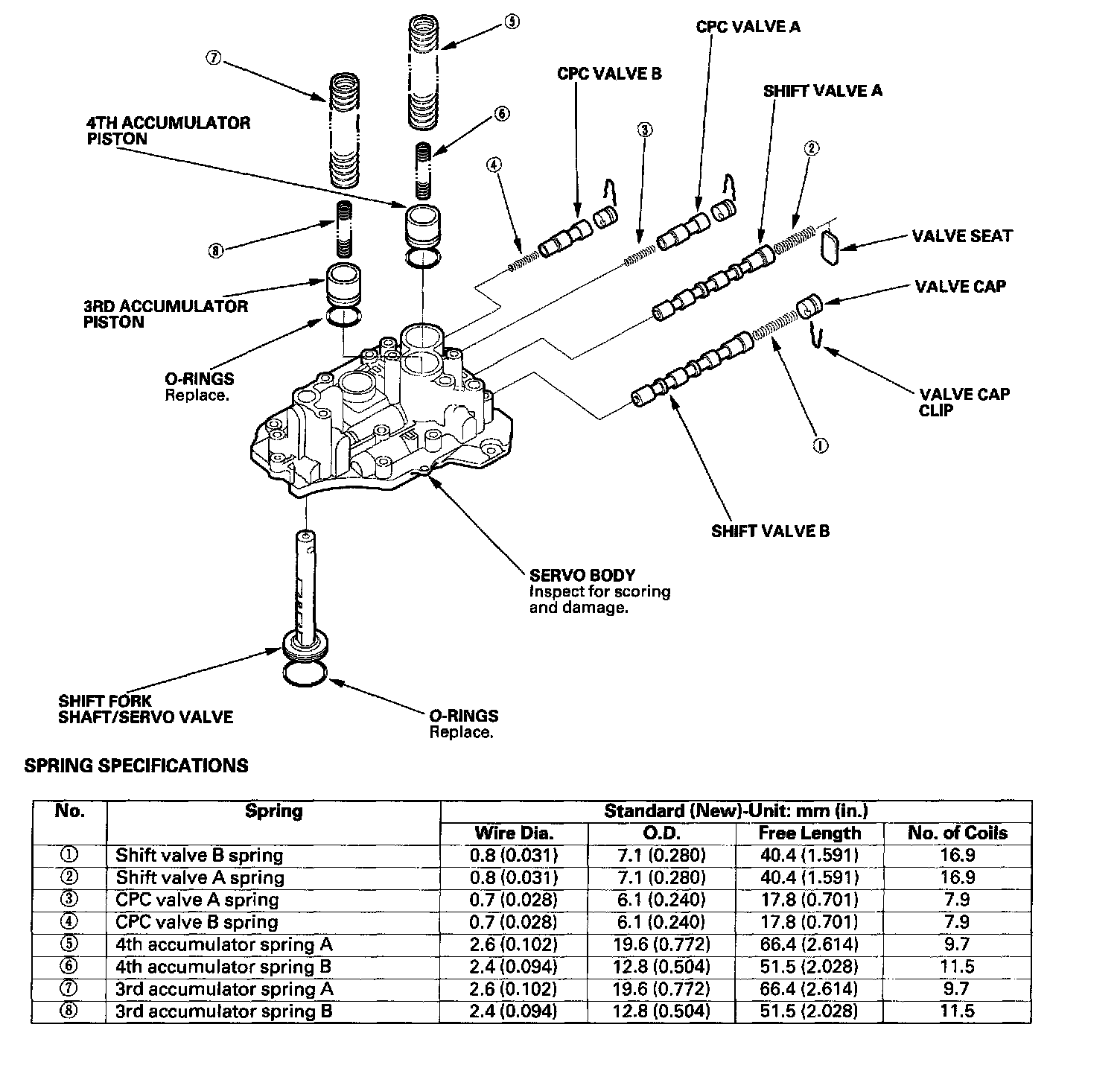

Servo Body, Valves

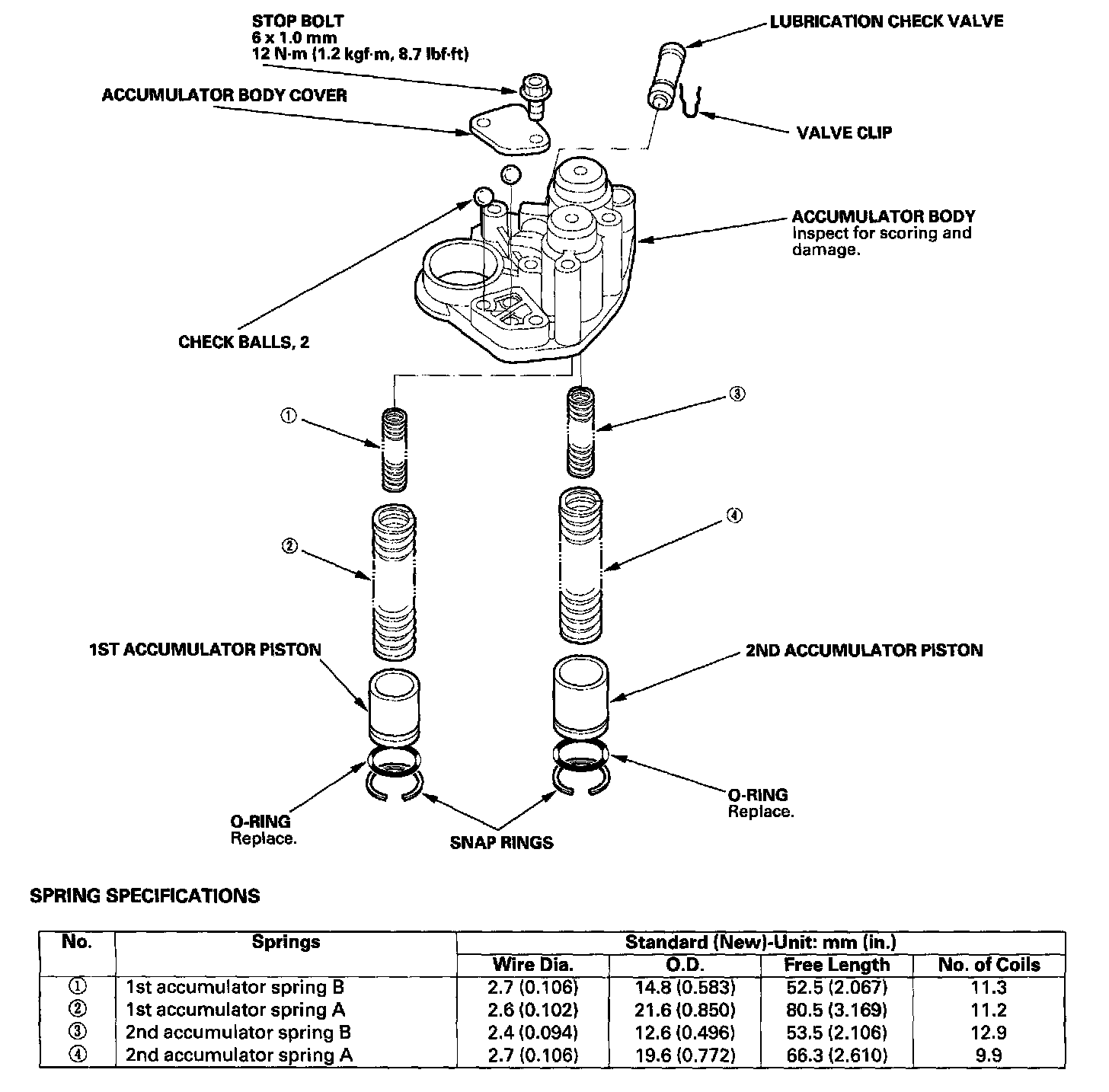

Accumulator Body, Valves
End Cover and Idler Gears Removal
Housing and Shaft Assemblies Removal
Valve Bodies and ATF Strainer Removal
Main Valve Body, Valves / Sectional View
Regulator Valve Body, Valves
Servo Body, Valves
Accumulator Body, Valves
