NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the front bumper and the body.

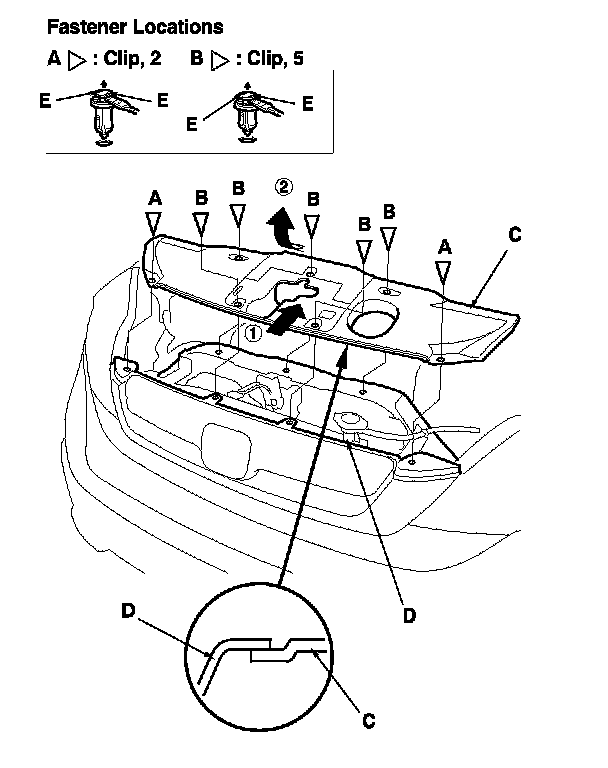

1. Remove the clips (A, B) by carefully pulling the front grille cover (C) up, then remove the cover by releasing the front edge of the cover from the grille (D). Take care not to scratch the body.
NOTE: To remove the clips, pry the inner clip up at the edge near the line (E) on its head.

2. Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips and the hooks into place securely.
