Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda Truck
>>
2009
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

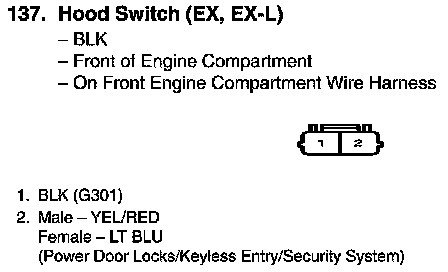

View 137 Hood Switch Connector View
View 137 Hood Switch Connector View
