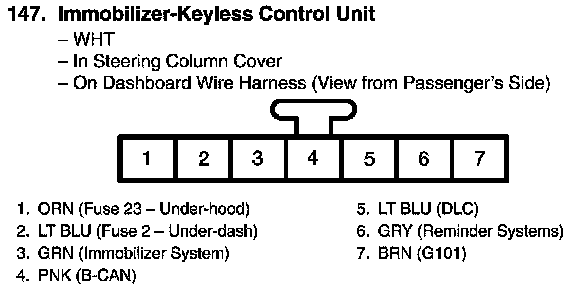

View 147 Immobilizer-Keyless Control Unit Connector View
View 147 Immobilizer-Keyless Control Unit Connector View
