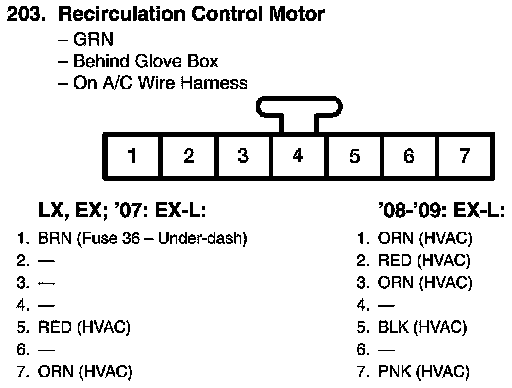

View 203 Recirculation Control Motor Connector View
View 203 Recirculation Control Motor Connector View
