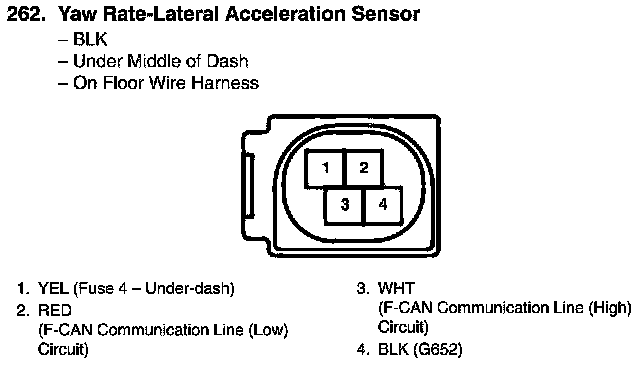

View 262 Yaw Rate-Lateral Acceleration Sensor Connector View
View 262 Yaw Rate-Lateral Acceleration Sensor Connector View
