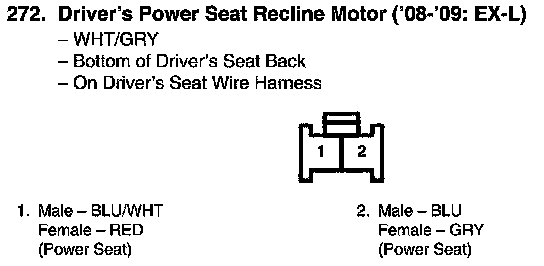

View 272 Driver's Power Seat Recline Motor Connector View
View 272 Driver's Power Seat Recline Motor Connector View
