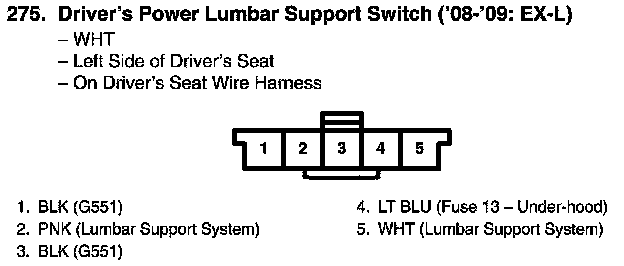

View 275 Driver's Power Lumbar Support Switch Connector View
View 275 Driver's Power Lumbar Support Switch Connector View
