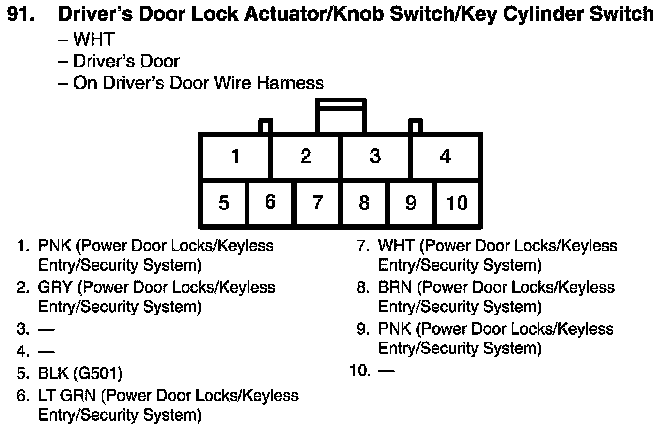

View 91 Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View
View 91 Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View
