CMP Sensor B Replacement
CMP Sensor B Replacement
1. Remove the EGR valve. EGR Valve Replacement

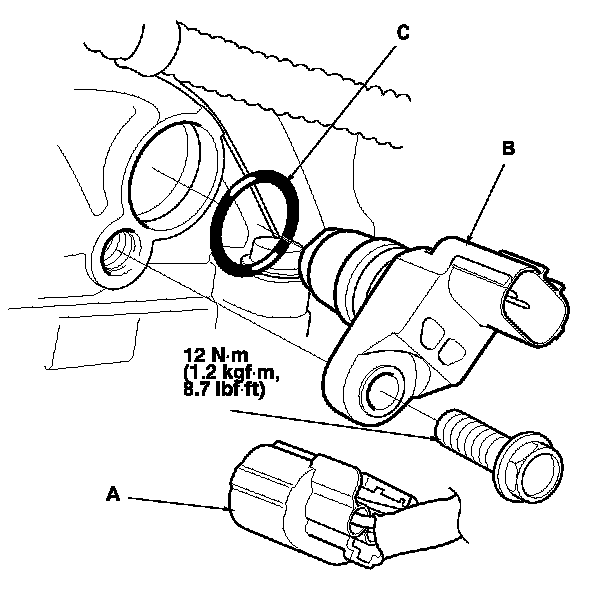

2. Disconnect the CMP sensor B connector (A).
3. Remove CMP sensor B (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
CMP Sensor B Replacement
1. Remove the EGR valve. EGR Valve Replacement
2. Disconnect the CMP sensor B connector (A).
3. Remove CMP sensor B (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
