Catalytic Converter: Service and Repair

Catalytic Converter Removal/Installation

1. Raise the vehicle on a lift.

2. Remove the A/F sensor (Sensor 1). A/F Sensor Replacement

3. Remove the secondary HO2S (Sensor 2). Secondary HO2S Replacement

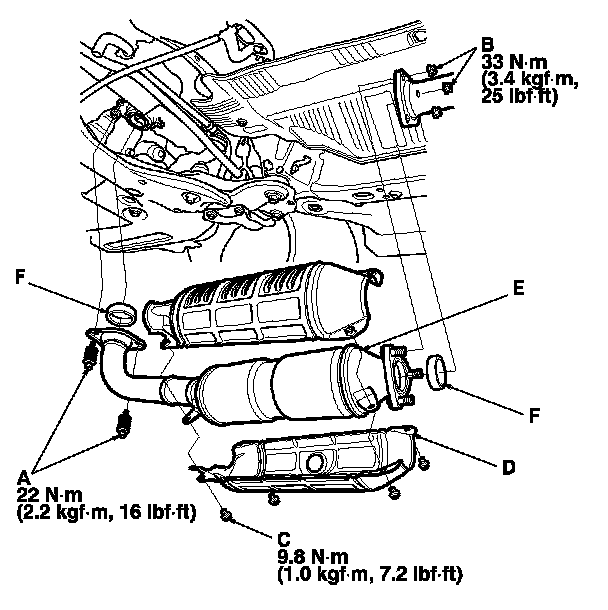

4. Remove the bolts (A), and the nuts (B).

5. Remove the bolts (C), and the covers (D).

6. Remove the TWC (E).

7. Install the parts in the reverse order of removal with new gaskets (F).
