Tightening Torques and Sequences

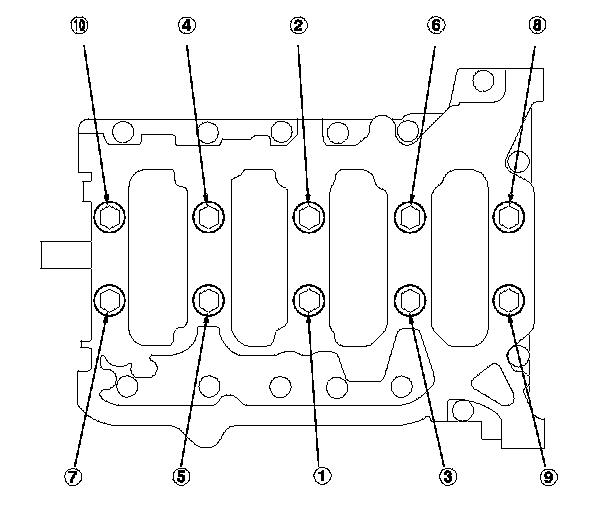

Main Caps

Torque 29 N-m (3.0 kgf-m, 22 lbf-ft)

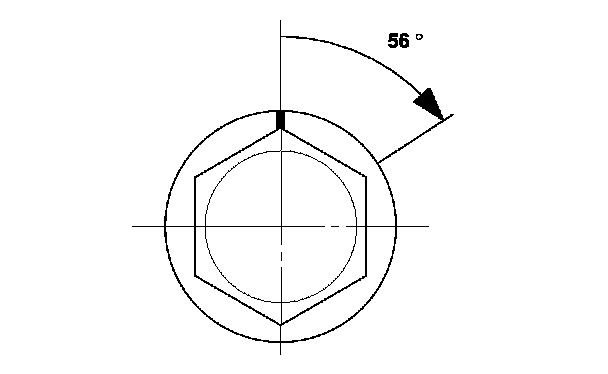

Tighten bearing cap bolts additional 56°.

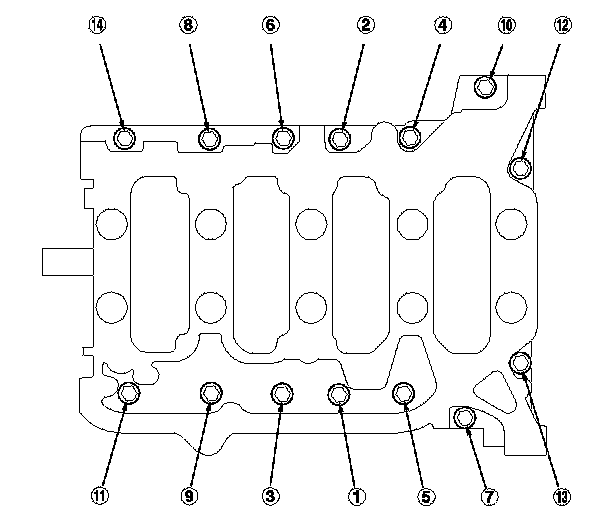

Tighten the 8 mm bolts 22 N-m (2.2 kgf-m, 16 lbf-ft).






Main Bearing Selection

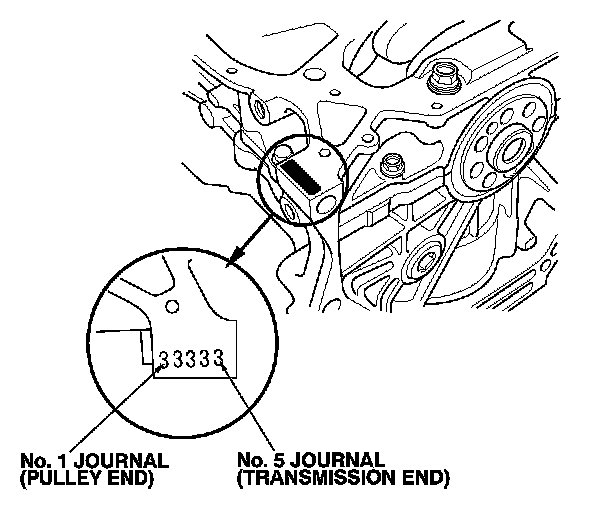

Crankshaft Bore Code Location

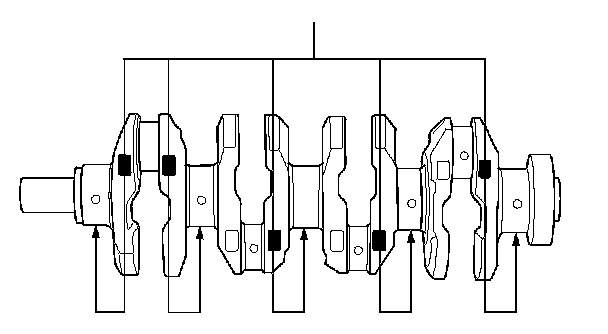

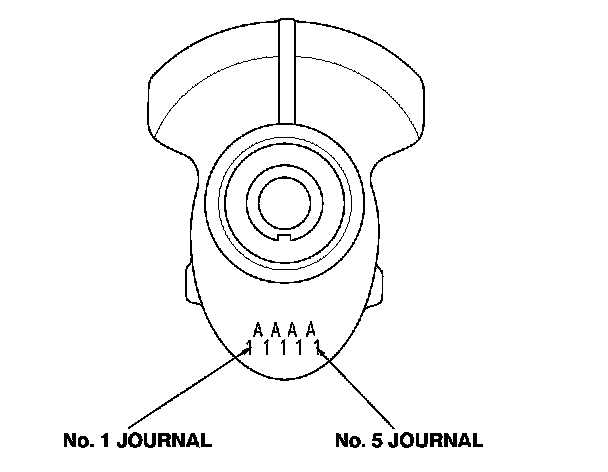

Main Journal Code Location

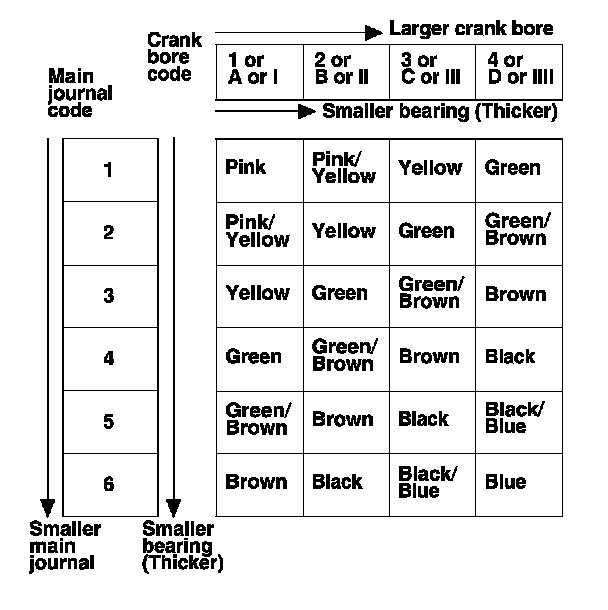

Replacement Bearing Table






Connecting Rod Caps

Torque 20 N-m (2.0 kgf-m, 14 lbf-ft)

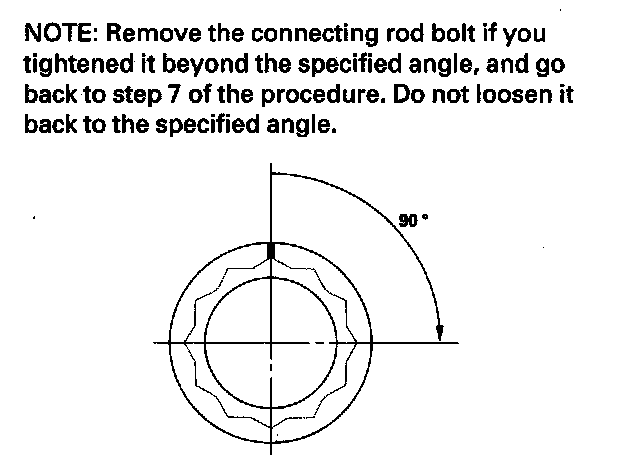

Tighten additional 90°.

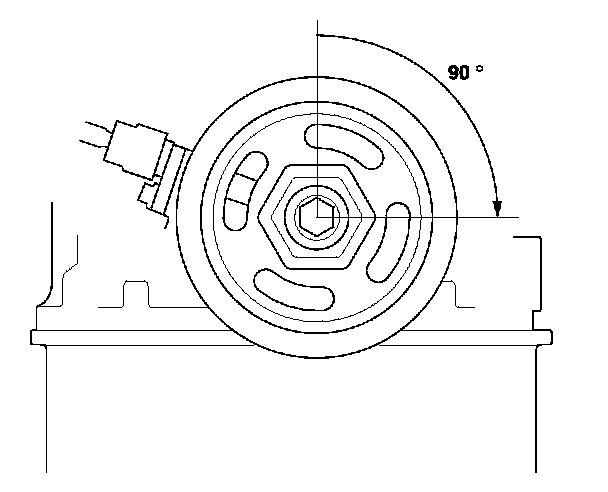

Crankshaft Pulley

Torque 49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten additional 90°.






Flex Plate

Tighten in a crisscross pattern in at least two steps

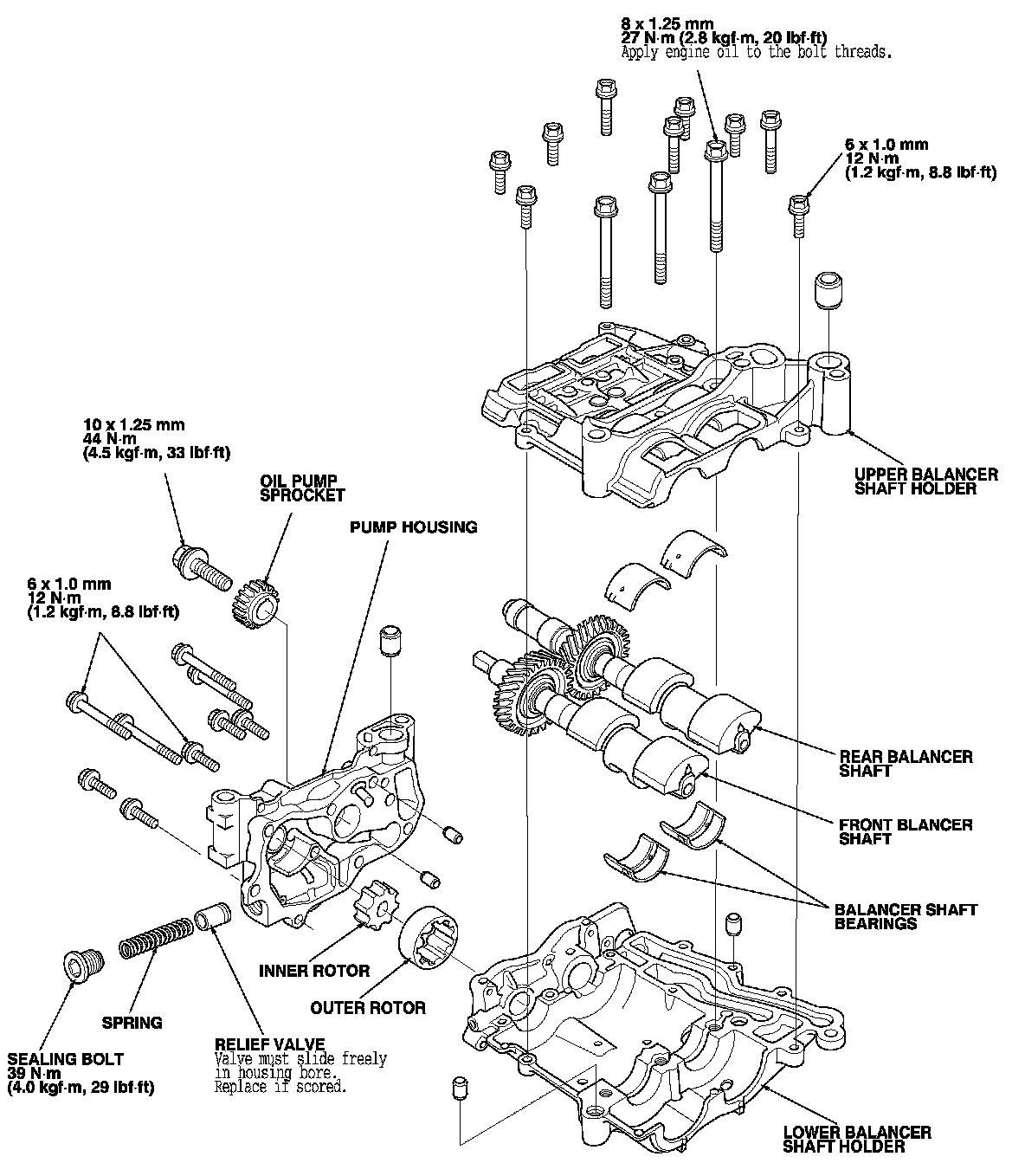

Oil Pump






Water Pump
