Tightening Torques and Sequences

Cylinder Head

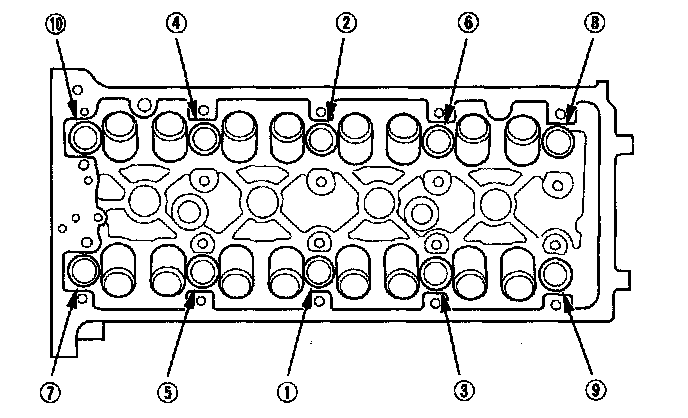

Torque in sequence 39 Nm (4.0 kgf-m, 29 lbf-ft).






After torquing, tighten all cylinder head bolts in two steps (90° per step). If you are using a new cylinder head bolt, tighten the bolt an extra 90°.






Measure the diameter of each cylinder head bolt at point A and point B.






If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.


Intake Manifold

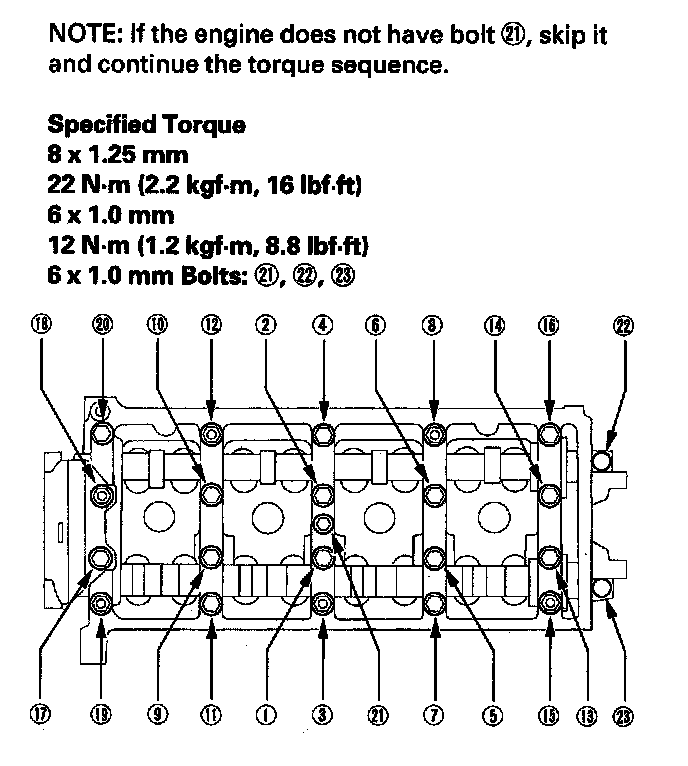

Camshaft Caps

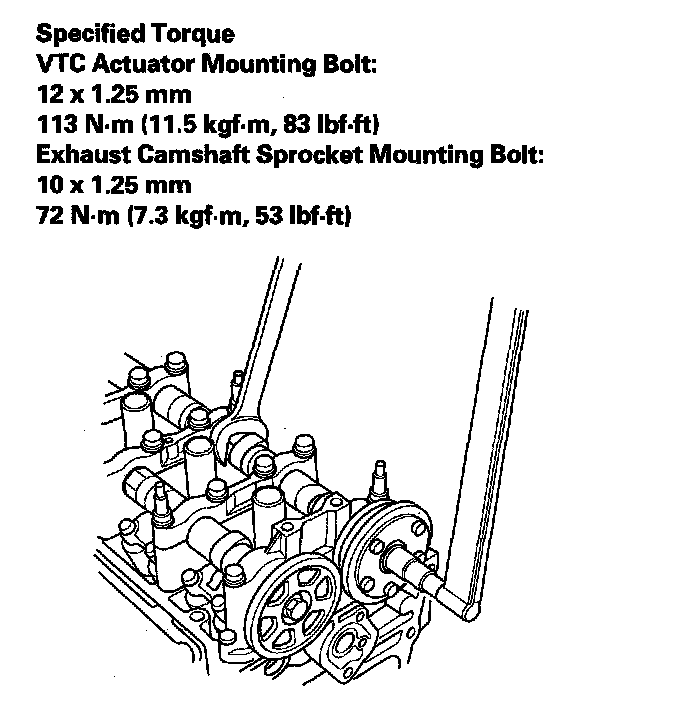

Camshaft Gear/sprocket






Crankshaft Pulley

Torque 49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten additional 90°.






Exhaust Manifold
