Transmission Mode Switch: Service and Repair

D3 Switch Replacement

NOTE:

- Refer to the Shift Lever Disassembly and Reassembly A/T Shift Lever Disassembly/Reassembly as needed during the following procedures.

- Make sure not to get any silicone grease to the terminal part of the connectors and switches when applying silicone grease, if you have silicone grease on your hand or glove.

1. Remove the shift lever. A/T Shift Lever Removal

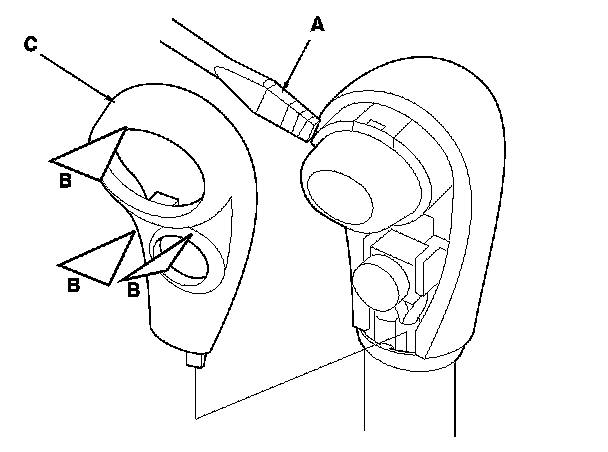

2. Wrap the end of a flat-tip screwdriver (A) with tape, pry the shift lever knob cover locks (B), and remove the shift lever knob cover (C).

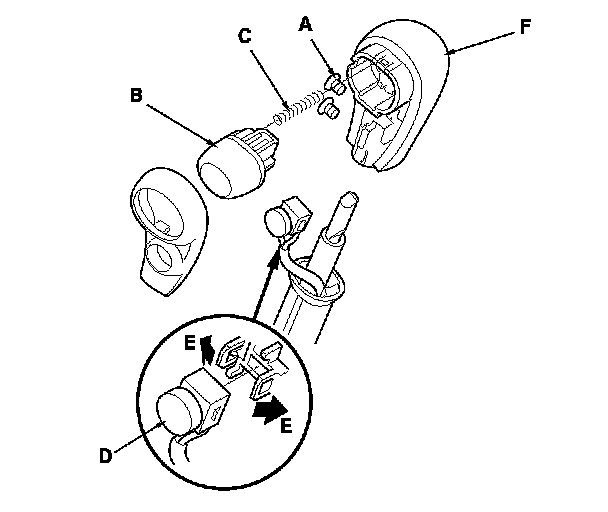

3. Remove the screws (A), the shift lever button (B), and the spring (C).

4. Remove the D3 switch (D) by expanding its locks (E) from the shift lever knob, and remove the shift lever knob (F).

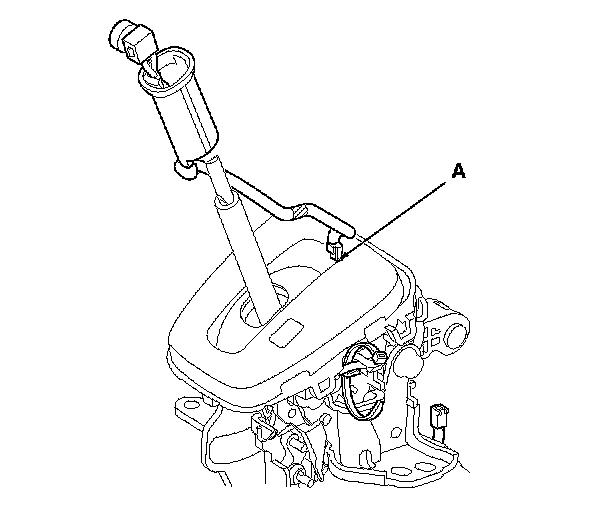

5. Remove the harness band, and disconnect the D3 switch 2P connector (A).

6. Remove the D3 switch and the shift lever ring.

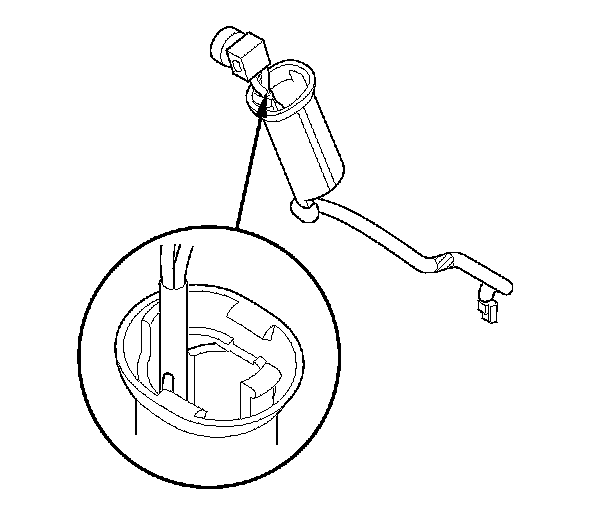

7. Replace the D3 switch, and install the D3 switch harness through the shift lever ring.

8. Install the shift lever ring over the shift lever.

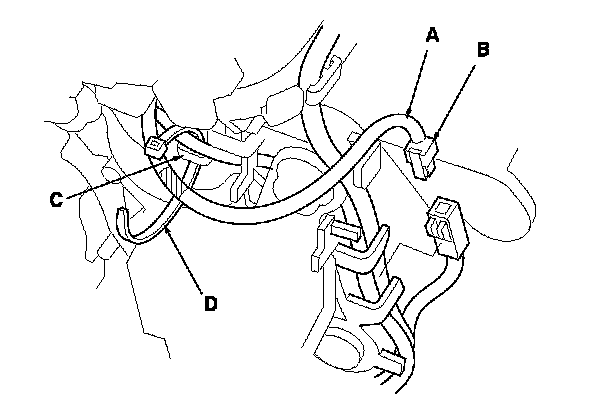

9. Route the D3 switch harness (A), connect the D3 switch 2P connector (B), and install the connector in the holder.

10. Tie the harnesses of the D3 switch and the park pin switch at the guide (C) with the harness wire tie (D).

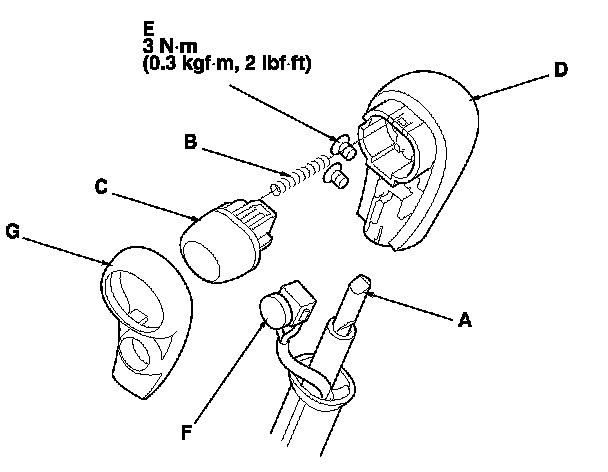

11. Apply silicone grease to the top of the shift lever rod (A), to the shift lever button spring (B), and to the area of the shift lever button (C) connected with the shift lever rod. Keep the connector terminals free of silicone grease.

12. Install the shift lever button spring and the button in the shift lever knob (D), and install the shift lever knob over the shift lever.

13. Apply non-hardening thread lock sealant to the screw threads, and secure the shift lever knob with the screws (E).

14. Install the D3 switch (F) and the shift lever knob cover (G) on the shift lever knob.

15. Install the shift lever. A/T Shift Lever Installation
