Front Inner Fender Replacement

Front Inner Fender Replacement

NOTE: Take care not to scratch the body.

1. Remove the front wheel arch protector, as needed.

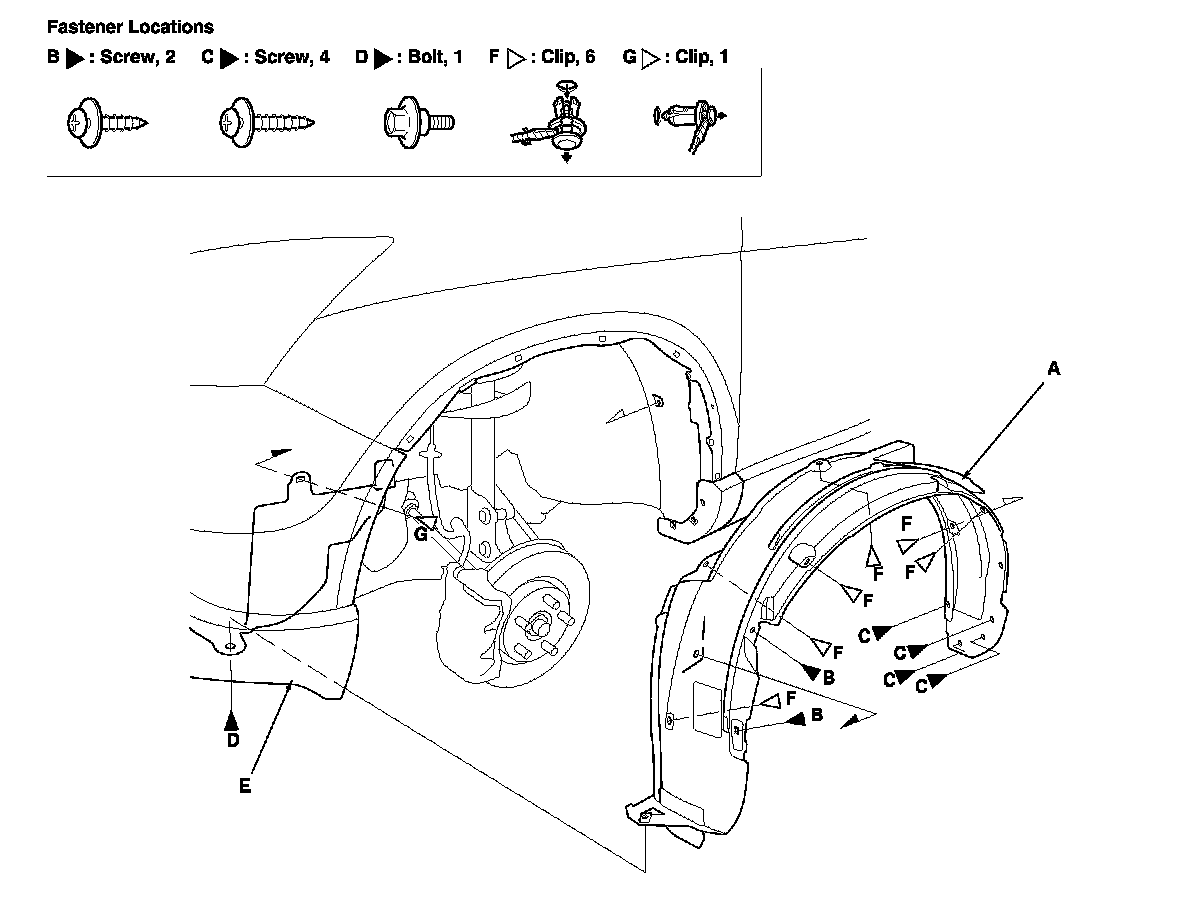

2. Remove the front inner fender (A).
-1 Remove the screws (B, C), and remove the bolt (D) securing the front bumper (E) and the front inner fender.
-2 Remove the clips (F, G) securing the front inner fender (and the splash shield) on the body.

3. Install the inner fender in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
