Door Lock Switch Test

Door Lock Switch Test

Driver's Door

NOTE: The driver's door lock switch is built into the power window master switch.

1. Remove the power window master switch and disconnect its connector. Service and Repair

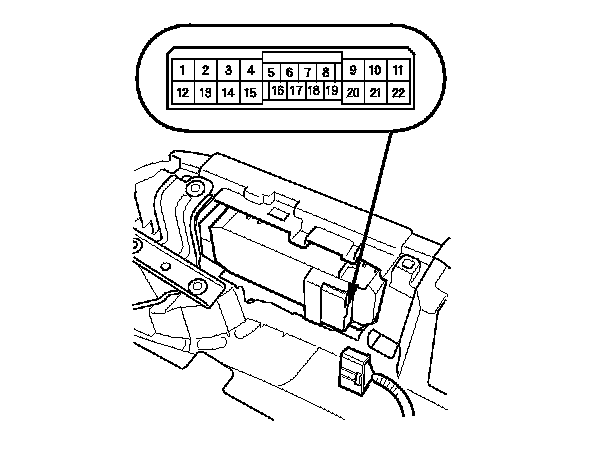

2. Check for continuity between the power window master switch 22P connector terminals.
- There should be continuity between terminals No. 17 and No. 12 when the door lock switch is in the LOCK position.

- There should be no continuity between terminals No. 17 and No. 12 when the door lock switch is in the UNLOCK position.

- There should be continuity between terminals No. 19 and No. 12 when the door lock switch is in the UNLOCK position.

- There should be no continuity between terminals No. 19 and No. 12 when the door lock switch is in the LOCK position.

3. If the continuity is not as specified, replace the power window master switch. Service and Repair






Front Passenger's Door

NOTE: The front passenger's door lock switch is built into the front passenger's power window switch.

1. Remove the front passenger's power window switch. Service and Repair
NOTE: The illustration shows the front passenger's door.

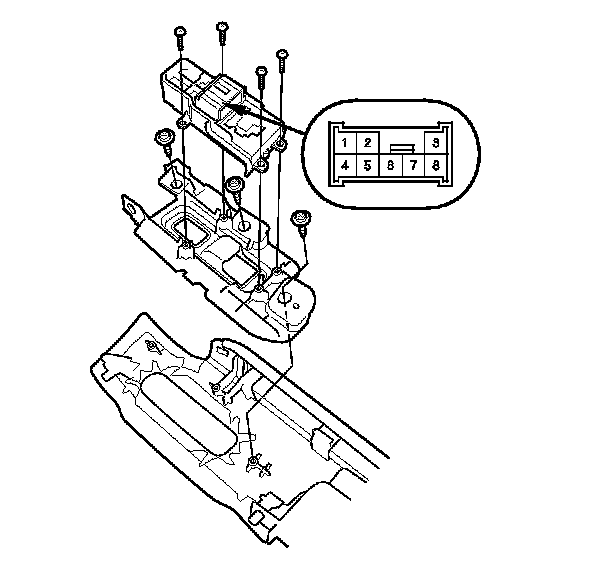

2. Check for continuity between the front passenger's power window switch 8P connector terminals.
- There should be continuity between terminals No. 1 and No. 2 when the door lock switch is in the LOCK position.

- There should be no continuity between terminals No. 1 and No. 2 when the door lock switch is in the UNLOCK position.

- There should be continuity between terminals No. 2 and No. 6 when the door lock switch is in the UNLOCK position.

- There should be no continuity between terminals No. 2 and No. 6 when the door lock switch is in the LOCK position.

3. If the continuity is not as specified, replace the front passenger's power window switch. Service and Repair
